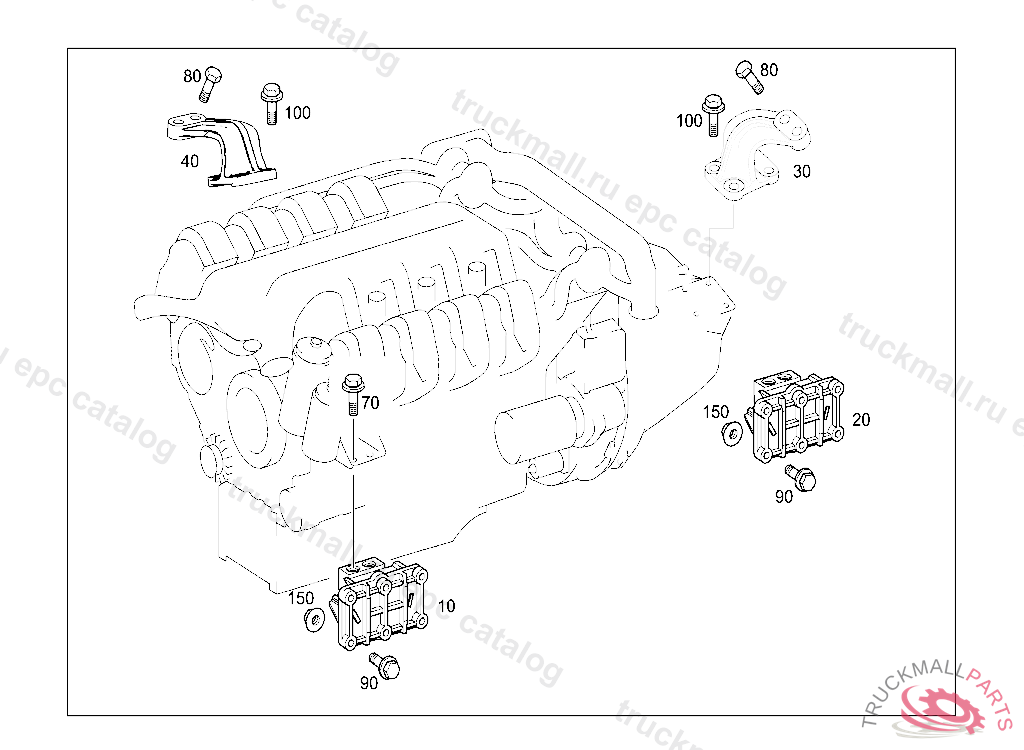

Поз.
Артикул
Описание
10
10
RUBBER MOUNTING ENGINE REAR SUSPENSION
10
20
20
20
30
SUPPORTING ARM ENGINE LEFT REAR MOUNTING
30
SUPPORTING ARM ENGINE RIGHT REAR MOUNTING
70
HEXAGON HEAD BOLT ENGINE MOUNTING TO CONSOLE M18X1.5X55
80
HEXAGON HEAD BOLT ENGINE MOUNTING TO CONSOLE M18X1.5X55
90
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
90
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
90
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
90
HEXAGON HEAD BOLT BRACKET TO FRAME M14X1.5X30
90
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
90
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
100
HEXAGON HEAD BOLT SUPPORTING ARM TO TRANSMISSION CASE
150
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
