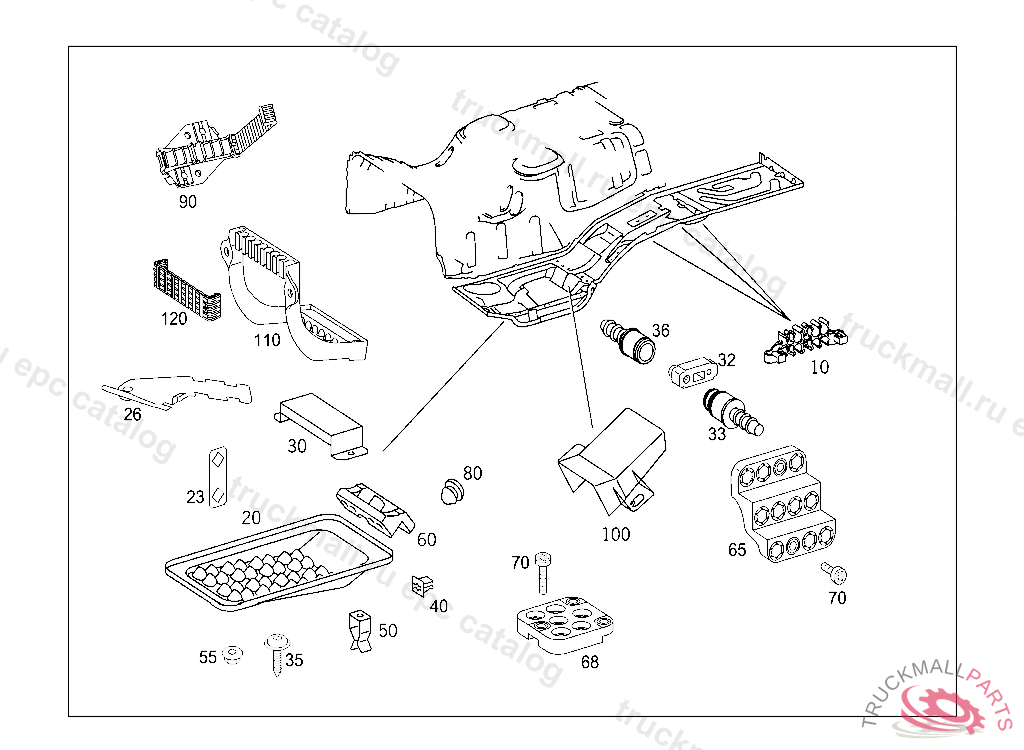

Поз.
Артикул
Описание
20
BRACKET AT CAB FLOOR
26
BRACKET BRACKET TO WINDOW SILL SUPPORT
30
BRACKET ELECTRIC CABLE TO CAB FLOOR, Replaced By: A9415401240
30
BRACKET ELECTRIC CABLE TO CAB FLOOR
32
CLAMPING PIECE DRIVER'S AIR-CUSHIONED SEAT COMPRESSED-AIR LINE
33
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION 7.1 MM / 4 MM
35
SHEET METAL SCREW COVERING TO CAB 4.2X19
36
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION 10.9MM / 4MM
40
TREENAIL FUSE BOX
40
TREENAIL PLUG HOUSING TO FIRE WALL
50
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
50
TREENAIL BRACKET TO FIRE WALL
55
NUT COVERING TO CAB FIRE WALL
55
NUT BRACKET TO PIN
60
PLATE (CONNECTION PLATE) COMPRESSED-AIR-LINE PLUG-CONNECTION
68
PLATE FROM CONNECTION PLATE TO PARKING BRAKE VALVE
70
SCREW ELECTRICAL COMPARTMENT
70
SCREW CLAMP MOUNTING M 6X16
70
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
80
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
90
BRACKET COMPRESSED-AIR LINE ON FLOOR OF CAB
100
BRACKET ON CAB FLOOR
100
BRACKET ON CAB FLOOR
110
BRACKET IN CAB
120
BRACKET AT BRACKET
