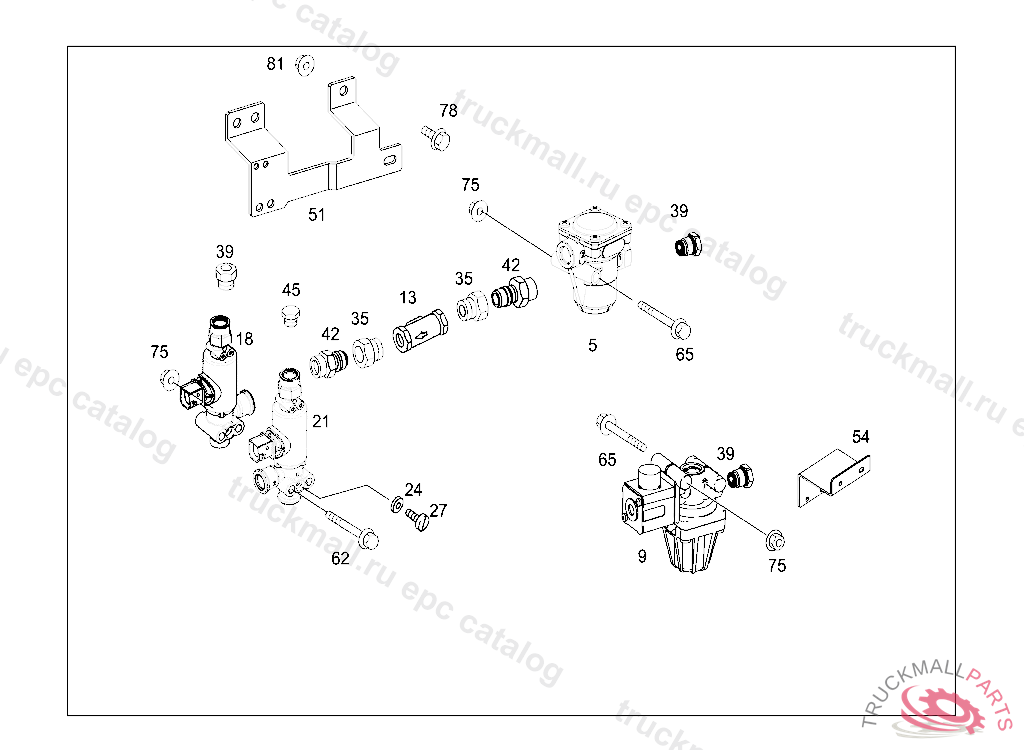

Поз.
Артикул
Описание
5
VALVE PRESSURE LIMIT VALVE
9
VALVE PRESSURE LIMIT VALVE ADBLUE, 30.03,V 224921
13
VALVE (CHECK VALVE)
13
NON-RETURN VALVE CHECK VALVE
13
VALVE (CHECK VALVE)
18
3-2-WAY PNEUMATIC VALVE 3/2-WAY VALVE ADBLUE
21
3-2-WAY PNEUMATIC VALVE 3/2-WAY VALVE ADBLUE
24
SEAL RING TO LOCK SOLENOID VALVE 7X12MM
27
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
35
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
39
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
42
SCREW-IN FITTING
45
SCREW PLUG SOLENOID VALVE M16
51
BRACKET VALVE TO FRAME
54
62
HEXAGON HEAD BOLT. SCREW 3/2-WAY VALVE TO BRACKET M 8X100
65
SCREW , Replaced By: N910143008010
75
NUT HORN TO BRACKET M8
78
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
81
NUT SUPPORT TO FRAME
