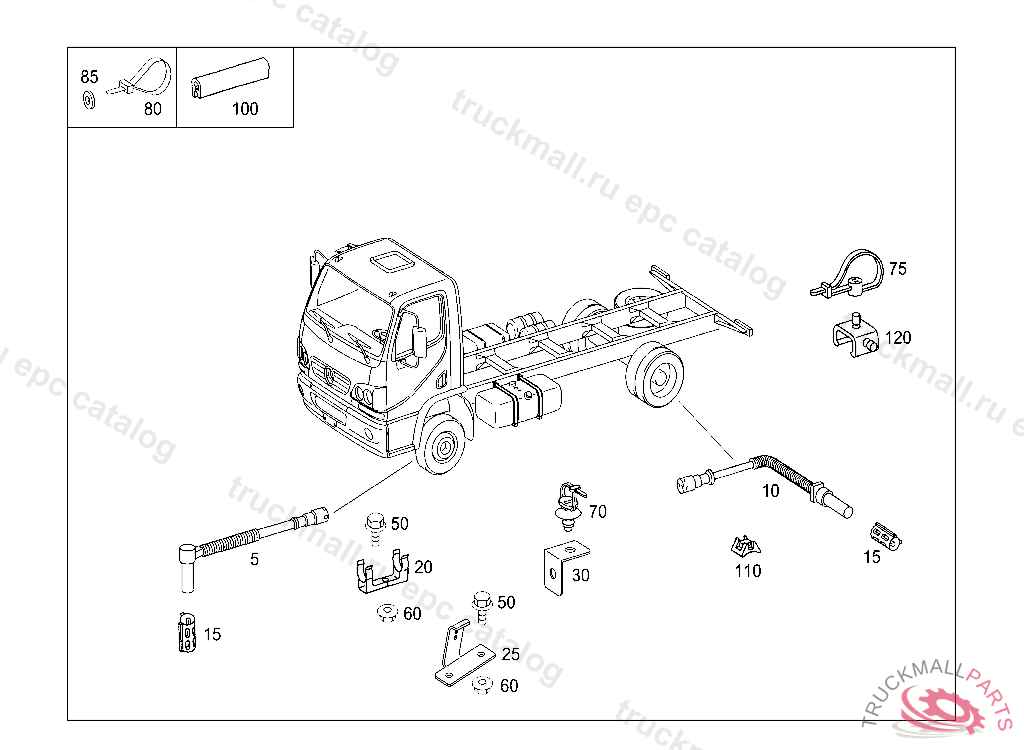

Поз.
Артикул
Описание
5
SENDER UNIT DISC BRAKE FRONT AXLE LEFT AND RIGHT WABCO
10
SENDER UNIT REAR AXLE,LEFT WABCO, 3000 MM
15
CLAMPING SLEEVE SENSOR TO STEERING KNUCKLE
20
BRACKET SENSOR LINE MOUNTING
25
BRACKET
30
BRACKET AT TRANSMISSION
50
HEXAGON HEAD BOLT. SCREW RELAY TO APPARATUS PLATE M 5X20
50
SCREW SHIFT LEVER TO BRACKET M8X30
60
NUT ENGINE MOUNTING M8
60
NUT RELAY TO BRACKET M5
70
CABLE STRAP LINE MOUNTING 260X3.3MM
75
LOOM TIE BRAKE CYLINDER
80
LOOM TIE LINE MOUNTING
80
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
80
LOOM TIE LINE TO BRACKET 508 MM
80
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
85
WASHER BRACKET TO LEFT SIDE MEMBER
100
EDGE GUARD SECTION AT LEFT SIDE MEMBER 85 MM
110
REINFORCEMENT SPEED SENSOR TO REAR AXLE
120
CLIP SENSOR CABLE
