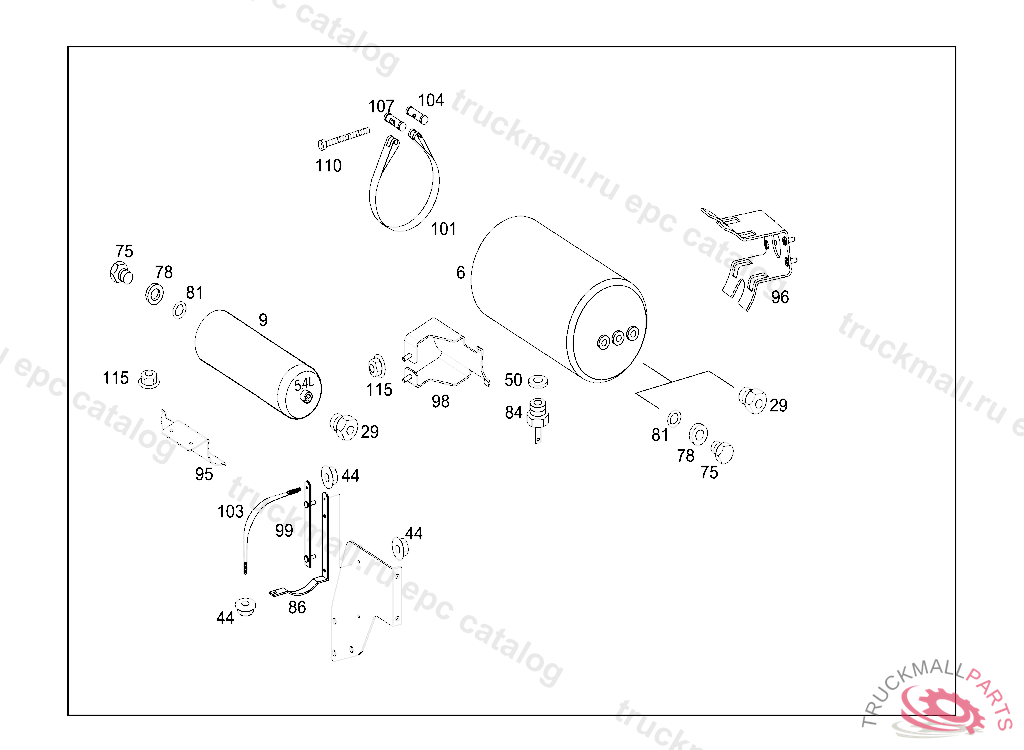

Поз.
Артикул
Описание
6
9
RESERVOIR AIR RESERVOIR IV 5,4 L
9
RESERVOIR AIR RESERVOIR III 5L
29
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
44
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
75
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
78
THRUST RING CHECK VALVE TO AIR RESERVOIR
81
O-RING CHECK VALVE TO AIR RESERVOIR
84
VALVE
84
VALVE. DRAIN VALVE DRAIN
84
VALVE
84
VALVE DRAIN, Replaced By: A0004322107
86
BRACKETTO A3684203186
98
98
BRACKET AIR RESERVOIR TO FRAME
99
BRACKET
101
STRAP AIR RESERVOIR TO BRACKET 468 MM / O 144 MM
101
STRAP AIR RESERVOIR TO BRACKET 778 MM / O 246 MM
103
STRAP AIR RESERVOIR III
104
SCREW AIR RESERVOIR TO BRACKET
107
SCREW AIR RESERVOIR TO BRACKET
110
SCREW AIR RESERVOIR TO BRACKET
115
HEXAGON NUT. NUT , Replaced By: N913023008002
115
NUT , Replaced By: N913023010002
