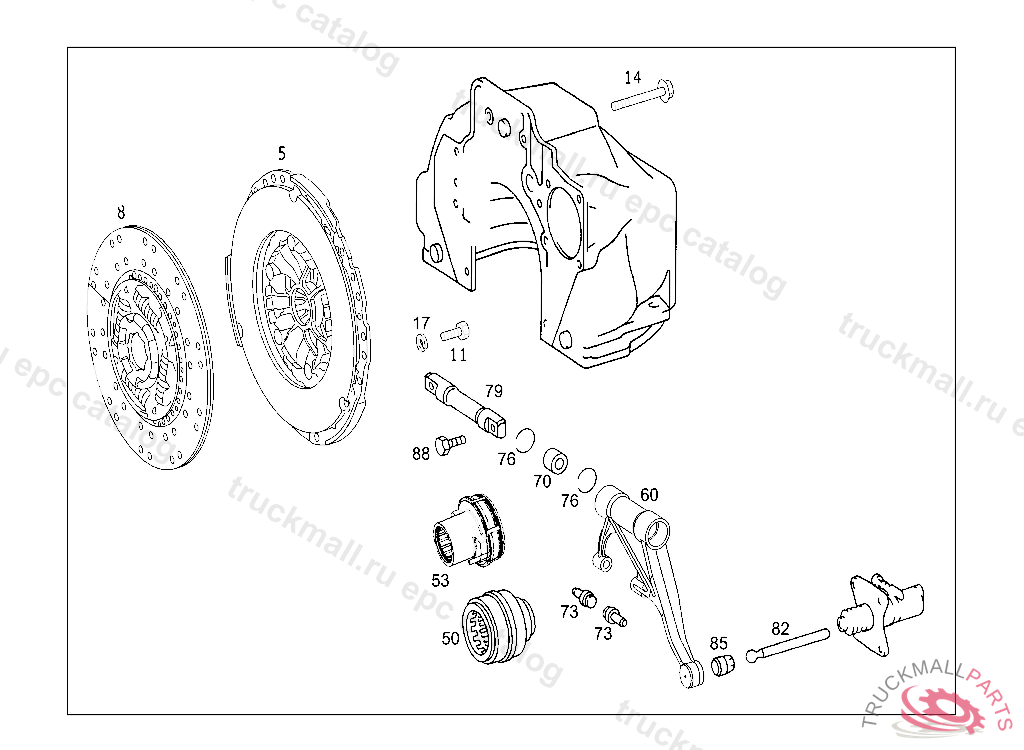

LO 916 /45 - 979.276 - 25 CLUTCH
Поз.
Артикул
Описание
5
CLUTCH PRESSURE PLATE ONLY USE PARTS OF THE SAME MAKE SACHS
5
5
8
8
11
HEXAGON HEAD BOLT. SCREW CLUTCH PRESSURE PLATE TO FLYWHEEL M 8X1,25X60
14
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
14
SCREW-AND-WASHER ASSEMBLY TRANSMISSION TO ENGINEM10X45
50
RELEASE BEARING
60
RELEASE LEVER
70
BUSHING FRONT AND REAR
73
ROLLER RELEASE LEVER,K 281332
76
SNAP RING FRONT AND REAR
79
SPINDLE RELEASE LEVER
82
PIN RELEASE LEVER
85
BEARING TOP
88
HEXALOBULAR BOLT BRACKET AND DISTRIBUTOR TO REAR AXLE I M 10X55
