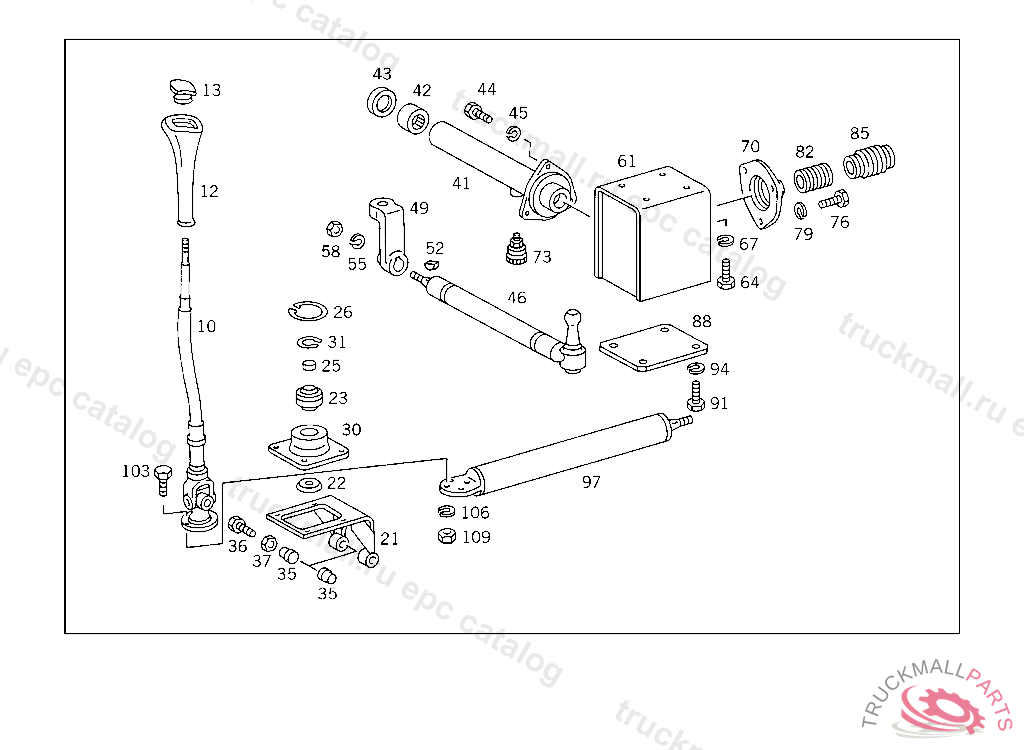

Поз.
Артикул
Описание
30
NEEDLE BEARING INSIDE AND OUTSIDE
41
PIPE TRANSVERSE
42
NEEDLE BEARING , Replaced By: A0049813810
43
SEAL RING
44
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
SCREW , Replaced By: N304017008016
45
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
46
SHAFT TRANSVERSE
46
SHAFT , Replaced By: A3002600038
49
LEVER (INTERMEDIATE LEVER)
52
WOODRUFF KEY FLANGE TO SHIFTING TUBE
55
LOCK WASHER FITTING TO BRACKET
58
NUT STRAP TO SUPPORT
61
SHIFT CASE SHIFTING TRANSFER
61
SHIFT CASE , Replaced By: A3002600072
64
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
64
SCREW , Replaced By: N304017008016
67
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
70
FLANGE SHIFT CASE TO TRANSMISSION
73
GREASE CUP RELEASE BEARING LUBRICATION, 4 117172
76
SCREW PIPE CLAMP
76
SCREW , Replaced By: N304017008021
79
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
82
BUSHING SHIFTING ROD TO BRACKET
82
BUSHING , Replaced By: A3572680050
85
BOOT SHIFTING TUBE
85
BOOT SHIFTING TUBE
88
COVER SHIFT CASE,042101
88
COVER SHIFT CASE
91
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
91
SCREW , Replaced By: N304017008016
94
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
