Поз.
Артикул
Описание

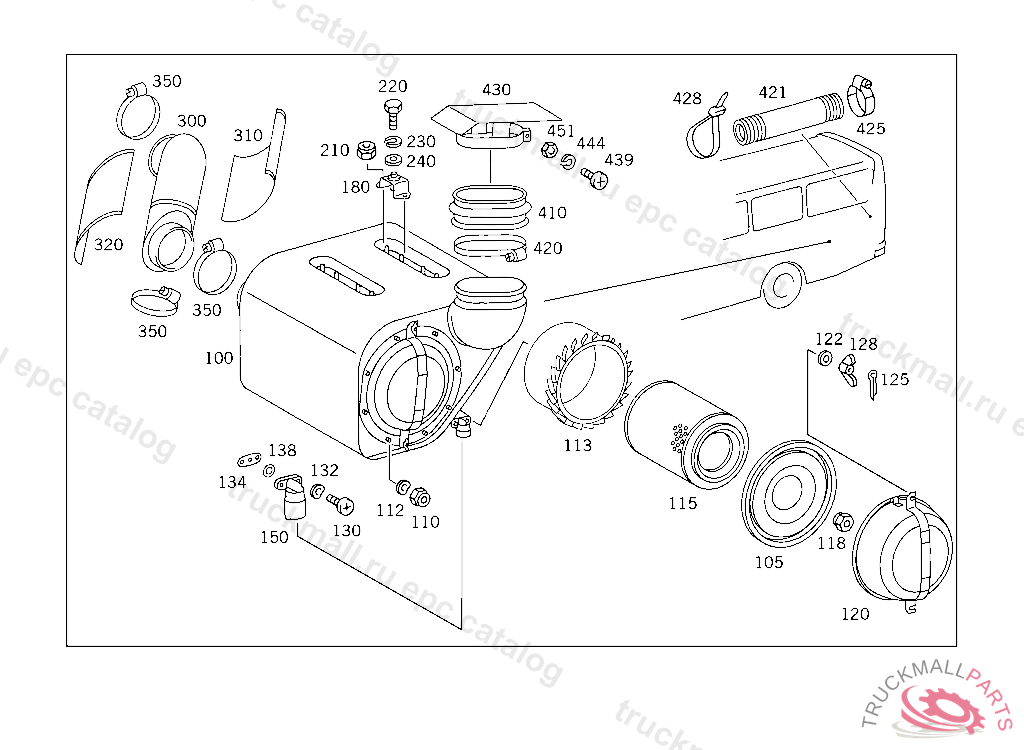

100
AIR CLEANER , Replaced By: A0110947002
100
AIR CLEANERMANN+HUMMEL
105
COVER LOWER PART MANN & HUMMEL
110
NUT , Replaced By: N913004008001
112
SPRING WASHER , Replaced By: N000137008212
113
AIR BAFFLE AIR CLEANER
115
FILTER ELEMENT AIR CLEANER
118
NUT
120
FILTER BOWL COVER TO 008 094 92 02,011 094 70 02
122
WASHER , Replaced By: N000125010532
122
WASHER RADIATOR TO RUBBER MOUNTING
125
COTTER PIN CYLINDER TO BRACKET
128
NUTTO 000 466 38 02
130
SCREW SHIFT CASE TO SLOTTED GATE
132
SPRING WASHER LICENSE PLATE TO BRACKET
134
GASKET
138
WASHER FELT
150
MAINTENANCE INDICATOR AIR CLEANER
150
MAINTENANCE INDICATOR
180
BUFFER , Replaced By: A0009885511
180
BUFFER AIR CLEANER
210
NUT , Replaced By: N913004008001
220
SCREW , Replaced By: N304017008016
220
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
230
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
240
WASHER , Replaced By: N000125008443
240
WASHER EXHAUST MUFFLER TO STRAP
300
AIR INTAKE PIPE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
310
SHELL PLATE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
320
SHELL PLATE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
350
CLAMP , Replaced By: N000000000678
350
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
410
HOSE AIR INTAKE
420
CLAMP AIR INTAKE
421
HOSE FROM INTAKE ELBOW TO COOLING AIR INTAKE CHAMBER
425
CLAMP , Replaced By: N000000000673
425
CLAMP HOSE TO RETARDER 60-80X13 MM
428
LOOM TIE LINE MOUNTING
430
COVER AIR INTAKE,000821
439
SCREW , Replaced By: A0029903712
444
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
451
NUT BALL PIVOT TO LEVER
999
HOSE , Replaced By: A3025280082
999
CABLE TIE310X5MM
999
GASKETTO 000 094 11 68,345 094 71 68
