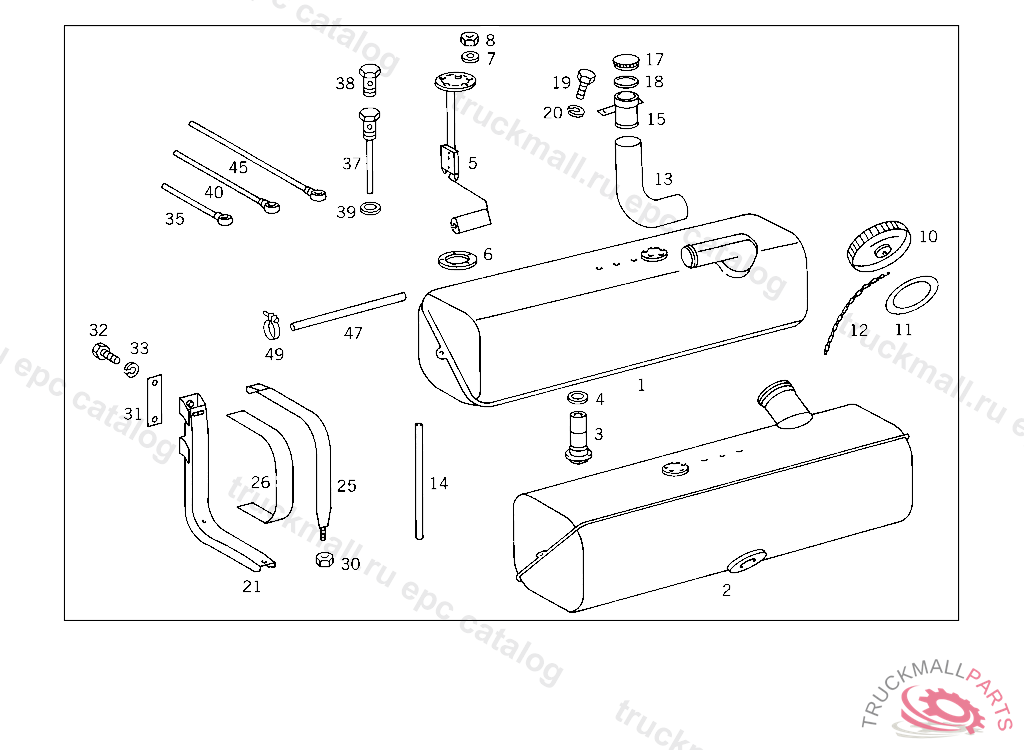

Поз.
Артикул
Описание
1
FUEL TANK
1
FUEL TANK , Replaced By: A3094702801
2
FUEL TANK , Replaced By: A3094701801
2
FUEL TANK
2
FUEL TANK80 L,5 218303
3
FUEL STRAINER FUEL TANK
3
FUEL STRAINER , 703022
3
FUEL STRAINER AT TANK
3
FUEL STRAINER AT TANK
4
SEAL RING FUEL STRAINER SCREEN
5
SENDER UNIT FUEL TANK
6
GASKET SENDER UNIT AND COVER TO FUEL TANK
6
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
7
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
8
NUT TACHOGRAPH TO BRACKET
10
FILLER CAP
10
FILLER CAP , Replaced By: A3094700005
11
SEAL RING FILLER CAP
12
CHAIN FILLER CAP
13
HOSE FUEL TANK
14
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
14
PLASTIC TUBE , Replaced By: A0089975482
14
HOSE , Replaced By: A0089975582
15
FILLER NECK FUEL TANK, 147164
17
FILLER CAP FUEL TANK
17
FILLER CAP , Replaced By: A0004715130
18
GASKET , Replaced By: A1104710280
18
GASKET
19
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
19
SCREW , Replaced By: N304017008016
20
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
21
SUPPORT CONSOLE TO SIDE MEMBER
25
STRAP FUEL TANK TO SUPPORT
26
RUBBER STRIP SUPPORT TO SIDE MEMBER
30
NUT BRACKET TO SUPPORT AND TO END PIECE
31
SHIM SUPPORT TO SIDE MEMBER
32
SCREW BRACKET TO SIDE MEMBER
32
SCREW , Replaced By: N304017010002
33
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
35
LINE FROM FUEL TANK TO "T" CONNECTION FITTING
37
RISING PIPE , PRIOR TO INSTALLATION,SHORTEN RISING PIPE TO 323 MM IN LENGTH
38
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
39
SEAL RING CONNECTION: 1,4 719029
40
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
40
LINE
40
LINE ORDER BY THE METER 2000 MM
40
LINE FROM FUEL TANK TO "T" CONNECTION FITTING
40
LINE , Replaced By: A3104282301
40
LINE , Replaced By: A3094282201, +001A0004290801, +001A0004295235, +001A1809900066, +002A0009971190
40
LINE , Replaced By: A3094702664, +001A0004290801, +001A0004295235, +002A0009971190
40
LINE , Replaced By: A3094702665, +001A0004290801, +001A0004295235, +002A0009971190
45
LINE , FOR TRUCKS UP TO CHASSIS 176360,FOR BUS UP TO CHASSIS 026054, Replaced By: A3094702665, +001A3104282301, +001A0004295235, +001A1809900066, +002A0009971190
45
LINE , Replaced By: A3094702665, +001A0004290801, +001A0004295235, +002A0009971190
45
LINE ,176360, Replaced By: A3094702665, +001A3104282301, +001A0004295235, +001A1809900066, +002A0009971190
45
LINE , FOR TRUCKS FROM CHASSIS 176361,FOR BUS FROM CHASSIS 026055, Replaced By: A3094702665, +001A0004290801, +001A0004295235, +002A0009971190
45
LINE FROM FUEL TANK TO "T" CONNECTION FITTING
47
HOSE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER 8 X 14 MM, ORDER BY THE METER4 940458
47
LINE , Replaced By: A3094702665, +001A0004295235, +001A3404706165, +002A0009971190
49
LOOM TIE , Replaced By: N916017011000
49
CLAMP , Replaced By: N916017011001
49
CLAMP , Replaced By: N000000000665
49
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
FILLER CAP , Replaced By: A0004715130
999
UNION SCREW ,B 688751
999
FUEL TANK
999
FUEL TANK
999
LINE
999
SUPPORT , Replaced By: A3094701842
999
LINE
999
FUEL TANK , Replaced By: A3144702601
999
LINE
999
FUEL TANK
999
FUEL TANK ,303382
999
SUPPORT CONSOLE TO SIDE MEMBER
999
LINE
999
LINE
999
LINE , FOR TRUCKS UP TO CHASSIS 176360,FOR BUS UP TO CHASSIS 026054, Replaced By: A3094702665, +001A3104282301, +001A0004295235, +001A1809900066, +002A0009971190
999
LINE , Replaced By: A3094702665, +001A0004295235, +001A3404706165, +002A0009971190
999
LINE , Replaced By: A3094702665, +001A0004290801, +001A0004295235, +002A0009971190
999
LINE , Replaced By: A3094702665, +001A0004290801, +001A0004295235, +002A0009971190
999
LINE ,176361-303382, Replaced By: A3104282301, +001A0004290801, +001A0004295235, +001A1809900066, +002A0009971190
999
WASHER ,303382
999
LINE , Replaced By: A3094702665, +001A0004295235, +001A3404705665, +002A0009971190, +001N915001006002
999
LINE , Replaced By: A3094702665, +001A0004295235, +001A3404705665, +002A0009971190, +001N915001006000
999
FUEL TANK , FOR COMPONENT PARTS,SEE SPARE PARTS LIST, Replaced By: A3094705901
999
FUEL TANK
999
LINE
999
LINE FROM FUEL TANK TO "T" CONNECTION FITTING,303382
999
LINE WITH FITTING 3000 MM
999
LINE , Replaced By: A3404706165, +001N915008006402
999
SCREW PLUG RELAY VALVE,CONNECTION "20",RIGHT
999
CLAMP , 009094
999
SEAL CONEB6
999
UNION NUT
