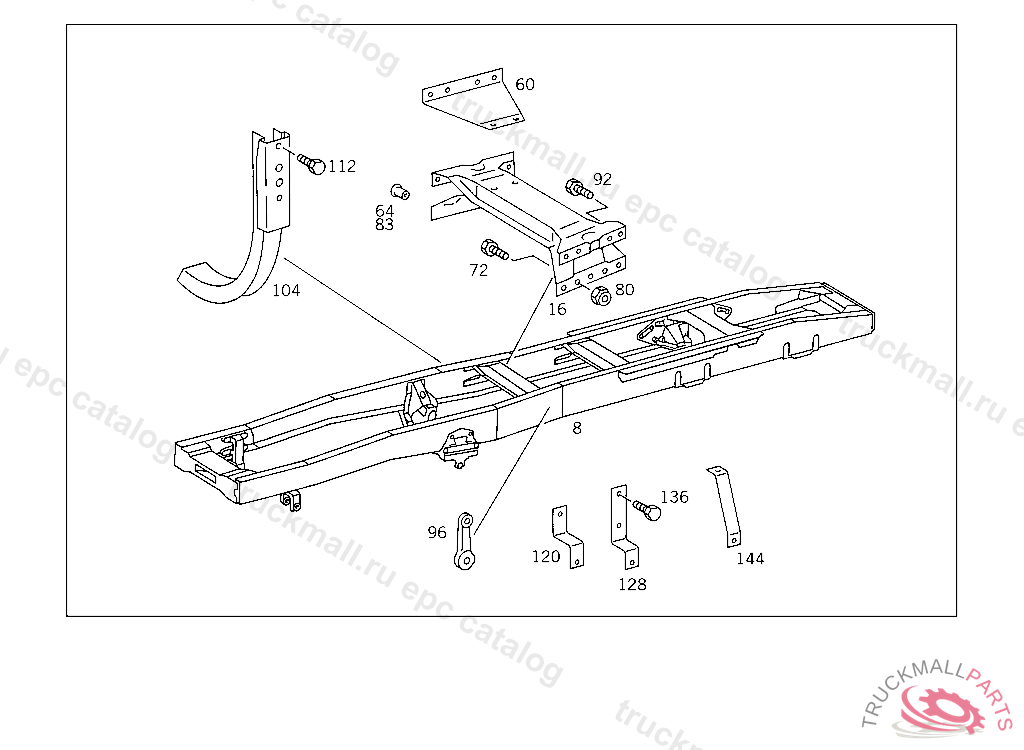

Поз.
Артикул
Описание
8
FRAME
8
FRAME , ON MODEL 395.452
8
FRAME , ON MODEL 387.114
8
FRAME , ON MODELS 389.115/125
8
FRAME , ON MODELS 387.154/389.154
8
FRAME
8
FRAME , ON MODEL 389.116
16
CROSS MEMBERNO.3
16
CROSS MEMBER , Replaced By: A3913100136
16
CROSS MEMBERNO.3, TO BE ADAPTED DURING ASSEMBLY
16
CROSS MEMBER , Replaced By: A6563101336
16
CROSS MEMBER
16
CROSS MEMBERNO.3
16
CROSS MEMBERNO.3
16
CROSS MEMBERNO.3
16
CROSS MEMBER , Replaced By: A3913100136
60
BRACKET AUXILIARY FRAME TO FRAME
64
RIVET REAR CROSS MEMBER 12X42 MM
64
RIVET FRAME TRUSS TO SIDE MEMBER
64
RIVET14X55 MM, TO BE ADAPTED DURING ASSEMBLY
72
SCREW BRACKET TO CAB CONSOLE,K 035197
72
SCREW BRACKET TO SIDE MEMBER
72
SCREW BRACKET TO LEFT SIDE MEMBER
72
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
72
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
80
NUT BRACKET TO SIDE MEMBER
80
NUT SUPPORT TO SIDE MEMBER
80
NUT , Replaced By: N910113014001
83
RIVET FRAME TRUSS TO SIDE MEMBER
83
RIVET SUPPORT TO SIDE MEMBER 14X45 MM
83
RIVET REAR CROSS MEMBER 12X42 MM
92
SCREW BRACKET TO SIDE MEMBER
96
SHIM SUPPORT TO FRAME
104
SUPPORT , Replaced By: A3874703142
104
SUPPORT FUEL TANK
104
SUPPORT FUEL TANK
104
SUPPORT FUEL TANK TO FRAME
104
SUPPORT FUEL TANK,4 3511164 387475
104
SUPPORT FUEL TANK,4 600876
104
SUPPORT , Replaced By: A3874702142
112
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
112
SCREW , Replaced By: N308676014020
112
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
120
BRACKET REAR EXHAUST MUFFLER
128
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
136
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
136
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
136
SCREW , Replaced By: N308676012026
144
BRACKET EXHAUST MUFFLER TO CROSS MEMBER,4 126446
999
NUT , Replaced By: N910113016001
999
NUT , Replaced By: N910113012003
999
NUT CONSOLE TO SUPPORT
999
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
999
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
999
WASHER SPARE WHEEL CARRIER
999
SCREW , Replaced By: N308676016013
999
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
SCREW MOUNTING TO CONSOLE M 14X55
999
WASHER
999
ANGLE SADDLE PLATE,RIGHT
999
ANGLE SADDLE PLATE,LEFT
999
SUPPORT FUEL TANK
999
ANGLE FRAME SIDE MEMBER REINFORCEMENT,FRONT RIGHT
999
ANGLE FRAME SIDE MEMBER REINFORCEMENT,FRONT LEFT
999
SUPPORT FUEL TANK
999
ANGLE FRAME SIDE MEMBER REINFORCEMENT,FRONT RIGHT
999
ANGLE FRAME SIDE MEMBER REINFORCEMENT,FRONT LEFT
999
CROSS MEMBER
999
CROSS MEMBERNO.3A
999
CROSS MEMBERNO.3
999
CROSS MEMBER TRANSMISSION
999
CROSS MEMBERNO.3
999
CROSS MEMBER IN FRAME BEND
999
CROSS MEMBER IN FRAME BEND
999
BRACKET EXHAUST MUFFLER
999
CROSS MEMBER , Replaced By: A3893100237
999
CROSS MEMBERNO.3
999
CROSS MEMBER ,5 508079
999
CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY 312,322,412,422 4 426005 315,325,415,425 4 423552 316,326 4 426856 342,352 4 404477 372 4 405996 EXCEPT FOR 4 404885 442,452 4 405201 EXCEPT FOR 4 399276 472 4 406809 EXCEPT FOR 4 404254,4 405657,4 405954,4 405964 344,354,444,454 4 408959 ALSO INSTALLED ON 4 410954,4 411003,4 411069,4 411174,4 411659,4 412434,4 412569,4 412918,4 413350,4 414258,4 414573,4 415804,4 415914,4 415988, 4 416173,4 416367,4 416554,4 416564,4 417864,4 417912,4 418330,4 418363,4 418368, INAPPLICABLE TO VEHICLES FOR ALGERIA
999
CROSS MEMBERNO.3
999
CROSS MEMBER , Replaced By: A3953100136
999
CROSS MEMBERNO.3, 312,322,412,422 4 426006 315,325,415,425 4 423553 316,326 4 426857 342,352 4 404478 372 4 405997 ALSO INSTALLED ON 4 404885 442,452 4 405202 ALSO INSTALLED ON 4 399276 472 4 406810 ALSO INSTALLED ON 4 404254,4 405657,4 405954,4 405964 344,354,444,454 4 408960 EXCEPT FOR 4 410954,4 411003,4 411069,4 411174,4 411659,4 412434,4 412569,4 412918,4 413350,4 414258,4 414573,4 415804,4 415914,4 415988, 4 416173,4 416367,4 416554,4 416564,4 417864,4 417912,4 418330,4 418363,4 418368, AS WELL AS ON VEHICLES FOR ALGERIA
999
BRACKET EXHAUST MUFFLER TO CROSS MEMBER,4 126447
999
BRACKET EXHAUST MUFFLER TO CROSS MEMBER,4 126446
999
BRACKET , Replaced By: A3874911841
999
SUPPORT , Replaced By: A3874703342
999
SUPPORT , Replaced By: A3874702142
999
SHIM UNDERRUN PROTECTION AND BRACKET TO FRAME
999
BRACKET AUXILIARY FRAME TO FRAME
999
CROSS MEMBER FRONT SPRING REAR BRACKET NO.2
999
CROSS MEMBER TRANSMISSION MOUNTING
999
CROSS MEMBERNO.3A
999
CROSS MEMBER
999
CROSS MEMBERNO.4, 415 5 014669 416 5 000516 417 4 972024
999
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY
