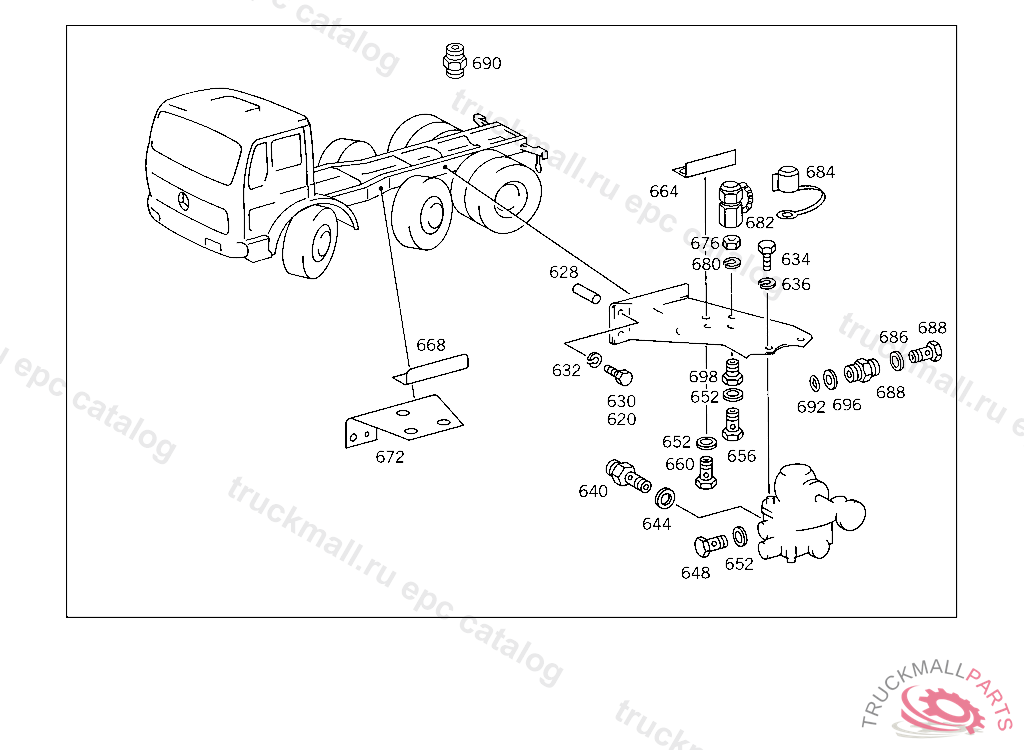

Поз.
Артикул
Описание
620
SCREW BEARING BRACKET TO FRAME
620
SCREW , Replaced By: N000961012051
620
SCREW RIGHT BRACKET TO RIGHT BEARING BRACKET
628
SPACER TUBE RIGHT BRACKET TO RIGHT BEARING BRACKET
630
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
632
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
634
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
634
SCREW , Replaced By: N304017008016
636
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
640
HOLLOW SCREW FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTION: "1"
644
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
648
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
648
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
652
SEAL RING LINE CONNECTION
656
HOLLOW SCREW HEATING CONNECTION
656
HOLLOW SCREW HEATING CONNECTION
660
HOLLOW SCREW LINE CONNECTION
664
GUIDE SIGN FRONT AXLE II PNEUMATIC SUSPENSION
668
GUIDE SIGN AIR SPRING BELLOWS,LEFT AND RIGHT
672
BRACKET TEST CONNECTION, TO BE ADAPTED DURING ASSEMBLY
672
BRACKET , Replaced By: A6533280140
676
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
680
LOCK WASHER BATTERY CABLE
680
LOCK WASHER FITTING TO BRACKET
682
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
682
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
682
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
682
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
682
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
682
TEST CONNECTION
684
PLUG
686
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
688
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
690
FITTING
692
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
696
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
698
FITTING PRESSURE REGULATOR,CONNECTION: "40"
