Поз.
Артикул
Описание

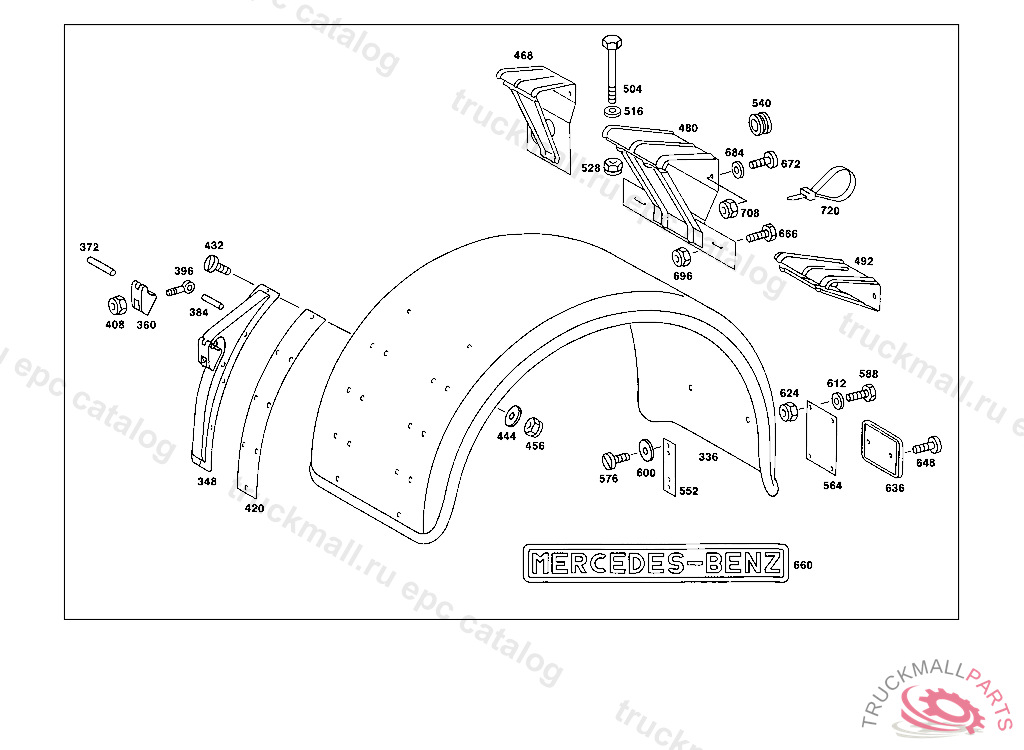

336
FENDER REAR WHEEL 660X660,5 952572
336
FENDER STEERED AXLE,5 952572
336
FENDER REAR WHEEL 660X660,5 952572
336
FENDER REAR WHEEL 660X660,5 952572
348
BRACKET FENDER
348
BRACKET , Replaced By: A6205205241
348
BRACKET FENDER
348
BRACKET , Replaced By: A3355200341
348
BRACKET FENDER
348
BRACKET FENDER
348
BRACKET FENDER
348
BRACKET FENDER
348
BRACKET FENDER
348
BRACKET FENDER
348
BRACKET FENDER
348
BRACKET FENDER
360
CLAMPING PIECE
360
CLAMPING PIECE
372
RIVET9X48 MM
384
RIVET
396
EYEBOLT ,5 101103
396
SCREW
396
EYEBOLT
408
NUT
420
REINFORCEMENT FENDER
420
REINFORCEMENT FENDER
420
REINFORCEMENT FENDER
420
REINFORCEMENT FENDER
420
REINFORCEMENT FENDER
420
REINFORCEMENT FENDER
420
REINFORCEMENT FENDER
420
REINFORCEMENT FENDER
420
REINFORCEMENT FENDER
432
SCREW BRACKET TO REAR FENDER
444
WASHER , Replaced By: N009021006208
444
WASHER COMPRESSED AIR LINE TO BRACKET
456
NUT , Replaced By: N913004006001
456
NUT PUMP TO BRACKET
456
NUT BALL PIVOT TO LEVER
456
NUT BALL PIVOT TO LEVER
468
BRACKET LEFT TAIL LAMP,4 301570
480
BRACKET LEFT TAIL LAMP
480
BRACKET LEFT TAIL LAMP, 393.311 FROM IDENT NO.: 4 450303,393.321 FROM IDENT NO.: 4 453074,395.312,322 FROM IDENT NO.: 4 426006
492
BRACKET RIGHT TAIL LAMP,4 301570
492
BRACKET RIGHT TAIL LAMP
492
BRACKET RIGHT TAIL LAMP
492
BRACKET RIGHT TAIL LAMP, 393.311 FROM IDENT NO.: 4 450303,393.321 FROM IDENT NO.: 4 453074,395.312,322 FROM IDENT NO.: 4 426006
492
BRACKET RIGHT TAIL LAMP, 393.311 FROM IDENT NO.: 4 450303,393.321 FROM IDENT NO.: 4 453074,395.312,322 FROM IDENT NO.: 4 426006
504
SCREW , Replaced By: N304017008043
504
SCREW VALVE TO BRACKET M 8X55
516
WASHER , Replaced By: N000125008443
516
WASHER EXHAUST MUFFLER TO STRAP
528
NUT , Replaced By: N913004008001
528
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
540
GROMMET LINE PASSAGE AT SIDE MEMBER
552
BRACKET REFLECTOR, 393.311 UP TO IDENT NO.: 4 450302,393.321 UP TO IDENT NO.: 4 453073,395.312,322 UP TO IDENT NO.: 4 426005
552
BRACKET REFLECTOR, 393.311 UP TO IDENT NO.: 4 450302,393.321 UP TO IDENT NO.: 4 453073,395.312,322 UP TO IDENT NO.: 4 426005
564
REINFORCEMENT REAR FENDER
564
REINFORCEMENT REAR FENDER
576
SCREW BRACKET TO REAR FENDER
576
SCREW BRACKET TO REAR FENDER
588
SCREW PUMP TO BRACKET
588
SCREW PUMP TO BRACKET
588
SCREW , Replaced By: N304017006016
600
WASHER COMPRESSED AIR LINE TO BRACKET
600
WASHER COMPRESSED AIR LINE TO BRACKET
600
WASHER , Replaced By: N009021006208
612
WASHER COMPRESSED AIR LINE TO BRACKET
612
WASHER COMPRESSED AIR LINE TO BRACKET
612
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
624
NUT PUMP TO BRACKET
624
NUT PUMP TO BRACKET
624
NUT PUMP TO BRACKET
624
NUT , Replaced By: N913004006001
636
REFLECTOR
636
REFLECTOR
648
SCREW JUNCTION BOX TO BRACKET
648
SCREW JUNCTION BOX TO BRACKET
660
NAME PLATE
660
NAME PLATE
660
PLATE , Replaced By: A3605840025, +001A3935840042, +006N000660004060
660
PLATE , Replaced By: A3605840025, +001A3875840042, +006N000660004060
666
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
666
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
666
SCREW , Replaced By: N304017008016
672
SCREW LICENSE PLATE TO BRACKET,4 300861
684
WASHER COMPRESSED AIR LINE TO BRACKET
684
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
696
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
696
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
696
NUT , Replaced By: N913004008001
708
NUT PUMP TO BRACKET
708
NUT , Replaced By: N913004006001
720
LOOM TIE LINE MOUNTING
720
LOOM TIE LINE MOUNTING
999
SCREW , Replaced By: N914112016340
999
SCREW , Replaced By: N914112016015
999
BRACKET , Replaced By: A3525405173, +001A3525440538, +002N000125006421, +001N000965006023, +001N007985006176, +002N913002006005
999
BRACKET , Replaced By: A3525405273, +001A3525440538, +002N000125006421, +001N000965006023, +001N007985006176, +002N913002006005
999
BEARING BRACKET , Replaced By: A3875220292
999
BRACKET LEFT TAIL LAMP, 607108
999
BRACKET RIGHT TAIL LAMP, 607108
999
BRACKET , Replaced By: A3525405173, +001A3525440538, +001A3875440038, +002N000125006421, +001N000965006046, +003N007985006193, +004N913002006005
999
BRACKET , Replaced By: A3525405273, +001A3525440538, +001A3875440038, +002N000125006421, +001N000965006046, +003N007985006193, +004N913002006005
999
BRACKET , Replaced By: A6525222240
999
BRACKET , Replaced By: A6525222240
