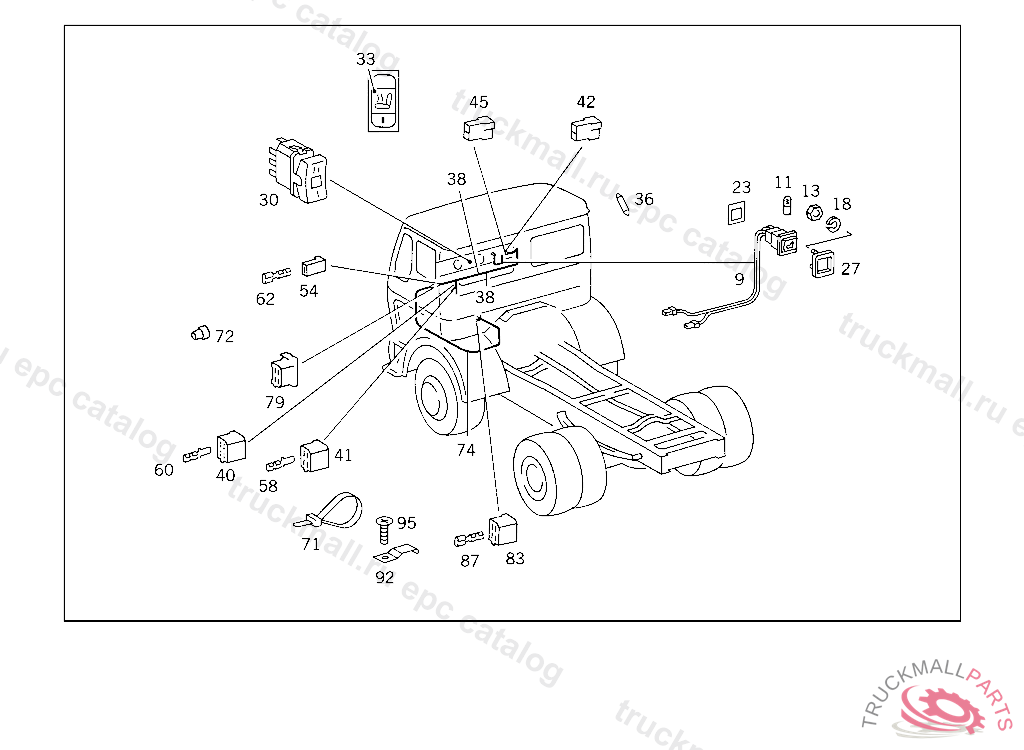

Поз.
Артикул
Описание
9
SWITCH SEAT HEATING, UP TO IDENT NO.: 5 220080+ FROM IDENT-NO.: 6 900001-6 900052
11
BULB , UP TO IDENT NO.: 5 220080+ FROM IDENT-NO.: 6 900001-6 900052
13
NUT BRACKET MOUNTING
13
NUT , Replaced By: N304032003001
18
LOCK WASHER PLUG SOCKET TO BRACKET,5 906887
23
SHIM SWITCH TO INSTRUMENT PANEL, UP TO IDENT NO.: 5 220080+ FROM IDENT-NO.: 6 900001-6 900052
27
COVERING SWITCH TO INSTRUMENT PANEL, UP TO IDENT NO.: 5 220080+ FROM IDENT-NO.: 6 900001-6 900052
30
SWITCH SEAT HEATING
30
SWITCH , Replaced By: A0025457007
33
LENS SEAT HEATING
36
FUSE , Replaced By: N072581008101
36
FUSE FUSE BOX
36
FUSEA8
38
ELECTRIC CABLE FROM FUSE BOX TO SEAT HEATER SWITCH, FROM IDENT NO.: 5 220081+ FROM IDENT NO.: 6 900053
38
ELECTRIC CABLE , Replaced By: A3835400937
38
ELECTRIC CABLE FROM FUSE BOX TO SEAT HEATER SWITCH,4 814296
40
PIN BUSHING HOUSING 8-POLE
41
PLUG HOUSING 4-POLE
42
PLUG , Replaced By: A0075455928
45
PLUG HOUSING AIR CONDITIONER, FOR CAB-PLUG-CONNECTION-TO-AIR-CONDITIONER CABLE HARNESS
54
PIN BUSHING HOUSING UNIPOLAR
58
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
60
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
60
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
62
PIN BUSHING , Replaced By: A0075458226
62
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
62
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
71
LOOM TIE LINE MOUNTING 280 MM
72
CABLE CONNECTOR1.5-6.6 MM2
72
CABLE CONNECTOR6-10 MM2
74
ELECTRIC CABLE FROM PLUG CONNECTION AT WINDOW SILL TO PLUG CONNECTION AT DRIVER'S SEAT
79
PIN BUSHING HOUSING 4-POLE
83
PIN BUSHING HOUSING 4-POLE
87
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
87
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
87
PIN BUSHING , Replaced By: A0075458226
92
CLAMP ELECTRIC CABLE TO CAB FLOOR
95
SHEET METAL SCREW , Replaced By: N000000000453
95
SHEET METAL SCREW MODULE TO HOUSING
