Поз.
Артикул
Описание

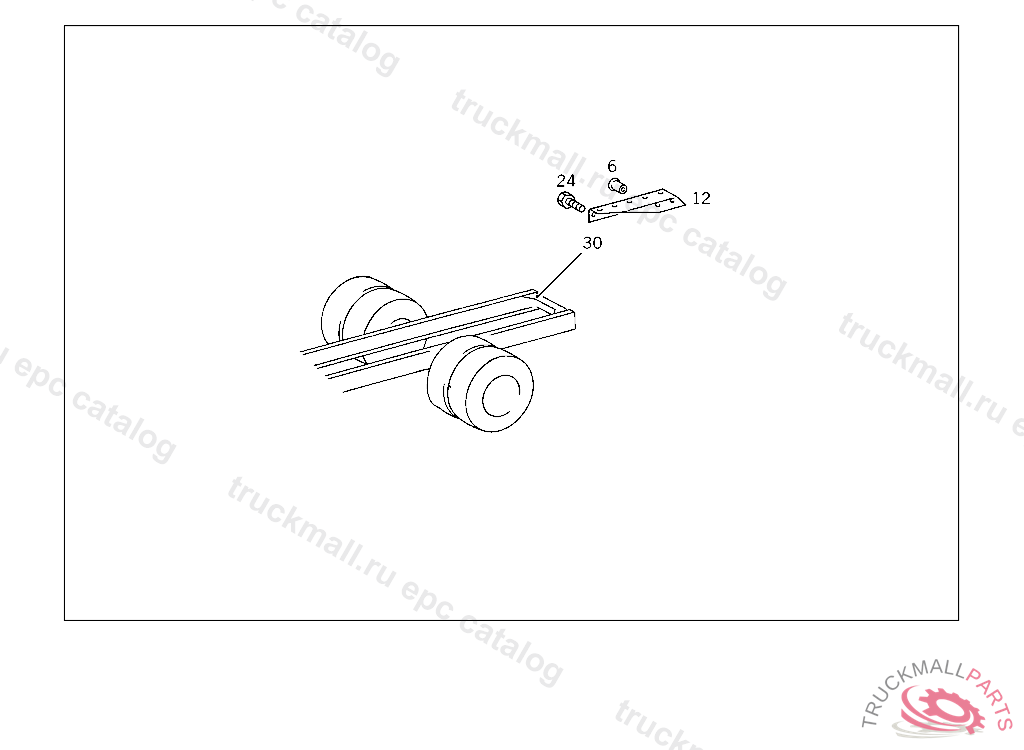

6
RIVET FRAME TRUSS TO SIDE MEMBER
12
GUSSET PLATE BOTTOM LEFT
12
GUSSET PLATE BOTTOM RIGHT
24
SCREW BRACKET TO SUPPORT
24
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
24
SCREW , Replaced By: N304017010002
24
SCREW , Replaced By: N308676014020
24
SCREW , Replaced By: A9429901304
24
SCREW , Replaced By: N308676014008
24
SCREW , Replaced By: N308676014012
24
SCREW MOUNTING TO CONSOLE M 14X55
24
SCREW BRACKET TO SIDE MEMBER
24
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
24
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X48
24
SCREW EXHAUST PIPE TO BRACKET
24
SCREW MOUNTING TO CONSOLE M 14X35
24
SCREW APPARATUS SUPPORT TO FRAME
24
SCREW SUPPORT TO SIDE MEMBER M 14X45
24
SCREW BRACKET TO CAB CONSOLE,K 035197
30
CROSS MEMBERNO.4A
