Поз.
Артикул
Описание

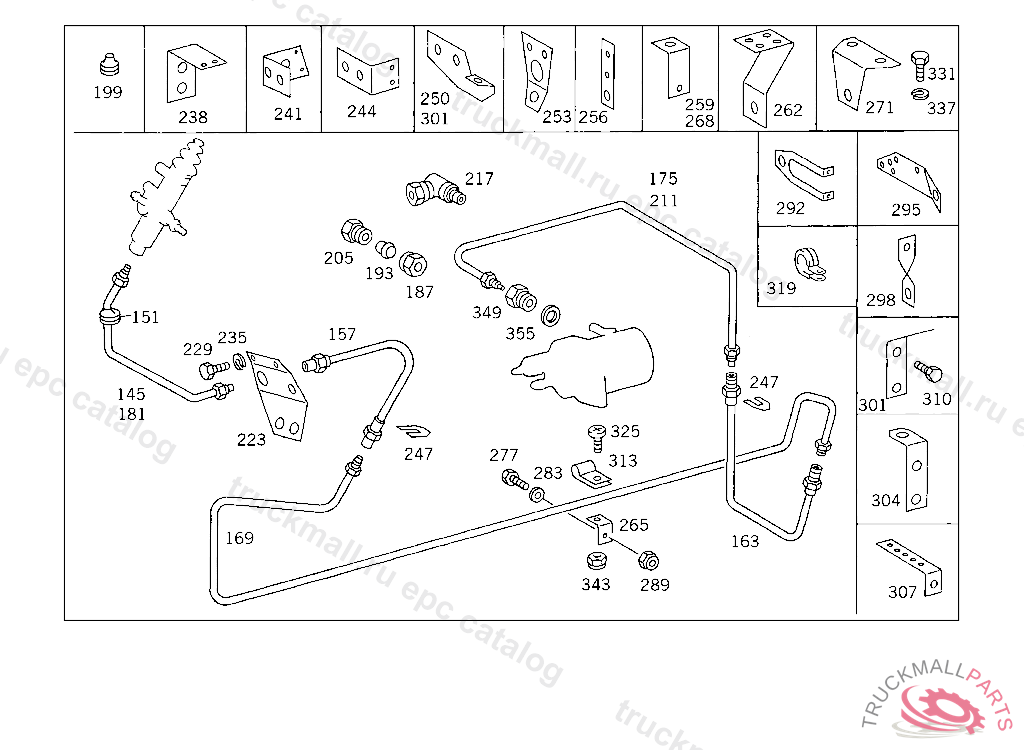

145
LINE FROM VALVE TO CONNECTION FITTING,K 172343
151
GROMMET BATTERY CASE
157
HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET 555 MM
157
HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET
157
HOSE , Replaced By: A3982950035
163
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET
163
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 215 MM
163
HOSE FROM BRACKET AT SIDE MEMBER TO CLUTCH SLAVE CYLINDER,5 385053
169
LINE FROM FAN SHROUD BRACKET TO FITTING 2500 MM
169
LINE , Replaced By: A3812902214
169
LINE , Replaced By: A3812902214
169
LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
175
LINE HYDRAULIC HOSE TOWARDS CLUTCH BOOSTER 800 MM,5 401291 TO BE ADAPTED DURING ASSEMBLY
175
LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
181
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 700 MM
187
UNION NUT
193
GLAND LINE CONNECTION
199
GROMMET TEMPERATURE GAUGE SENDER UNIT
205
UNION SCREW
211
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 400 MM, TO BE ADAPTED DURING ASSEMBLY
217
FITTING CLUTCH BOOSTER,CONNECTION: "4"
217
FITTING , Replaced By: A0029909768
223
BRACKET HYDRAULIC LINE TO CAB FLOOR
229
SCREW PUMP TO BRACKET
229
SCREW , Replaced By: N304017006016
235
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
238
BRACKET AT OIL TANK BRACKET
241
BRACKET AT OIL TANK BRACKET
241
BRACKET AT OIL TANK BRACKET
244
BRACKET OIL TANK
247
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
247
BRACKET. LOCK , Replaced By: A6525040038
250
BRACKET HYDRAULIC LINE TO ENGINE MOUNTING
253
BRACKET AT ENGINE MOUNTING CONSOLE,5 335775
256
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
259
BRACKET BRACKET TO FAN SHROUD BRACKET
262
BRACKET CLUTCH HOSE TO FENDER BRACKET
265
ANGLE LINE MOUNTING
268
BRACKET AT SIDE MEMBER
271
BRACKET AT ENGINE,RIGHT,5 341190
277
SCREW BRACKET TO SIDE MEMBER
277
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
277
SCREW , Replaced By: N304017008027
277
SCREW , Replaced By: N304017010002
283
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
289
NUT STRAP TO BRACKET
289
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
289
NUT , Replaced By: N913004008001
289
NUT , Replaced By: N910113010000
292
BRACKET HYDRAULIC LINE TO TRANSMISSION
295
BRACKET HYDRAULIC LINE TO TRANSMISSION,5 309561
298
BRACKET HYDRAULIC LINE TO TRANSMISSION
301
BRACKET LINE MOUNTING
304
BRACKET BRACKET TO ENGINE,5 401291
307
BRACKET FUEL LINES TO TRANSMISSION
307
BRACKET , Replaced By: A3604292940
310
SCREW , Replaced By: N304017016011
310
SCREWM 16X25
313
CLAMP , Replaced By: N916016008200
313
CLAMP , Replaced By: A3604300143
313
CLAMP ,K 147121, Replaced By: N000000000319
313
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
313
CLAMP LINE MOUNTING
319
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
319
CLAMP ,K 147121, Replaced By: N000000000319
325
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
325
SCREW , Replaced By: N000000001146
325
SCREW CLAMP TO BRACKET
325
SCREW CLAMP MOUNTING M 6X16
331
SCREW PUMP TO BRACKET
331
SCREW , Replaced By: N304017006016
337
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
343
NUT PUMP TO BRACKET
343
NUT , Replaced By: N913004006001
349
FITTING CLUTCH BOOSTER
355
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
BRACKET , Replaced By: A3464290340
