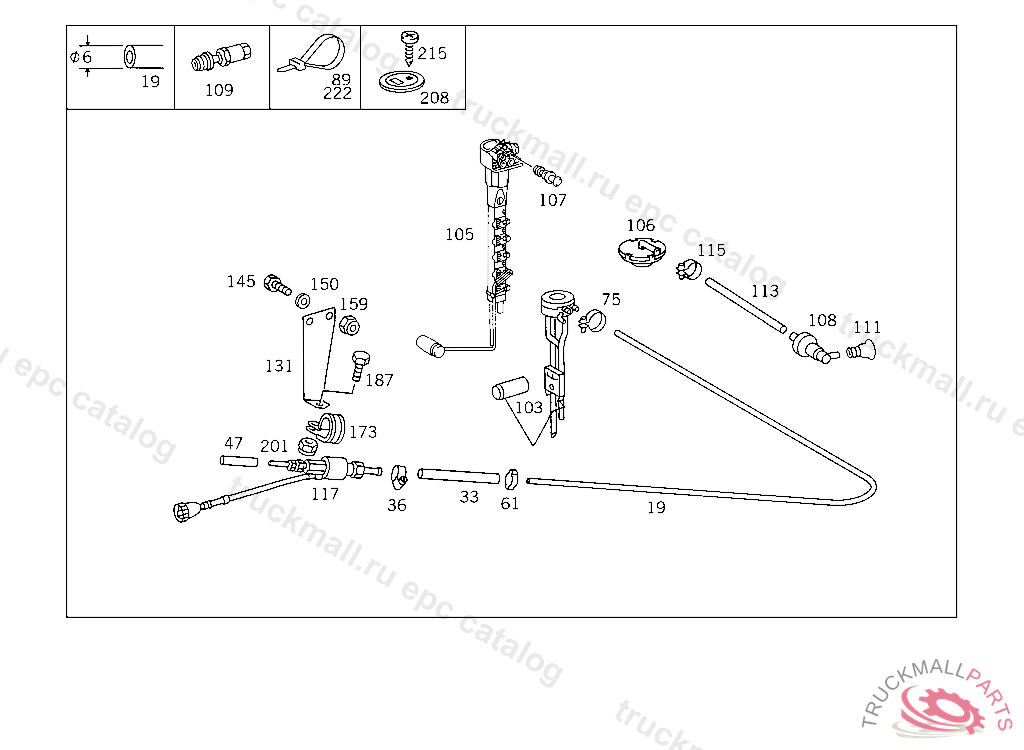

Поз.
Артикул
Описание
19
PLASTIC PIPE RISING PIPE 4X6 MM
19
HOSE FUEL LINE, ORDER BY THE METER
19
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
33
HOSE LEAK LINE, ORDER BY THE METER
36
CLAMP LINE MOUNTING
47
HOSE PLASTIC PIPE,K 223529
47
INTERMEDIATE PIECE FUEL LINE,K 223528
61
LOOM TIE LINE MOUNTING
75
CLAMP LINE MOUNTING
89
LOOM TIE LINE MOUNTING 280 MM
89
LOOM TIE LINE MOUNTING
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
SENDER UNIT FUEL GAUGE
103
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
105
SENDER UNIT FUEL GAUGE
106
COVERING RISING PIPE,K 169122
107
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
108
VALVE ,K 169122
108
VALVE ,K 169122
109
CONNECTOR
111
BOOT CHECK VALVE,K 169122
113
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
115
CLAMP CHECK VALVE,K 169122
117
AUXILIARY PUMP FUEL-OIL PUMP,K 181478
117
AUXILIARY PUMP FUEL-OIL,K 181478, Replaced By: A0004706694
117
AUXILIARY PUMP , Replaced By: A0004704594, +002A0025450628, +001A0055454528, +001A0019906440, +001A0009904954, +001A0029970781
117
AUXILIARY PUMP FUEL 24 V
131
BRACKET ADDITIONAL FUEL PUMP
131
BRACKET ADDITIONAL FUEL PUMP,5 510005
131
BRACKET ADDITIONAL FUEL PUMP
145
SCREW SUPPORT TO CROSS MEMBER M 10X28
145
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
145
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
145
SCREW BRACKET TO SIDE MEMBER
145
SCREW , Replaced By: N304017010002
150
WASHER , Replaced By: N000125010532
150
WASHER , Replaced By: N000125015019
150
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
150
WASHER RADIATOR TO RUBBER MOUNTING
159
NUT STRAP TO BRACKET
159
NUT BRACKET TO SIDE MEMBER
159
NUT AIR CLEANER ELEMENT
159
NUT , Replaced By: N910113010000
159
NUT , Replaced By: N910113014001
173
CLAMP PUMP TO BRACKET
187
SCREW PUMP TO BRACKET
187
SCREW AT FILTER BRACKET
187
SCREW , Replaced By: N304017006016
201
NUT , Replaced By: N913004006001
201
NUT AT FILTER BRACKET
201
NUT PUMP TO BRACKET
208
BRACKET LINE MOUNTING
215
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
222
LOOM TIE LINE MOUNTING 280 MM
999
STRAINER
999
FITTING
