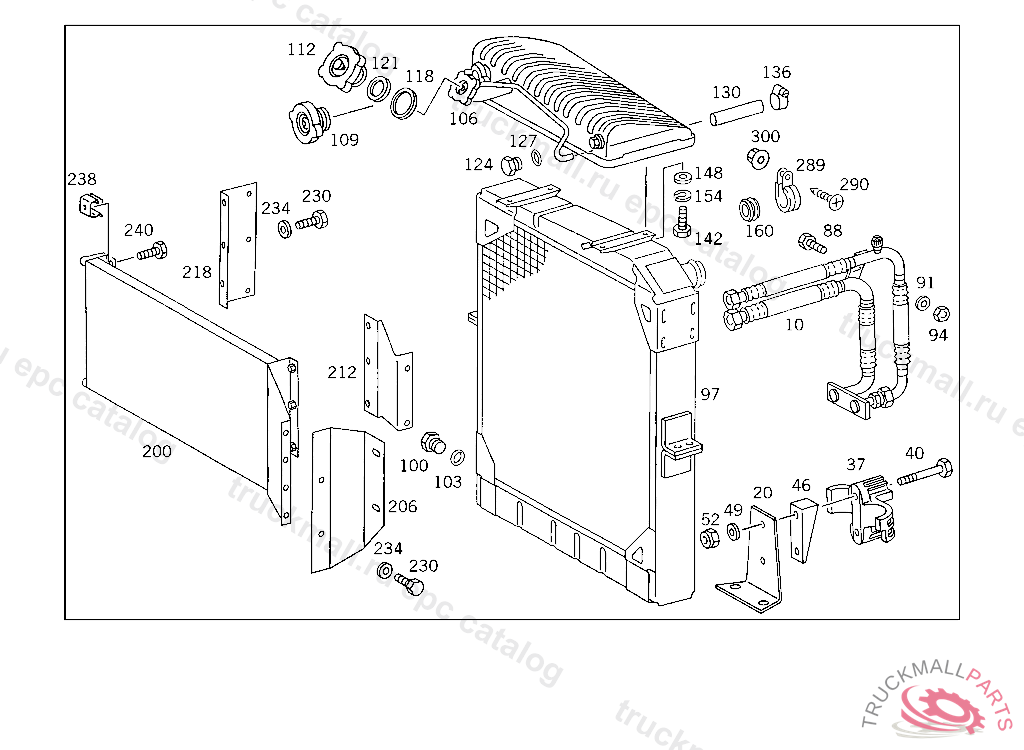

Поз.
Артикул
Описание
10
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT,5 4069035 519721
10
HOSE FROM COMPRESSOR TO RADIATOR SEPARATION POINT,5 519722
10
HOSE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
20
BRACKET DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 570587
37
CLAMP DELIVERY AND SUCTION HOSES
37
CLAMP DELIVERY AND SUCTION LINES TO CAB
37
CLAMP DELIVERY AND SUCTION HOSES
37
CLAMP PIPE LINE TO BRACKET
40
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING M 6X75
40
SCREW , Replaced By: N000933006151
40
SCREW DISTRIBUTOR TO CAB
46
PAD DELIVERY AND SUCTION LINES TO CAB
49
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
49
WASHER COMPRESSED AIR LINE TO BRACKET
52
NUT , Replaced By: N913004006001
52
NUT PUMP TO BRACKET
88
SCREW , Replaced By: N304017006016
88
SCREW PUMP TO BRACKET
91
WASHER COMPRESSED AIR LINE TO BRACKET
91
WASHER , Replaced By: N009021006208
91
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
91
WASHER COMPRESSED AIR LINE TO BRACKET
94
NUT PUMP TO BRACKET
94
NUT , Replaced By: N913004006001
97
RADIATOR
97
RADIATOR"BEHR"
100
SCREW PLUG WATER DRAIN
103
SEAL RING FUEL LINE TO FEED PUMP
106
TANK EXPANSION TANK
109
RADIATOR CAP CENTRAL
109
RADIATOR CAP CENTRAL
112
RADIATOR CAP FILLER NECK
112
RADIATOR CAP FILLER NECK
118
GASKET O.D., 52 MM
121
GASKET O.D., 37 MM
124
SCREW PLUG WATER DRAIN
124
SCREW PLUG , Replaced By: N007604014101
127
SEAL RING FUEL LINE TO FEED PUMP
130
HOSE OVERFLOW, EXPANSION TANK
136
CLAMP , Replaced By: N916017011000
142
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
142
SCREW , Replaced By: N304017008016
148
WASHER , Replaced By: N000125008443
148
WASHER EXHAUST MUFFLER TO STRAP
154
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
160
GROMMET LINE PASSAGE AT SIDE MEMBER
200
CONDENSER AIR CONDITIONER
200
CONDENSER AIR CONDITIONER
206
ANGLE CONDENSER TO RADIATOR
212
BRACKET CONDENSER TO RADIATOR,5 010994
218
BRACKET CONDENSER TO RADIATOR,5 010994
230
SCREW PUMP TO BRACKET
230
SCREW DE-AERATION LINE TO RADIATOR
230
SCREW COVER PLATE TO COVER PLATE M 6 X 12
230
SCREW , Replaced By: N304017006016
230
SCREW , Replaced By: N304017006018
230
SCREW , Replaced By: A6739900032
234
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
234
WASHER COMPRESSED AIR LINE TO BRACKET
238
NUT RETAINER LICENSE PLATE TO BRACKET
238
NUT , Replaced By: A0009902291
238
NUT RETAINER , Replaced By: A0019906791
240
SCREW , Replaced By: N304017006016
240
SCREW , Replaced By: A6739900032
240
SCREW DE-AERATION LINE TO RADIATOR
240
SCREW PUMP TO BRACKET
289
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
290
SHEET METAL SCREW OIL LINE MOUNTING
300
NUT BRACKET TO PIN
999
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
999
PIPE ELBOW , Replaced By: A6565200006
999
BRACKET HOSE TO RADIATOR
999
BRACKET CONNECTING HOSE TO CAB MOUNTED ELECTRIC CABLE HARNESS BRACKET
999
BRACKET CONNECTING HOSE TO CAB MOUNTED ELECTRIC CABLE HARNESS BRACKET
999
SWITCH ,K 157608
