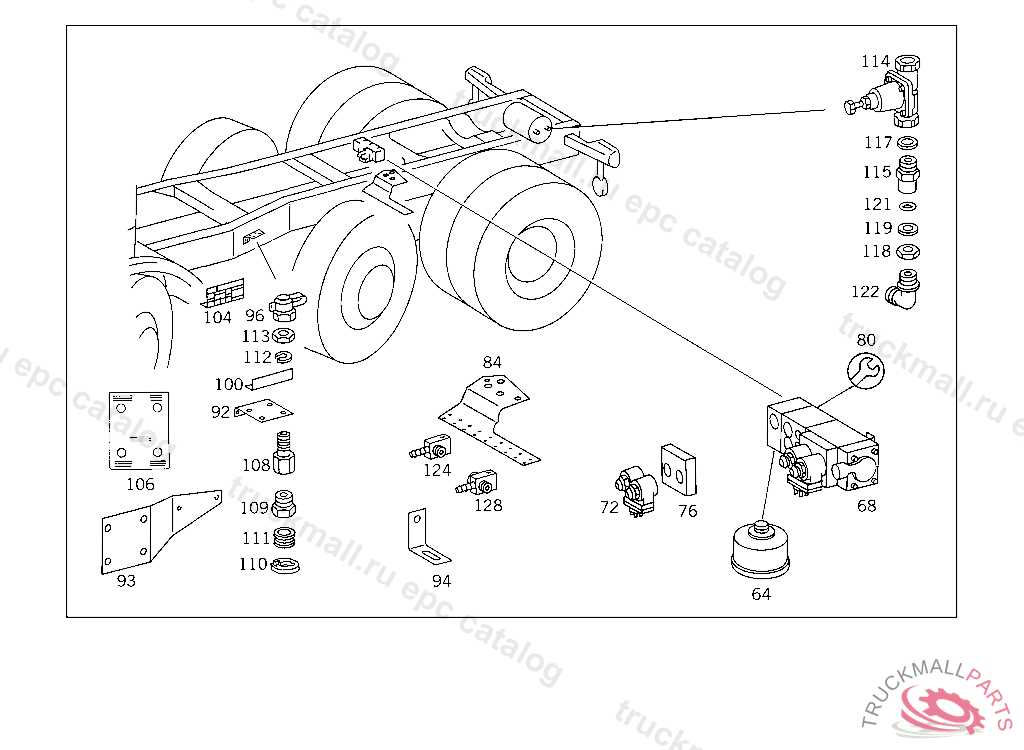

Поз.
Артикул
Описание
64
MUFFLER TRAILER CONTROL VALVE
64
MUFFLER , Replaced By: A0004302370
68
VALVE (SHIFT VALVE) GRAU, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
68
VALVE (SHIFT VALVE) KNORR
72
VALVE (VALVE SOLENOID) GRAU,5 760167
76
COVERGRAU,5 760167
80
REPAIR KIT CONTROL VALVE GRAU
84
BRACKET CONNECTOR
92
BRACKET TEST CONNECTION, TO BE ADAPTED DURING ASSEMBLY
92
BRACKET TEST CONNECTION, TO BE ADAPTED DURING ASSEMBLY
92
BRACKET ,5 760167 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6523280840
93
BRACKET TEST CONNECTIONS
94
BRACKET TEST CONNECTION
96
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
96
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
96
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
96
TEST CONNECTION
100
GUIDE SIGN AIR SPRING BELLOWS,LEFT AND RIGHT
100
GUIDE SIGN BELLOWS PRESSURE
104
GUIDE SIGN SUPPLY
106
GUIDE SIGN AIR SPRING BELLOWS,5 760167
108
ADAPTER FITTING TEST CONNECTION
109
SCREW. UNION SCREW LINE CONNECTION
109
SCREW. UNION SCREW , Replaced By: A0009973734
110
LOCK , Replaced By: A0009945448
110
LOCK LINE CONNECTION
111
LOCK RING LINE CONNECTION
111
SEAL RING , Replaced By: A0009940747
112
LOCK WASHER FITTING TO BRACKET
113
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
114
VALVE (OVERFLOW VALVE) GRAU
114
VALVE (OVERFLOW VALVE) WABCO
115
FITTING LINE CONNECTION
117
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
118
NUT CHECK VALVE TO AIR RESERVOIR
119
THRUST RING CHECK VALVE TO AIR RESERVOIR
119
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
121
O-RING CHECK VALVE TO AIR RESERVOIR
122
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
124
CONNECTOR DISTRIBUTOR TO FRAME
124
CONNECTOR DISTRIBUTOR TO FRAME
124
CONNECTOR , Replaced By: A0019903978
128
CONNECTOR , Replaced By: A0019904078
128
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO 008 997 90 82
128
CONNECTOR RELEASE BEARING LUBRICATION
999
BALL JOINT TRAVEL SENSOR
999
BALL JOINT LEFT-HAND THREAD,BALL DIAMETER 10 MM
999
REPAIR KITTO 388 997 88 36
999
AIR CLEANER ,5 760168K 154651
999
MAGNET ,5 760168K 154651
999
PROTECTIVE CAPWABCO
999
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
LEVER AIR SPRING VALVE,5 760167
999
BRACKET TEST CONNECTION
999
CYLINDER REAR AXLE SELF-LEVELLING DEVICE
999
FITTING FROM PUMP TO CYLINDER
999
SEAL RING LINE CONNECTION
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW PLUGROCKINGER,TYP 59 U150
999
NUT
999
NUT BALL SOCKET TO ROD
999
PULL ROD PNEUMATIC SUSPENSION CONTROL
