Поз.
Артикул
Описание

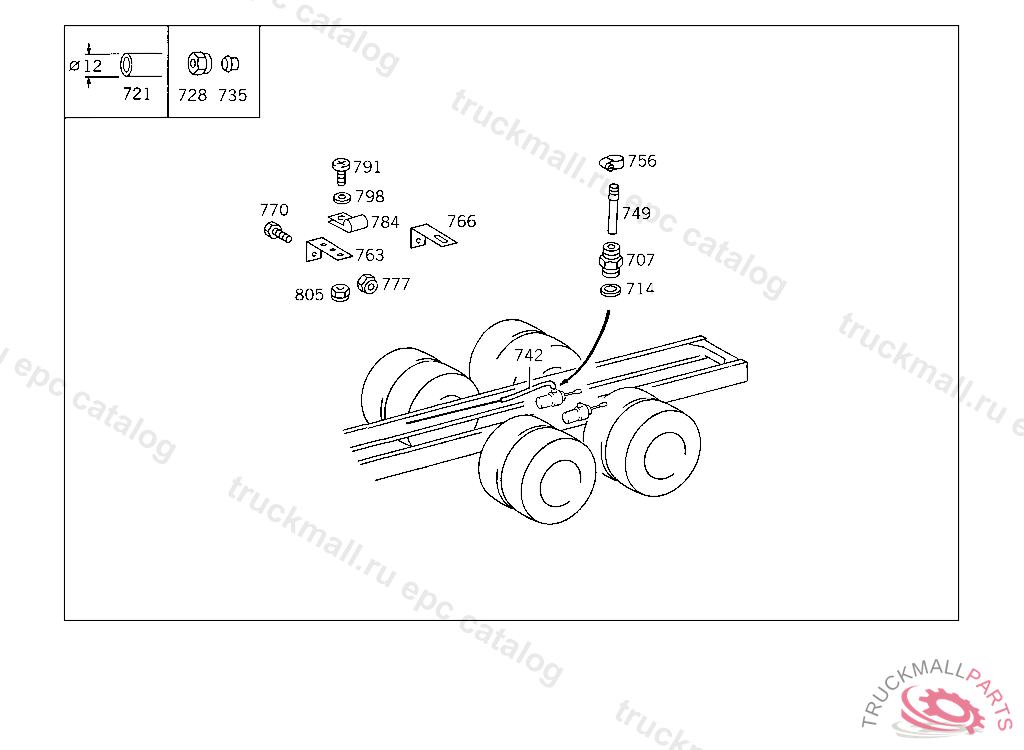

707
FITTING DELIVERY LINE TO PUMP
714
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
721
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
728
UNION NUT LINE CONNECTION, Replaced By: N000000006239
728
UNION NUT LINE CONNECTION
735
GLAND , Replaced By: A0019901967
735
SEAL CONE LINE CONNECTION
742
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
749
FITTING DIAPHRAGM CYLINDER,CONNECTION:
756
CLAMP HOSE TO FITTING AND TO OIL TANK
756
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
763
BRACKET , Replaced By: A3604292940
763
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
766
BRACKET COOLING WATER LINE TO TRANSMISSION
770
SCREW , Replaced By: N304017008027
770
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
777
NUT , Replaced By: N913004008001
777
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
784
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
791
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
791
SCREW CLAMP TO BRACKET
798
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
798
WASHER COMPRESSED AIR LINE TO BRACKET
805
NUT , Replaced By: N913004006001
805
NUT PUMP TO BRACKET
999
SWITCH (PRESSURE SWITCH) 70 BAR
999
ANGLE BATTERY CABLE TO SIDE MEMBER, NOT USED
999
BRACKET HYDRAULIC LINES TO FRAME
999
HYDRAULIC UNIT
999
BRACKET OIL LINE MOUNTING
999
T-FITTING PRESSURE SWITCH
999
NUT PRESSURE SWITCH
999
PIPE SOLENOID VALVE
999
SEAL RING PRESSURE SWITCH
999
COVER SWITCH BOX
999
SHACKLE RIGHT
999
SHACKLE LEFT
