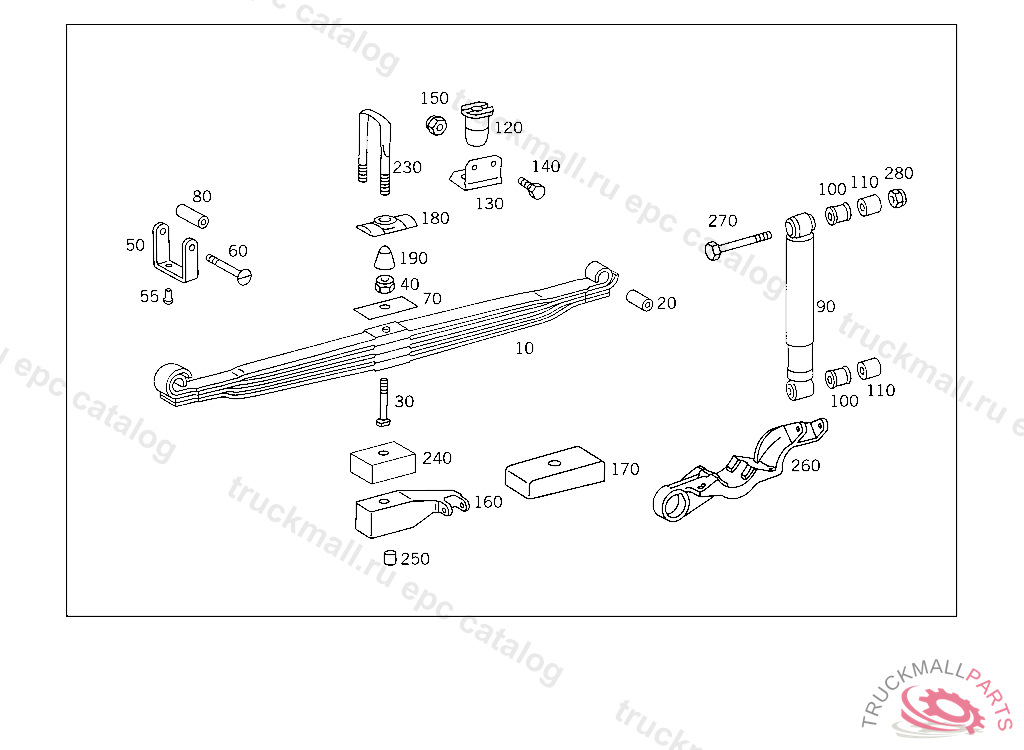

Поз.
Артикул
Описание
10
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
10
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
10
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
10
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
20
RUBBER MOUNTING , Replaced By: A0003223285
20
RUBBER MOUNTING
20
RUBBER MOUNTING , Replaced By: A0003223285
30
SCREW (SPRING BOLT),K 082614
30
SCREW (SPRING BOLT),K 082614
30
SCREW (SPRING BOLT)
30
SCREW (SPRING BOLT)
40
NUT STEERING SUPPORT TO FRAME
40
NUT , Replaced By: N910113014000
50
SPRING CLAMP SPRING EYE,REAR,5 533058
50
SPRING CLAMP SPRING EYE,REAR,5 533058
55
RIVET SPRING CLAMP TO SPRING LEAF,5 940410
60
SCREW FOR SPRING CLAMPS
60
SCREW FOR SPRING CLAMPS
70
SHIM SPRING LEAF
80
SPACER TUBE SPRING CLAMP
80
SPACER TUBE SPRING CLAMP
90
SHOCK ABSORBER FRONT AXLE II
90
SHOCK ABSORBER FRONT AXLE II
90
SHOCK ABSORBER FRONT AXLE
90
SHOCK ABSORBER , ONLY REPLACEABLE BY PAIRS, Replaced By: A0063230900
90
SHOCK ABSORBER , ONLY REPLACEABLE BY PAIRS, Replaced By: A0063230900
100
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
100
RUBBER BUFFER
100
RUBBER BUFFER , Replaced By: A0003233144
100
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
100
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
100
RUBBER MOUNTINGTO 003 326 46 00
100
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
100
RUBBER MOUNTINGTO 003 326 46 00
110
SPACER RINGTO 002 323 86 00,003 323 03 00,
110
BUSHINGTO 004 323 52 00
110
BUSHINGTO 004 323 52 00
110
SPACER RINGTO 002 323 86 00,003 323 03 00,
120
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
130
BRACKET HELPER SPRING
140
SCREW REAR EXHAUST PIPE TO MUFFLER
150
NUT STRAP TO BRACKET
150
NUT , Replaced By: N910113010000
160
SHIM FRONT SPRINGS TO FRONT AXLE,5 593332
160
SHIM FRONT SPRINGS TO FRONT AXLE
160
SHIM FRONT SPRINGS TO FRONT AXLE
160
SHIM LEFT SHOCK ABSORBER,5 507220
160
SHIM RIGHT SHOCK ABSORBER,5 507220
160
SHIM FRONT SPRINGS TO FRONT AXLE
160
SHIM FRONT SPRINGS TO FRONT AXLE
160
SHIM FRONT SPRINGS TO FRONT AXLE
160
SHIM FRONT SPRINGS TO FRONT AXLE,5 593332
170
SHIM FRONT SPRINGS TO FRONT AXLE
170
SHIM FRONT SPRINGS TO FRONT AXLE,5 507220
170
SHIM FRONT SPRINGS TO FRONT AXLE
180
PLATE FRONT SPRINGS TO FRONT AXLE,K 156938
180
PLATE FRONT SPRINGS TO FRONT AXLE
180
PLATE FRONT SPRINGS TO FRONT AXLE,K 156938
180
PLATE FRONT SPRINGS TO FRONT AXLE
180
PLATE , Replaced By: A6483310026
190
RUBBER BUFFER SPRING STOP
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 430 MM
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 410 MM
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 390 MM,4 286050
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 290 MM
230
U-BOLT , Replaced By: A3363310025
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 330 MM
230
U-BOLT FRONT SPRINGS TO FRONT AXLE 290 MM
240
SHIM FRONT SPRINGS TO FRONT AXLE
250
PIN FRONT SPRINGS TO FRONT AXLE
250
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
250
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
250
PIN , Replaced By: A6573310074
260
BEARING RIGHT
260
BEARING LEFT
270
SCREW SHOCK ABSORBER TO TOP BRACKET
280
NUT COMBINATION CYLINDER TO BEARING BRACKET
280
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
BUSHING TORSION BAR TO BEARING BRACKET
999
REPAIR KIT TORSION BAR MOUNTING,5 184 732
999
SHIM
