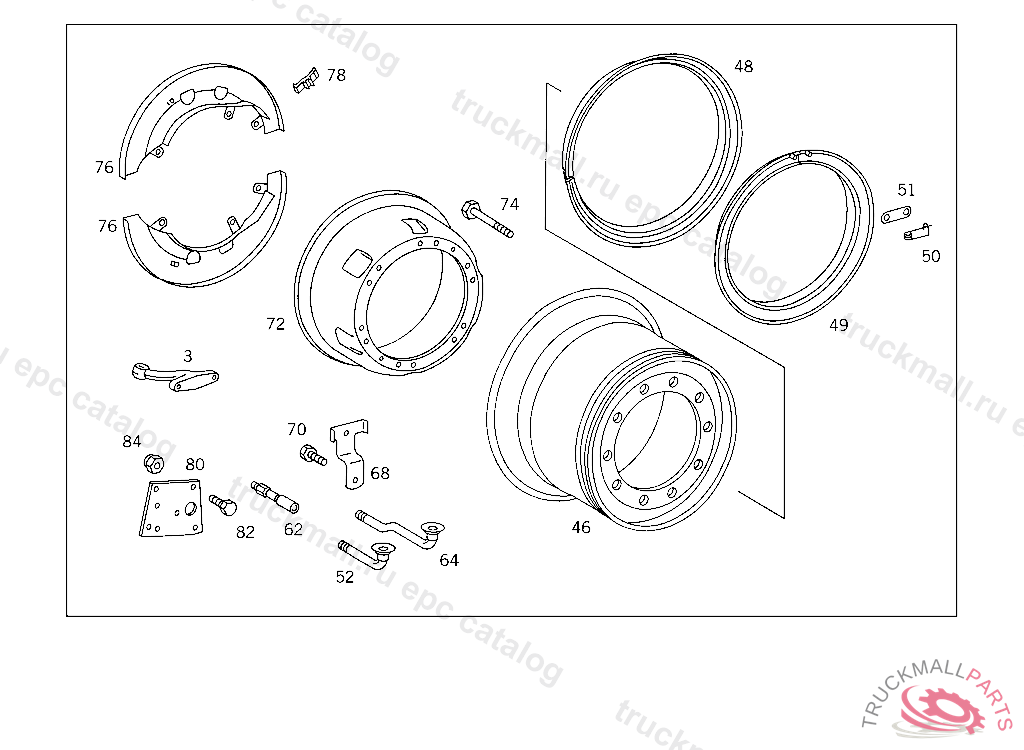

Поз.
Артикул
Описание
3
STEERING ARM
3
STEERING ARM
3
STEERING ARM
3
STEERING ARM
46
RIM
48
SIDE RINGTO 000 401 74 01,4 628576
48
SIDE RINGTO 002 401 91 01,003 401 01 01
49
COVER RINGTO 000 401 74 01,4 628576
49
COVER RINGTO 002 401 91 01,003 401 01 01
50
SAFETY PINTO 002 401 91 01,003 401 01 01
50
LOCK , Replaced By: A0004010573
51
LOCK , Replaced By: A0004010473
51
LOCK
52
VALVE DISC WHEEL, NOT USED
62
VALVE EXTENSION,FRONT WHEEL
62
VALVE EXTENSION,FRONT WHEEL
64
VALVE EXTENSION,REAR WHEEL
68
BRACKET EXTENSION
70
SCREW , Replaced By: A0079900801
70
SCREW REDUCTION VALVE TO BRACKET
72
BRAKE DRUM
72
BRAKE DRUM
74
SCREW , UP TO CHASSIS 969301 ALSO INSTALLED ON 500001-535613,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535614-599999 SEE SA 20 143
76
PROTECTIVE PLATE , FROM REAR AXLE 060666 UP TO CHASSIS 969301 ALSO INSTALLED ON 500001-535613,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535614-599999 SEE SA 20 143
76
PROTECTIVE PLATE , UP TO REAR AXLE 060665, Replaced By: A3664200944, +012N000934016002, +004N000936016007, +008N000960016161
78
PLUG , FROM REAR AXLE 060666 UP TO CHASSIS 969301 ALSO INSTALLED ON 500001-535613,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535614-599999 SEE SA 20 143
80
BRACKET LEFT TAIL LAMP, 607108
80
BRACKET RIGHT TAIL LAMP, 607108
82
SCREW SUPPORT TO CROSS MEMBER M 10X28
84
NUT STRAP TO BRACKET
84
NUT , Replaced By: N910113010000
999
SIDE RING , Replaced By: A0004017406
999
SIDE RING
999
DISC WHEEL , Replaced By: A0034010101, +001A3954010013
999
TAPERED ROLLER BEARING INSIDE
999
DISC WHEEL"LEMMERZ"
999
DISC WHEEL"LEMMERZ"
999
DISC WHEEL , Replaced By: A0034010101, +001A3954010013
999
DISC WHEEL
999
GROOVED NUT
999
NUT
999
THRUST WASHER
999
LOCK PLATE
999
WHEEL HUB
999
WHEEL MOUNTING BOLT
999
OIL COLLECTOR
999
WHEEL MOUNTING BOLT
999
BRAKE DRUM , UP TO CHASSIS 969301,ALSO INSTALLED ON 500001-535613,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535614-599999 SEE 745.5
999
THRUST WASHER
999
THRUST WASHER
999
THRUST WASHER
999
STEERING ARM
999
STEERING ARM
999
THRUST WASHER REAR SUBFRAME, FROM AXLE 4130410
999
WHEEL HUB
999
OIL COLLECTOR , UP TO REAR AXLE 013914
999
BRACKET , Replaced By: A3875223840
