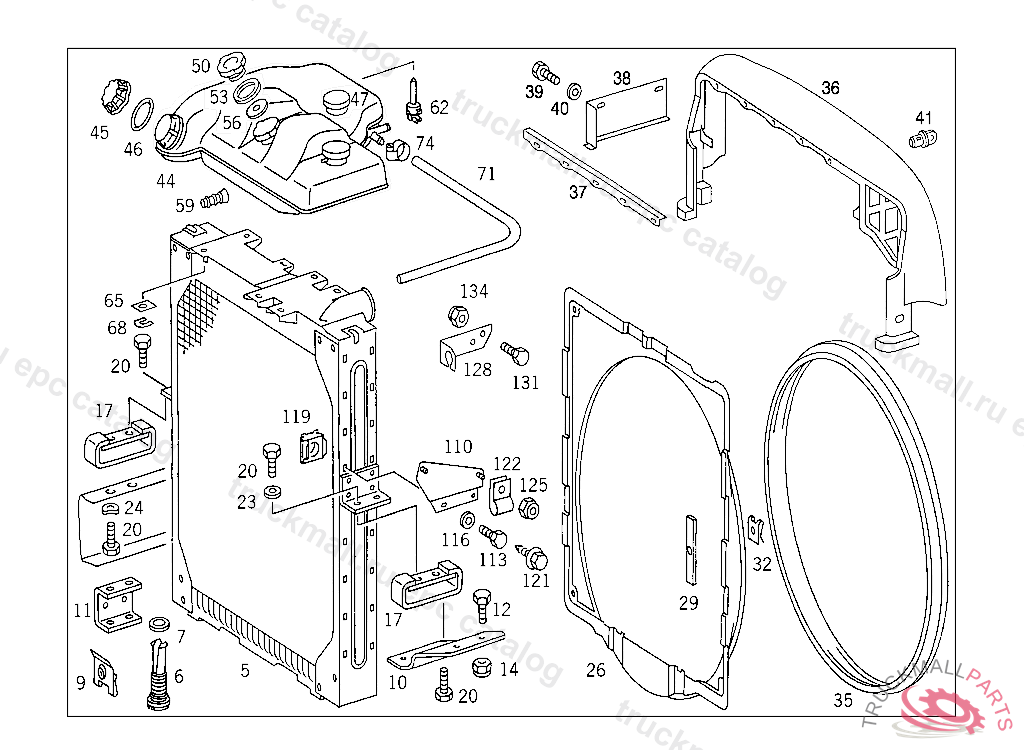

Поз.
Артикул
Описание
5
RADIATOR , Replaced By: A6525016501
5
RADIATOR WITH SCREW FITTING
5
RADIATOR , Replaced By: A6555000403
5
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 752618, Replaced By: A6555002103
5
RADIATOR , Replaced By: A6525014501
5
RADIATOR , Replaced By: A6525014501
6
SCREW , Replaced By: A0005000085
6
SCREW WATER DRAIN
7
GASKET COOLING WATER DRAIN TO 656 500 00 03
9
LOCK
10
SUPPORT RADIATOR,LEFT,K 096750
10
SUPPORT RADIATOR,LEFT,K 096749
12
SCREW CONSOLE TO SIDE MEMBER
14
NUT SUPPORT TO SIDE MEMBER
17
RUBBER MOUNTING RADIATOR
20
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
20
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
20
SCREW , Replaced By: N304017010028
23
WASHER , Replaced By: N000125010532
23
WASHER RADIATOR TO RUBBER MOUNTING
24
SPRING WASHER STEERING COLUMN BRACKET TO CAB
26
FAN SHROUD RADIATOR
29
DETENT FAN SHROUD TO RADIATOR
32
LOCK PULL TO FASTENER
32
LOCK , Replaced By: N912002008003
35
BOOT FAN SHROUD TO FAN RING
36
BOOT (SEALING LIP)
37
BRACKET SEALING LIP TO EXPANSION TANK
38
BRACKET RADIATOR,LEFT
38
BRACKET RADIATOR,RIGHT
39
SCREW GUIDE TUBE BRACKET TO RADIATOR
39
SCREW , Replaced By: A2019900936
40
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
40
WASHER COMPRESSED AIR LINE TO BRACKET
41
PIN SEALING LIP TO EXPANSION TANK
44
TANK COOLING WATER EXPANSION
45
RADIATOR CAP FILLER NECK
45
RADIATOR CAP , Replaced By: A0005016415
46
SEAL RING
47
RADIATOR CAP
50
RADIATOR CAP CENTRAL
50
RADIATOR CAP CENTRAL
53
GASKET O.D., 52 MM
56
GASKET O.D., 37 MM
59
DRAIN PIPE
62
SENDER UNIT COOLING WATER LEVEL INDICATOR
65
PLATE FROM EXPANSION TANK TO RADIATOR 40X40 MM
65
PLATE FROM EXPANSION TANK TO RADIATOR
68
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
68
BRACKET. LOCK , Replaced By: A6525040038
71
HOSE FROM EXPANSION TANK TO ENGINE
74
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
74
CLAMP , Replaced By: N916017011001
110
BRACKET , NOT USED
113
SCREW PUMP TO BRACKET
113
SCREW , Replaced By: N304017006016
116
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
116
WASHER COMPRESSED AIR LINE TO BRACKET
119
NUT RETAINER LICENSE PLATE TO BRACKET
119
NUT RETAINER , Replaced By: A0019906791
121
SCREW , Replaced By: A6739900032
121
SCREW DE-AERATION LINE TO RADIATOR
122
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
125
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
125
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
125
NUT , Replaced By: N913004008001
999
WASHER , Replaced By: N000125006421
