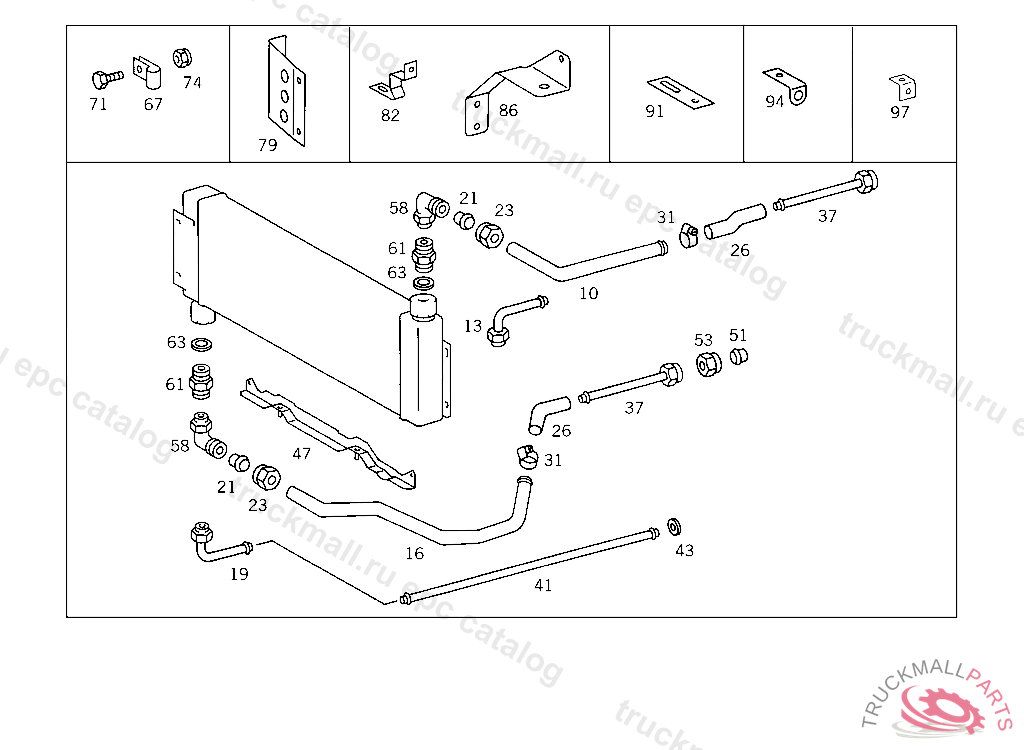

Поз.
Артикул
Описание
10
OIL PIPE FROM OIL COOLER TO FEED HOSE CONNECTION
10
PIPE FROM OIL COOLER TO FEED HOSE CONNECTION
10
PIPE SOCKET FROM OIL COOLER TO FEED HOSE CONNECTION
13
OIL LINE FROM OIL COOLER TO FEED HOSE CONNECTION
16
OIL PIPE FROM OIL COOLER TO RETURN HOSE CONNECTION
16
PIPE FROM OIL COOLER TO RETURN HOSE CONNECTION
16
PIPE SOCKET FROM OIL COOLER TO RETURN HOSE CONNECTION
19
OIL LINE FROM OIL COOLER TO RETURN HOSE CONNECTION
21
SEAL CONE LINE CONNECTION
21
GLAND , Replaced By: A0019901267
23
UNION NUT LINE CONNECTION, Replaced By: N000000006243
23
NUT LINE CONNECTION
26
HOSE FROM OIL COOLER TO TRANSMISSION
26
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
31
CLAMP HOSE TO FITTING AND TO OIL TANK
37
PIPE RETURN, FROM HOSE TO TRANSMISSION
37
PIPE FEED, FROM TRANSMISSION TO HOSE
37
OIL PIPE FROM TRANSMISSION TO FEED HOSE
37
OIL PIPE FEED, FROM TRANSMISSION TO HOSE
37
OIL PIPE RETURN, FROM HOSE TO TRANSMISSION
37
OIL PIPE RETURN, FROM HOSE TO TRANSMISSION
41
LINE TRANSMISSION
41
LINE , Replaced By: A0805009672
43
SEAL RING LINE CONNECTION
43
SEAL RING OIL COOLER CONNECTION
47
BRACKET DELIVERY AND SUCTION LINES TO RADIATOR
51
SEAL CONE LINE CONNECTION
51
GLAND , Replaced By: A0019901267
53
UNION NUT LINE CONNECTION, Replaced By: N000000006243
53
NUT LINE CONNECTION
58
FITTING SUCTION LINE TO OIL PUMP
58
FITTING SUCTION LINE TO OIL PUMP
61
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
61
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
63
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
67
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
67
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
71
SCREW , Replaced By: N304017006016
71
SCREW PUMP TO BRACKET
74
NUT PUMP TO BRACKET
74
NUT , Replaced By: N913004006001
79
BRACKET OIL COOLER TO RADIATOR,5 188038
82
BRACKET OIL LINE TO RADIATOR
86
BRACKET AT BRACKET
91
BRACKET AT CROSS MEMBER
94
BRACKET OIL LINE TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
94
BRACKET , Replaced By: A6202571140
97
ANGLE LINE MOUNTING
