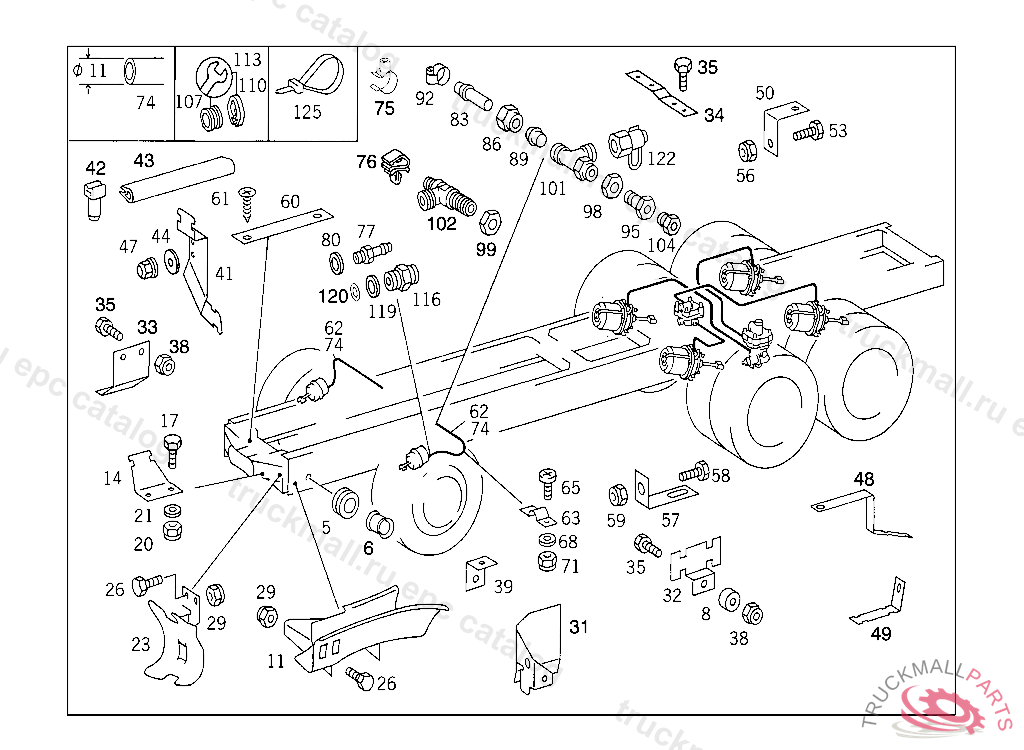

Поз.
Артикул
Описание
5
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
6
GROMMET LINE THRU FRAME
8
WASHER BRACKET TO LEFT SIDE MEMBER
11
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554303310
11
BRACKET RIGHT COMPRESSED AIR LINES, Replaced By: A6554303410
11
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554200786
11
BRACKET LEFT COMPRESSED AIR LINES
11
BRACKET RIGHT COMPRESSED AIR LINES
14
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
17
SCREW , Replaced By: N304017008021
17
SCREW PIPE CLAMP
20
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
NUT , Replaced By: N913004008001
21
WASHER , Replaced By: N000125008443
21
WASHER EXHAUST MUFFLER TO STRAP
23
BRACKET , Replaced By: A6154200086
23
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
23
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
26
SCREW BRACKET TO CROSS CONNECTION STRUT
26
SCREW , Replaced By: N304017008034
29
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
29
NUT , Replaced By: N913004008001
29
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
31
BRACKET LEFT SIDE MEMBER,FRONT
32
BRACKET BREATHER LINE TO SIDE MEMBER
35
SCREW BRACKET TO FRAME M 8X35
35
SCREW , Replaced By: N304017008027
35
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
38
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
38
NUT , Replaced By: N913004008001
38
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
NUT BRACKET TO BRACKET
41
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
41
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
42
BRACKET LINE TO FRONT PANEL
43
EDGE GUARD SECTION , Replaced By: A0019872272
43
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
44
WASHER , Replaced By: N009021005205
44
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
47
NUT BRACKET TO PIN
50
BRACKET BRACKET TO CROSS MEMBER
50
BRACKET , Replaced By: A6205243040
53
SCREW , Replaced By: N304017008034
53
SCREW BRACKET TO CROSS CONNECTION STRUT
56
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
56
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
NUT , Replaced By: N913004008001
57
BRACKET FUEL LINE TO BELL HOUSING
58
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
59
NUT STRAP TO BRACKET
59
NUT , Replaced By: N910113010000
60
BRACKET , NOT USED, Replaced By: A6554314640
60
BRACKET , Replaced By: A6554314640
60
CLAMP , Replaced By: A6554314640
60
BRACKET BRACKET TO CONTROL ARM
61
SHEET METAL SCREW CABLE MOUNTING IN CABLE DUCT, NOT USED
62
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
63
CLAMP 3/2-WAY SOLENOID VALVE
65
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
65
SCREW CLAMP TO BRACKET
68
WASHER COMPRESSED AIR LINE TO BRACKET
68
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
71
NUT , Replaced By: N913004006001
71
NUT PUMP TO BRACKET
74
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
75
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
76
CLIP COMPRSSED AIR LINE TO SUBSTRUCTURE
83
FITTING DIAPHRAGM CYLINDER,CONNECTION:
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
86
UNION NUT LINE CONNECTION
89
SEAL CONE LINE CONNECTION
89
GLAND , Replaced By: A0019901967
92
CLAMP HOSE TO FITTING AND TO OIL TANK
92
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
95
ADAPTER FITTING LINE CONNECTION TO ENGINE
98
NUT BRACKET TO SIDE MEMBER
99
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
101
T-FITTING LEFT AND RIGHT BRAKE HOSES
102
T-FITTING DIAPHRAGM CYLINDER
104
SCREW. UNION SCREW LINE CONNECTION
107
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
110
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
113
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
116
FITTING DELIVERY LINE TO PUMP
116
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
119
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
119
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
120
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
122
TEST CONNECTION
122
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
125
LOOM TIE LINE MOUNTING
125
LOOM TIE LINE MOUNTING 280 MM
