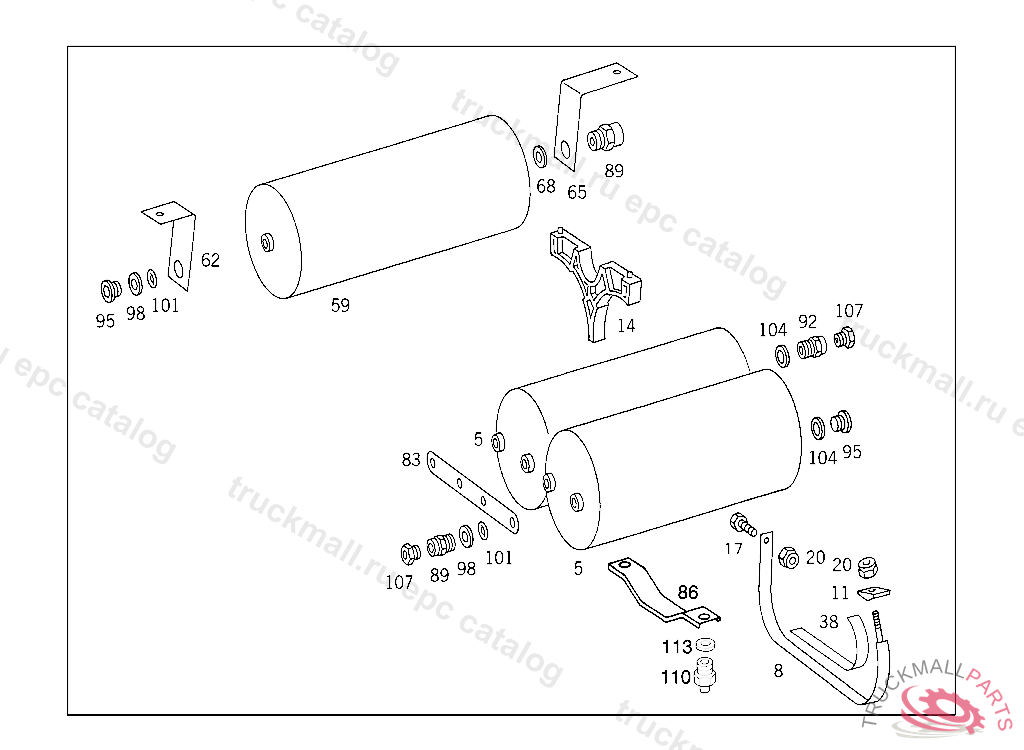

Поз.
Артикул
Описание
5
RESERVOIR40L,246 MM,8.5 BAR
5
RESERVOIR , Replaced By: A0034322301
8
STRAP SERVICE BRAKE AIR RESERVOIR
11
BASE AIR RESERVOIR STRAP
14
BASE AIR RESERVOIR,STRAP
17
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
20
NUT , Replaced By: N910113010000
20
NUT STRAP TO BRACKET
38
ADHESIVE TAPE60 MM, ORDER BY THE METER
59
RESERVOIR5.6L,114,3 MM,10 BAR
59
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0024325001
59
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0034320501
62
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
65
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 100 MM, Replaced By: A6504312540
65
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
68
WASHER RADIATOR TO RUBBER MOUNTING
68
WASHER , Replaced By: N000125010532
83
LOCK (PROTECTION AGAINST TORSION),5 934167
86
LOCK (PROTECTION AGAINST TORSION),5 934168
89
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
92
FITTING LINE CONNECTION
95
SCREW PLUG , Replaced By: N000908022011
95
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
98
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
98
THRUST RING CHECK VALVE TO AIR RESERVOIR
101
O-RING CHECK VALVE TO AIR RESERVOIR
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
107
SCREW. UNION SCREW LINE CONNECTION
110
VALVE DRAIN, Replaced By: A0004322407
110
VALVE DRAIN, Replaced By: A0004322107
110
VALVE. DRAIN VALVE DRAIN
113
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
