Поз.
Артикул
Описание
33

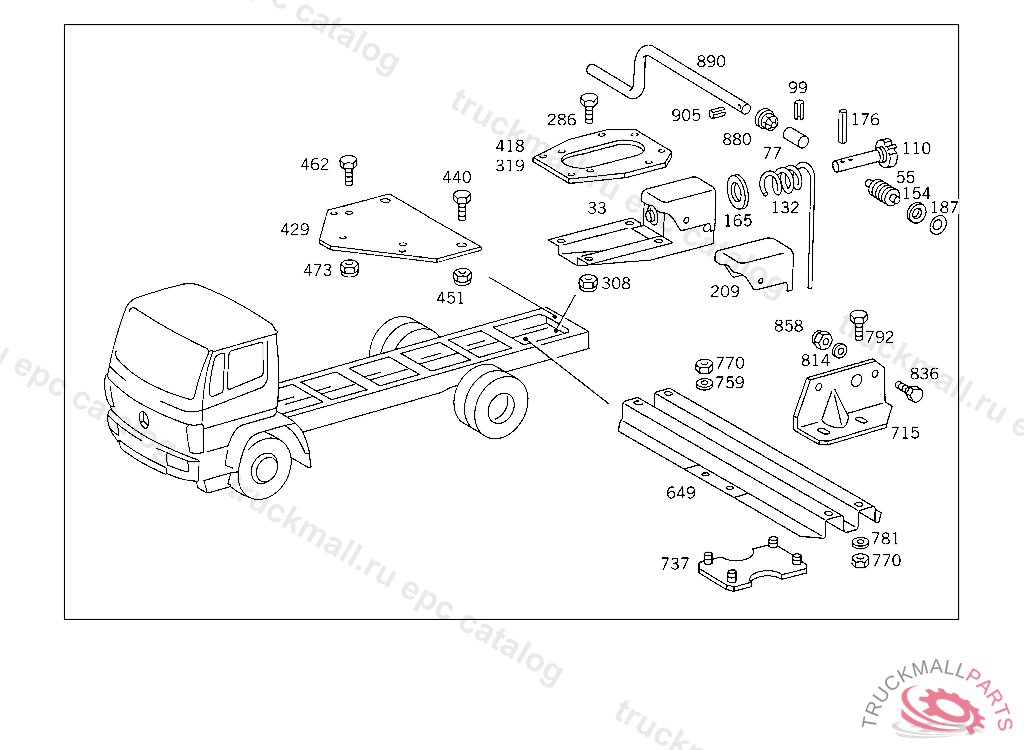

SPARE WHEEL HOIST
33
BRACKET ,K 156667
55
WORM ,5 127459, Replaced By: A6204030085, +001A6204030683
55
WORM
77
BUSHING
77
BUSHING ,K 156667
99
CLAMPING SLEEVE CRANK TO BUSHING
110
STOP GEAR ,5 127460
110
STOP GEAR ,5 127459, Replaced By: A6204030383, +001A6204030085
132
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
132
WIRE CABLE
154
WASHER WORM AND SHAFT TO BRACKET,5 127459
154
WASHER WORM AND RATCHET WHEEL TO BRACKET
154
WASHER WORM AND SHAFT TO BRACKET
165
WASHER WORM AND SHAFT TO BRACKET
165
FITTED WASHER WORM AND SHAFT TO BRACKET
176
CLAMPING PIN BRACKET TO SUPPORT
176
CLAMPING SLEEVE , Replaced By: N308752008000
187
DISC SPRING WORM AND SHAFT TO BRACKET
209
COVER PLATE SPARE WHEEL HOIST
286
SCREW END PIECE TO EXHAUST PIPE M 10X25
308
NUT , Replaced By: N910113010000
308
NUT STRAP TO BRACKET
319
MOUNTING PLATE SPARE WHEEL HOIST TO FRAME, NOT USED
418
MOUNTING PLATE SPARE WHEEL HOIST TO FRAME, NOT USED
429
MOUNTING PLATE SPARE WHEEL HOIST
440
SCREW BRAKE LINE COUPLING TO REAR CROSS MEMBER
451
NUT COMBINATION CYLINDER TO BEARING BRACKET
451
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
462
SCREW END PIECE TO EXHAUST PIPE M 10X25
473
NUT , Replaced By: N910113010000
473
NUT STRAP TO BRACKET
649
BRACKET ,K 156666
715
BRACKET SPARE WHEEL MOUNTING,RIGHT,K 156667
715
BRACKET SPARE WHEEL MOUNTING,LEFT,K 156667
715
BRACKET SPARE WHEEL MOUNTING,LEFT,K 156667
715
BRACKET SPARE WHEEL MOUNTING,LEFT
715
BRACKET SPARE WHEEL MOUNTING
715
BRACKET SPARE WHEEL MOUNTING,RIGHT
715
BRACKET SPARE WHEEL MOUNTING,LEFT,K 156666
715
BRACKET SPARE WHEEL MOUNTING,RIGHT,K 156667
715
BRACKET SPARE WHEEL MOUNTING,RIGHT,K 156666
715
BRACKET SPARE WHEEL MOUNTING,LEFT,K 156666
715
BRACKET SPARE WHEEL MOUNTING,RIGHT,K 156666
737
STAY , Replaced By: A6744000291
737
STAY ,5 365761
759
WASHER BRACKET TO FRAME
759
WASHER , Replaced By: N000125017016
770
NUT , Replaced By: N308673016001
770
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
781
WASHER BRACKET TO FRAME
781
WASHER , Replaced By: N000125017016
792
SCREW BRAKE LINE COUPLING TO REAR CROSS MEMBER
814
WASHER
836
SCREW CONSOLE TO SIDE MEMBER
858
NUT SUPPORT TO SIDE MEMBER
880
BUSHING SPARE WHEEL HOIST,4 179002
880
BUSHING CRANK
890
CRANK SPARE WHEEL HOIST
890
CRANK , Replaced By: A6504030045
905
CLAMPING SLEEVE TUBE AND SHAFT TO JOINT SLEEVE 6X22
999
BRACKET
999
PIPE
999
PLATE SPARE WHEEL HOIST TO CROSS MEMBER
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
