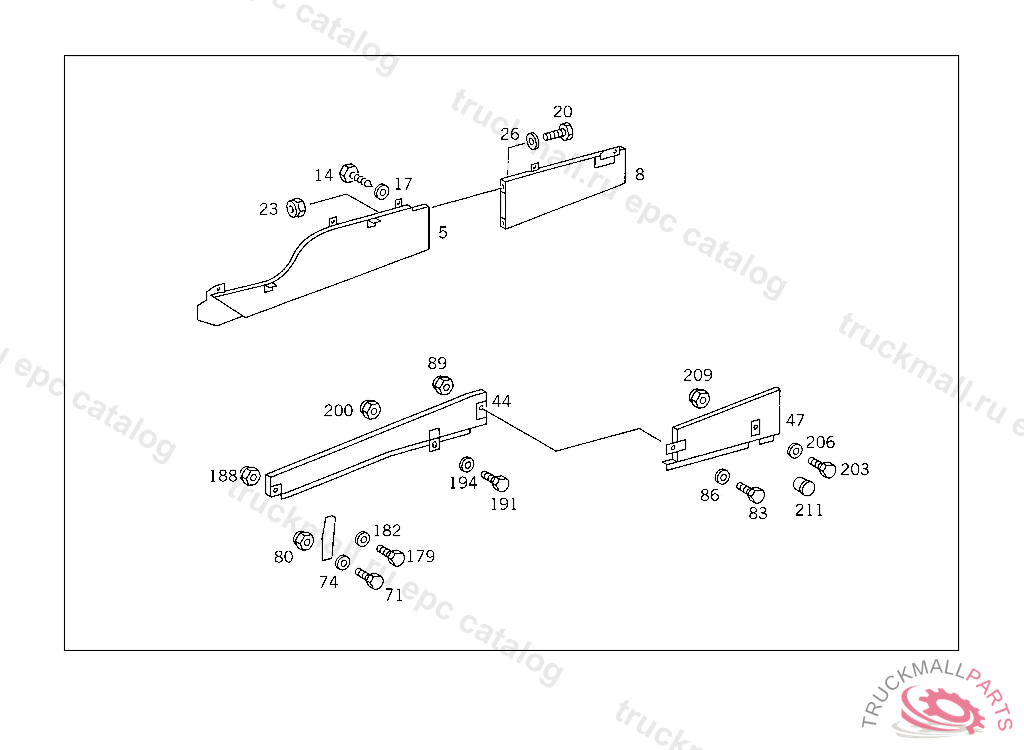

Поз.
Артикул
Описание
5
ANTINOISE CAPSULE LEFT TOP
5
ANTINOISE CAPSULE ,5 326232, Replaced By: A6735202423, +001A6745204923
8
ANTINOISE CAPSULE , Replaced By: A6745204923, +001A6735202423
8
ANTINOISE CAPSULE LEFT TOP, UP TO IDENT NO. 5 143360,FROM IDENT NO. SEE SA 24587/01
14
SHEET METAL SCREW , Replaced By: N000000000989
14
SCREW ANTINOISE CAPSULE,TOP,TO CAB SIDE MEMBER, UP TO IDENT NO. 5 143360,FROM IDENT NO. SEE SA 24587/01
17
WASHER COMPRESSED AIR LINE TO BRACKET
17
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
17
WASHER , Replaced By: N009021006208
17
WASHER COMPRESSED AIR LINE TO BRACKET
20
SCREW PIPE CLAMP
20
SCREW , Replaced By: N304017008021
23
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
26
WASHER EXHAUST MUFFLER TO STRAP
26
WASHER , Replaced By: N000125008443
44
ANTINOISE CAPSULE ,5 326232, Replaced By: A6735202323, +001A6745204823
44
ANTINOISE CAPSULE LEFT BOTTOM
47
ANTINOISE CAPSULE LEFT BOTTOM, UP TO IDENT NO. 5 143360,FROM IDENT NO. SEE SA 24587/01
47
ANTINOISE CAPSULE , Replaced By: A6745204823, +001A6735202323
83
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
86
WASHER RADIATOR TO RUBBER MOUNTING
86
WASHER , Replaced By: N000125008443
86
WASHER , Replaced By: N000125010532
86
WASHER EXHAUST MUFFLER TO STRAP
89
NUT , Replaced By: N910113010000
89
NUT STRAP TO BRACKET
179
SCREW PIPE CLAMP
179
SCREW BRACKET TO CROSS CONNECTION STRUT
179
SCREW , Replaced By: N304017008021
179
SCREW , Replaced By: N304017008034
179
SCREW RIGHT ANTINOISE CAPSULE TO CAB CONSOLE,5 505597
182
WASHER BRACKET TO LEFT SIDE MEMBER
182
WASHER EXHAUST MUFFLER TO STRAP
182
WASHER , Replaced By: N000125008443
182
WASHER , Replaced By: N009021008213
188
NUT , Replaced By: N913004008001
191
SCREW , Replaced By: N304017010002
191
SCREW BRACKET TO SIDE MEMBER
194
WASHER , Replaced By: N000125010532
194
WASHER , Replaced By: N009021010209
194
WASHER RADIATOR TO RUBBER MOUNTING
194
WASHER BRACKET TO COVERING
200
NUT STRAP TO BRACKET
200
NUT , Replaced By: N910113010000
203
SCREW , Replaced By: N304017008021
203
SCREW , Replaced By: N304017008034
203
SCREW PIPE CLAMP
203
SCREW BRACKET TO CROSS CONNECTION STRUT
206
WASHER , Replaced By: N000125008443
206
WASHER , Replaced By: N009021008213
206
WASHER EXHAUST MUFFLER TO STRAP
206
WASHER BRACKET TO LEFT SIDE MEMBER
209
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
211
PLUG
999
DAMPING STRIP RIGHT,5 326232
999
DAMPING STRIP ,5 326232
999
DAMPING STRIP ,5 326232
999
DAMPING STRIP RIGHT,5 326232
999
DAMPING STRIP ,5 326232
999
BRACKET LEFT FRONT
999
DAMPING STRIP RIGHT,5 326232
999
DAMPING STRIP RIGHT,5 326232
999
DAMPING STRIP
999
DAMPING STRIP
999
DAMPING STRIP ,5 462572
999
DAMPING STRIP ,5 462572
999
DAMPING STRIP ,5 462572
999
DAMPING STRIP RIGHT,5 462573
999
DAMPING STRIP RIGHT,5 462573
999
DAMPING STRIP ,5 326232
999
DAMPING STRIP RIGHT BOTTOM,5 326232
999
DAMPING STRIP RIGHT TOP,5 326232
999
DAMPING STRIP ,5 326232
999
DAMPING STRIP RIGHT BOTTOM,5 326232
999
DAMPING STRIP RIGHT TOP,5 326232
999
DAMPING STRIP , USED WITH LONG PEDESTAL
999
DAMPING STRIP , USED WITH LONG PEDESTAL
999
DAMPING STRIP RIGHT BOTTOM, USED WITH LONG PEDESTAL
999
DAMPING STRIP RIGHT TOP
999
DAMPING STRIP RIGHT BOTTOM, USED WITH LONG PEDESTAL5 462572
999
DAMPING STRIP RIGHT TOP, USED WITH LONG PEDESTAL5 462572
999
DAMPING STRIP RIGHT TOP, USED WITH LONG PEDESTAL5 462572
