Поз.
Артикул
Описание

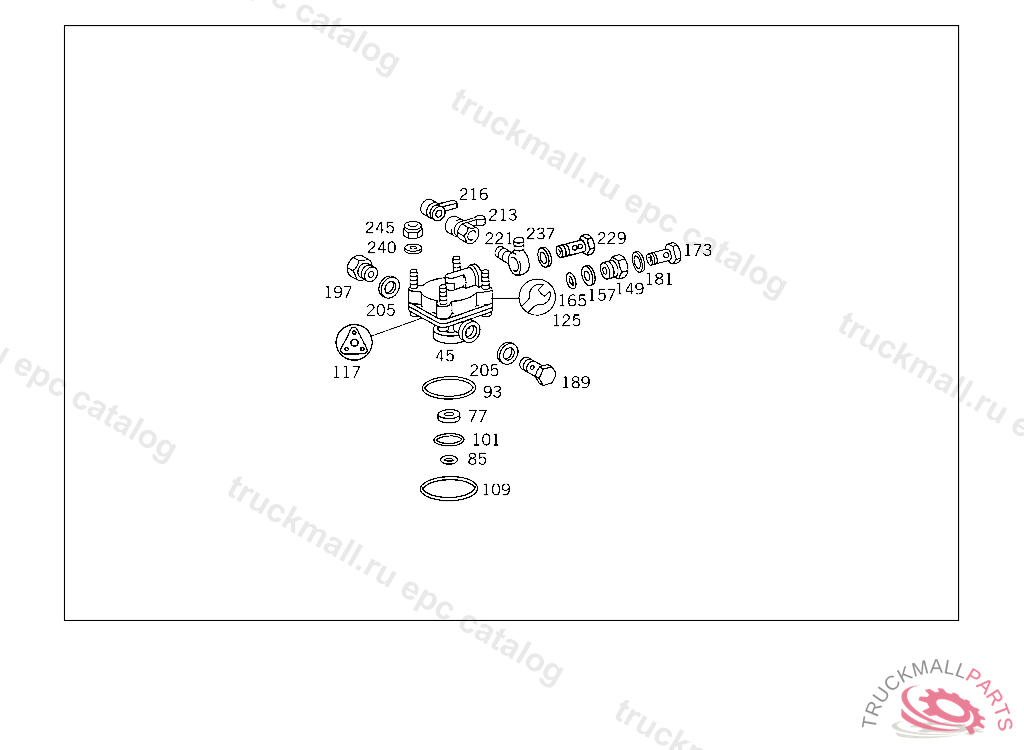

45
VALVE (RELAY VALVE) KNORR
45
VALVE (RELAY VALVE) BOSCH
45
VALVE (RELAY VALVE) GRAU
45
VALVE (RELAY VALVE) WABCO
77
VALVE SEATGRAU
85
SEAL RING22.3X2.4 MM,GRAU
93
SEAL RINGTO 000 429 28 95,GRAU
101
SEAL RING28X2 MM,GRAU
109
SEAL RING86X2 MM,GRAU
117
VALVEBOSCH
117
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
117
VALVEBOSCH
117
VALVEBOSCH
117
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
117
VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
117
REPAIR KIT , Replaced By: A0004201071
125
REPAIR KITKNORR
125
REPAIR KITWABCO
125
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
125
REPAIR KIT , Replaced By: A0004301109
149
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
157
THRUST RING CHECK VALVE TO AIR RESERVOIR
157
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
165
O-RING CHECK VALVE TO AIR RESERVOIR
173
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
181
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
189
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
197
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
205
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
213
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
213
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
213
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
213
TEST CONNECTION
216
PLUG
221
BANJO UNION BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
229
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
237
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
240
WASHER EXHAUST MUFFLER TO STRAP
240
WASHER , Replaced By: N000125008443
245
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
245
NUT , Replaced By: N913004008001
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
