Поз.
Артикул
Описание

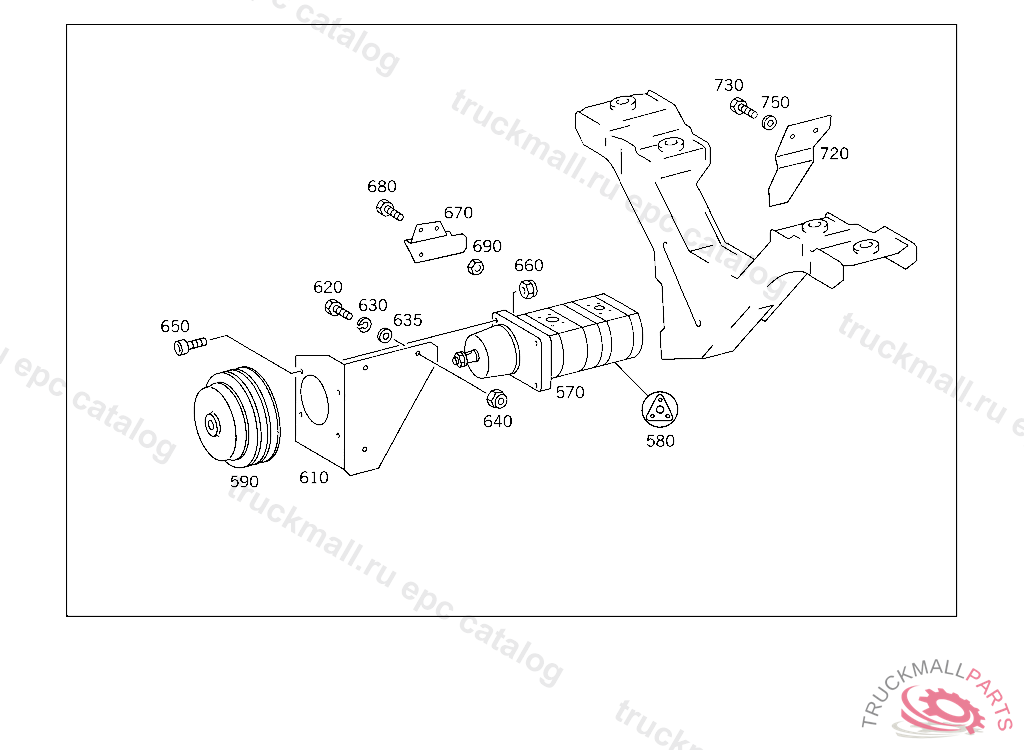

570
HYDRAULIC PUMP"BOSCH"
580
REPAIR KIT GASKET KIT
590
PULLEY HYDRAULIC PUMP
590
PULLEY , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 345185, Replaced By: A4222360110
610
PLATE HYDRAULIC PUMP
620
SCREW BRACKET TO CROSS CONNECTION STRUT
620
SCREW PIPE CLAMP
620
SCREW , Replaced By: N304017008034
620
SCREW , Replaced By: N304017008021
630
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
630
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
635
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
640
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
640
NUT , Replaced By: N913004008001
650
SCREW HYDRAULIC PUMP TO BRACKET M 8X35
660
NUT , Replaced By: N913004008001
660
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
670
BRACKET HOSE LINE TO PLATE, NOT USED
680
SCREW COVER PLATE TO BRACKET
690
NUT PUMP TO BRACKET
690
NUT , Replaced By: N913004006001
720
BRACKET HYDRAULIC PUMP,5 484925
730
SCREW , Replaced By: N304017008034
730
SCREW , Replaced By: N304017008016
730
SCREW BRACKET TO CROSS CONNECTION STRUT
730
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
750
WASHER EXHAUST MUFFLER TO STRAP
750
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
750
WASHER , Replaced By: N000125008443
999
COUPLING
999
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
999
ENGINE CROSS MEMBER FRONT BOTTOM
999
ENGINE CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 278970, Replaced By: A6753100126
999
ENGINE CROSS MEMBER FRONT
999
INTERMEDIATE PIECE CROSS MEMBER AND ENGINE MOUNTING TO CONSOLE
999
HOSE FROM WATER PUMP TO RADIATOR
