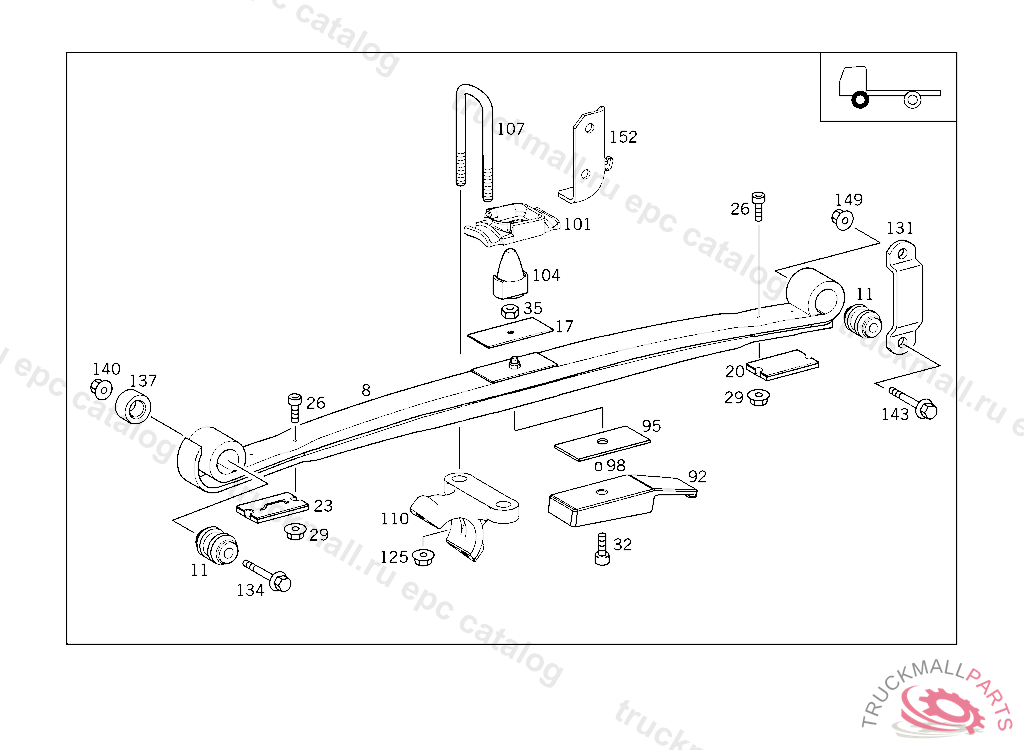

Поз.
Артикул
Описание
8
11
RUBBER MOUNTING
11
17
23
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
26
SCREW SHIM TO LEAF SPRING
29
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
32
SPRING BOLT
35
NUT BRACKET TO SIDE MEMBER
92
92
95
98
DOWEL PIN FRONT SPRINGS TO FRONT AXLE 25 MM, Replaced By: A9303230474
101
104
107
107
110
125
HEXAGON NUT W COLLAR MOUNTING PARTS M20X1.5
131
SHACKLE INSIDE,FRONT SPRING TO SPRING REAR BRACKET
131
SHACKLE OUTSIDE,FRONT SPRING TO SPRING REAR BRACKET
134
HEXAGON HEAD BOLT FRONT SPRING TO FRONT SPRING FRONT BRACKET M18X1.5X160
137
140
NUT RETARDER HOUSING TO TRANSMISSION CASE
143
HEXAGON HEAD BOLT CROSS MEMBER TO SUPPORT M18X1.5X140
143
HEXAGON HEAD BOLT. SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET M 18X140
149
NUT RUBBER MOUNTING TO BRACKET
152
152
