Поз.
Артикул
Описание

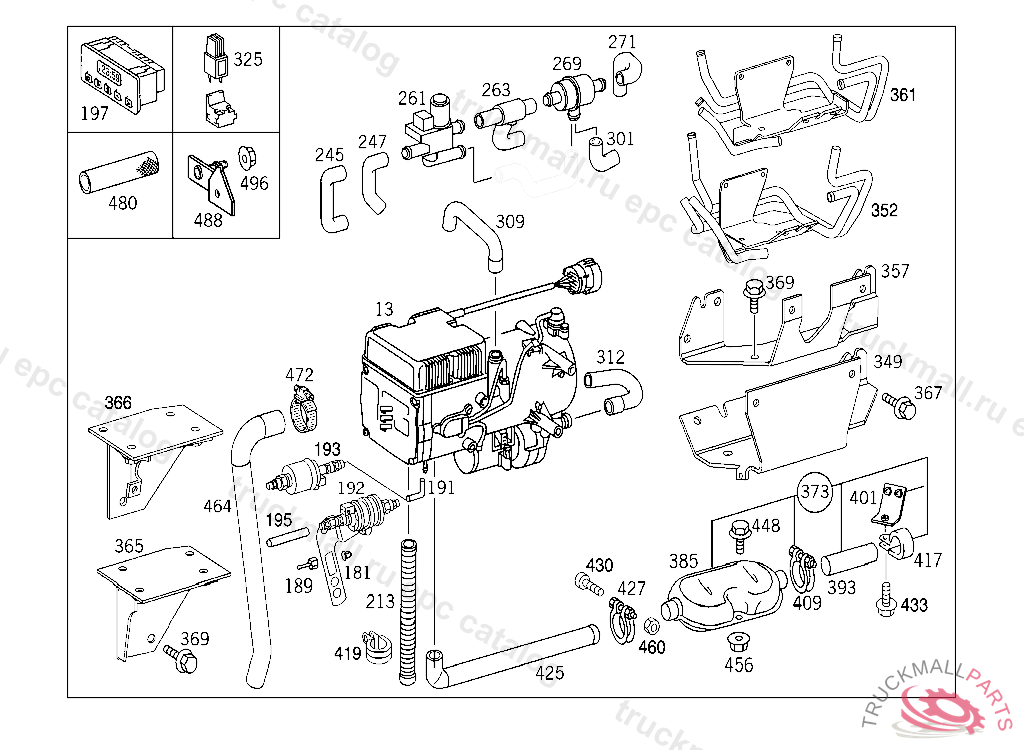

13
HEATING UNIT AUXILIARY WARM WATER HEATER D9W 24V, EBERSPAECHER,K 223600K 574789 DELIVER ADDITIONALLY 002 540 24 81 UP TO IDENT NO.: K 239320
13
HEATING UNIT AUXILIARY WARM WATER HEATER D9W 24V, EBERSPAECHER
13
HEATING UNIT ,K 223600 DELIVER ADDITIONALLY 002 540 24 81 UP TO IDENT NO.: K 239320, Replaced By: A9425001898, +001A9425004131
13
HEATING UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 291257, Replaced By: A9425001698
13
HEATING UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 291257, Replaced By: A9425001498
13
HEATING UNIT ,K 223599, Replaced By: A9425001298, +001A0004708394, +001A9425064140, +001A0025402381, +001A0025402481
13
HEATING UNIT ,K 223599, Replaced By: A9425001098, +001A0004708394, +001A9425064040, +001A0025402381, +001A0025402481
181
STRAINER
189
PIPE SOCKETTO A 942 500 14 98
191
HOSE
192
AUXILIARY PUMP ,K 546798, Replaced By: A0014702194
192
AUXILIARY PUMP PARTS KIT, FOR COMPONENT PARTS SEE SPARE PARTS LIST
193
PUMP , Replaced By: A0018350802, +001A0004760525, +002N900288010001, +002N916002009100, +001N916030000000
193
MOTOR ,K 574790
195
INTERMEDIATE PIECE ,K 574789
197
OPERATING UNIT ADDITIONAL HEATER PRESET TIME SWITCH, FOR COMPONENT PARTS SEE SPARE PARTS LIST
213
HOSE AIR INTAKE,K 574789, Replaced By: A0008313297
213
PLUG. SLEEVE ,K 574790, Replaced By: A9578300196
213
HOSE AIR INTAKE,K 574789
213
HOSE AIR INTAKE
245
HOSE
247
HOSE
261
VALVE (SOLENOID VALVE)
263
CONNECTING PIPE ,K 574789
269
THERMOSTAT
271
HOSE
301
HOSETO A 942 500 14 98
309
HOSE
312
HOSE
325
RESISTORTO 940 500 10 98
349
BRACKET , Replaced By: A9425064040
349
BRACKET HEATER UNIT TO A 942 500 14 98
352
BRACKET HEATER UNIT TO A 942 500 18 98
357
BRACKET , Replaced By: A9425064140
357
BRACKET HEATER UNIT,K 574789
361
BRACKET HEATER UNIT,K 574790
365
BRACKET HEATER UNIT,K 574789
366
BRACKET HEATER UNIT,K 574790
367
SCREWM 10X20
369
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
369
SCREW BRACKET TO SUPPORT M 12X25,K 574789
373
MUFFLER HEATER UNIT,K 223600K 574789
373
MUFFLER HEATER UNIT,K 574790
385
MUFFLER
393
PIPE LINE
401
BRACKET MUFFLER ON STRUT
409
LOOM TIE EXHAUST PIPE AT MUFFLERS 24-27 MM
409
LOOM TIE EXHAUST PIPE AT MUFFLERS 30-33 MM
409
CLAMP EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT
417
CLAMP EXHAUST PIPE TO HEATER UNIT
419
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
425
PIPE LINE HEATER UNIT
425
PIPE LINE HEATER UNIT
427
LOOM TIE EXHAUST PIPE AT MUFFLERS 30-33 MM
430
HEXALOBULAR BOLT CLAMP ON BRACKET M8X45
430
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
433
HEXALOBULAR BOLT ATTACHMENT, EXHAUST GAS LINE M6X20
433
SCREW CLAMP MOUNTING M 6X16
448
SCREW CLAMP MOUNTING M 6X16
456
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
460
NUT HORN TO BRACKET M8
464
HOSE FROM EXPANSION TANK TO HEATING PIPE
464
HOSE FROM EXPANSION TANK TO HEATING PIPE
464
HOSE , Replaced By: A9425064535
472
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
480
INSULATING HOSE BATTERY CABLE
480
INSULATING HOSE , Replaced By: A0015462630
488
BRACKET ATTACHMENT, EXHAUST GAS LINE
496
NUT HORN TO BRACKET M8
999
HOSE ,K 574790
999
BRACKET EXHAUST PIPE KP 528 093 /03, SIMPLE PART-PLEASE HAVE SHOP MADE
999
BRACKET EXHAUST PIPE KP 528 093 /02, SIMPLE PART-PLEASE HAVE SHOP MADE
999
BRACKET EXHAUST PIPE KP 528 093 /01, SIMPLE PART-PLEASE HAVE SHOP MADE
999
PIPE LINE ,K 574790
999
COVERTO A 942 500 18 98
999
PIPE SOCKETTO A 942 500 18 98
999
LIGHT EMITTING DIODE
999
HOSE ,K 574790
999
HOSE ,K 574790
