Поз.
Артикул
Описание

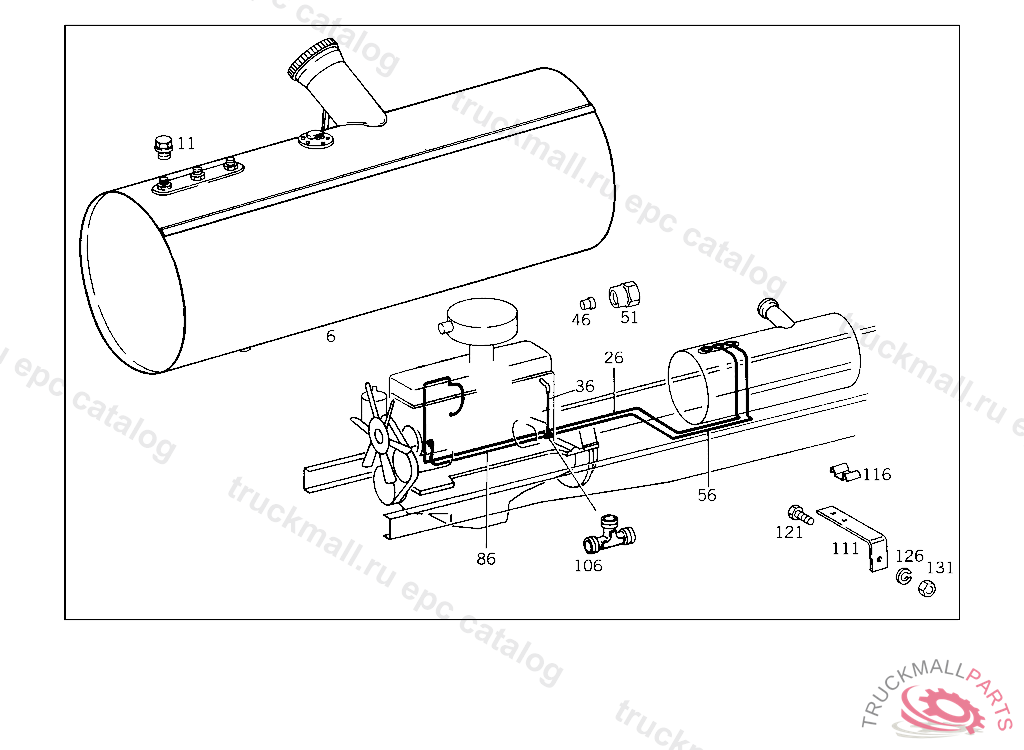

6
FUEL TANK
11
SCREW PLUG , Replaced By: N000908016000
11
SCREW PLUG
26
LINE RETURN LINE
36
LINE FROM CYLINDER HEAD TO T-FITTING
46
SEAL CONE
46
BALL-TYPE NIPPLE. SEAL CONE , Replaced By: A3449907067
51
UNION NUT FUEL HOSE
56
LINE FROM FUEL TANK TO "T" CONNECTION FITTING
86
LINE FROM T-FITTING TO HOSE
106
T-FITTING
106
T-FITTING
111
BRACKET , Replaced By: A3414767136
111
BRACKET RETURN LINE
116
CLAMP
121
SCREW COMPRESSED AIR ELBOW
126
LOCK WASHER
131
NUT LEVER TO SHIFTING SHAFT
999
GUMMISCHLAUCH 9. HOSE AT SENDER UNIT
999
BRACKET FUEL LINE
999
LINE
999
CLAMP LINE MOUNTING
999
LINE FROM TANK TO RUBBER HOSE
999
LINE FROM RUBBER HOSE TO FUEL TANK
999
LINE FROM CYLINDER HEAD TO HOSE
999
LINE RETURN, PART II, ON OM 352 ENGINE
999
LOOM TIE , Replaced By: A0029978790
999
UNION NUT INJECTION PUMP BLEEDING
