Поз.
Артикул
Описание
5

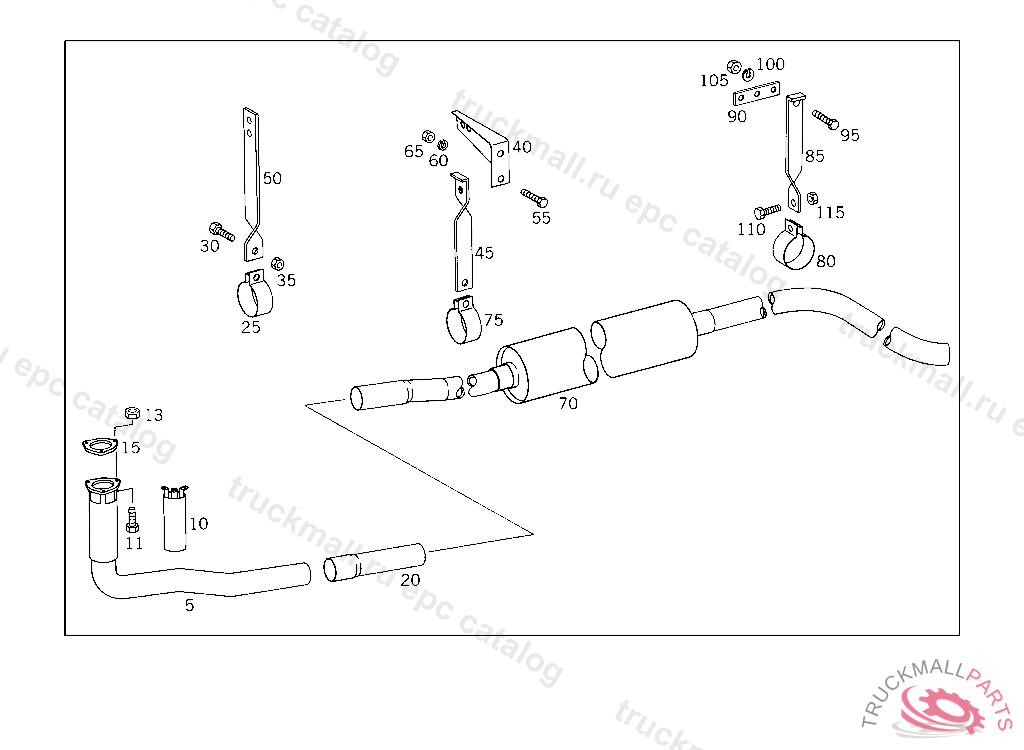

EXHAUST PIPE FRONT,A 043054
10
PROTECTIVE PLATE , INAPPLICABLE TO SUPERCHARGING SYSTEM377267
11
SCREW BRACKET TO FRAME SIDE MEMBER
13
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
15
FLANGE GASKET , Replaced By: A4424920280
15
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, UP TO CHASSIS 4 409726,FROM CHASSIS,NO LONGER REQUIRED
20
CONNECTOR ,A 043054
25
CLAMP PIPE LINE TO PIPE LINE
30
SCREW , Replaced By: N304017008034
35
NUT LEVER TO SHIFTING SHAFT
40
SUPPORT ,A 043054
45
BRACKET ,A 043054
50
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
55
SCREW COMPRESSED AIR ELBOW
60
LOCK WASHER
65
NUT LEVER TO SHIFTING SHAFT
80
CLAMP EXHAUST MUFFLER,REAR 60,5MM
85
BRACKET ,A 006846A 043054
90
BRACKET ,A 006846A 043054
95
SCREW
100
LOCK WASHER
105
NUT LEVER TO SHIFTING SHAFT
110
SCREW , Replaced By: N304017008034
115
NUT LEVER TO SHIFTING SHAFT
999
EXHAUST MUFFLER WITH PIPE ,A 035151
999
BRACKET ,A 006845
999
SCREW
