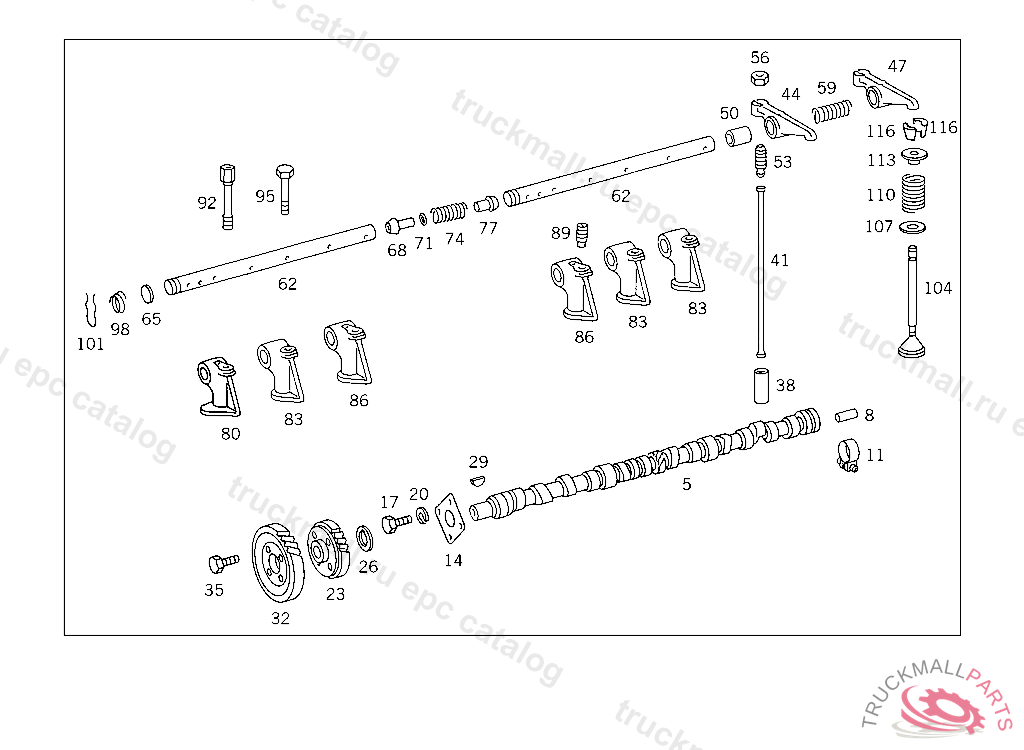

Поз.
Артикул
Описание
5
CAMSHAFT ,082678
5
CAMSHAFT , Replaced By: A3520502101
8
CYLINDRICAL PIN
14
THRUST WASHER ,104742, 340.919/002-007/010-014 INAPPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
14
THRUST WASHER , Replaced By: A3120520262
14
PART NAME MISSING , Replaced By: A3120520262
17
SCREW COVER PLATE TO COVER PLATE
17
SCREW , Replaced By: A3529900704
17
SCREW COVER PLATE TO COVER PLATE
20
LOCK WASHER
23
DRIVE GEAR
26
SPACER RING ,104742, 340.919/002-007/010-014 INAPPLICABLE TO ENGINES WITH CAMSHAFT DRIVEN INJECTION TIMING DEVICE
29
WOODRUFF KEY CRANKSHAFT
32
CAMSHAFT GEAR
35
SCREW BRACKET TO CONSOLE M 8X25
38
VALVE TAPPET STANDARD 27.98 MM-27.99 MM
38
VALVE TAPPET REPAIR SIZE III 28.73 MM - 28.74 MM
38
VALVE TAPPET , Replaced By: A3520540801
38
VALVE TAPPET , Replaced By: A3520540701
38
VALVE TAPPET , Replaced By: A3520540601
38
VALVE TAPPET , Replaced By: A3520540501
38
VALVE TAPPET REPAIR SIZE I 28.18 MM-28.19 MM
38
VALVE TAPPET REPAIR SIZE II 28.48 MM-28.49 MM
41
PUSH ROD
41
PUSH ROD
41
PUSH ROD , Replaced By: A3520540205
41
PUSH ROD , Replaced By: A3520540205
41
PUSH ROD
44
ROCKER ARM LEFT NO.1,NO.3,NO.5,NO.7
44
ROCKER ARMNO. 1, NO. 3, NO. 5, NO. 7
47
ROCKER ARMNO. 2, NO. 4, NO. 6, NO. 8
47
ROCKER ARMNO.2,NO.4,NO.6,NO.7
50
BUSHINGTO 366 050 05 33,04 34
50
BUSHINGTO 352 050 06 34,352 050 10 33
53
BALL PIN ROCKER ARM
56
NUT
56
NUT , Replaced By: A4229900051
59
SPRING LONG,ROCKER ARM SPACING
62
ROCKER ARM SPINDLE
65
EXPANSION PLUG LATERAL P.T.O. WITH REVERSE SPEED
65
EXPANSION PLUG , Replaced By: N000470014000
68
OIL PIPE
68
SPACER TUBETO 312 055 05 53
71
SEAL RING
74
SPRING
74
SPRINGTO 312 055 05 33
77
SPACER TUBE
77
SPACER TUBE
80
ROCKER ARM BRACKET OIL SUPPLY NO.1
80
ROCKER ARM BRACKET , Replaced By: A3520550010
80
ROCKER ARM BRACKET , Replaced By: A3520550610
83
ROCKER ARM BRACKET , Replaced By: A3520550110
83
ROCKER ARM BRACKET , Replaced By: A3520550410
83
ROCKER ARM BRACKETNO.2,5,6
86
ROCKER ARM BRACKETNO.3,4
86
ROCKER ARM BRACKET , Replaced By: A3520550210
86
ROCKER ARM BRACKETNO.3
89
HEADLESS SETSCREW PLANET GEAR, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
92
SCREW
95
SCREW , Replaced By: A0029903804
98
SPRING
101
SPRING
104
EXHAUST VALVE
104
EXHAUST VALVE , Replaced By: A3660500627
104
EXHAUST VALVE , Replaced By: A3660500027
104
INTAKE VALVE , Replaced By: A3520500026
104
EXHAUST VALVE
104
EXHAUST VALVE ,042963
107
WASHER
110
VALVE SPRING
113
SPRING RETAINER
116
VALVE COLLET
116
VALVE COLLET
