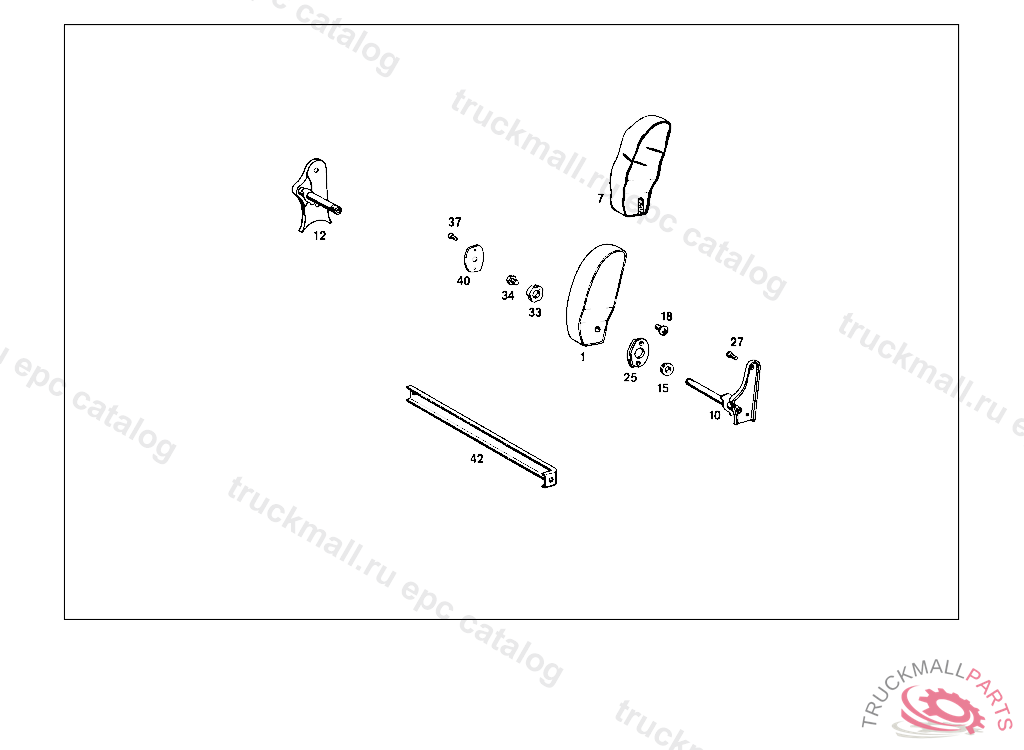

Поз.
Артикул
Описание
1
FOLDING ARMREST , STATE COLOR NUMBER WHEN ORDERING
7
COVER , STATE COLOR NUMBER WHEN ORDERING
10
SUPPORT
12
SUPPORT , FROM CHASSIS:114.010 063514 114.011 005103 114.015,017 080001 114.021 006200 114.022 015595 114.023 004234
12
SUPPORT , Replaced By: A1159703620, +001A1159132728, +002N007987006176
15
GUIDE
18
SCREW HANDLE TO LID
25
STOP
27
SCREW
33
NUT ARMREST TO SUPPORT
33
NUT , Replaced By: A1099900160, +001A1099900001
34
SCREW , Replaced By: N000933005036
34
SCREW
34
SCREW SHUT-OFF VALVE TO BRACKET
37
SCREW REFLECTOR TO BRACKET
40
PLATE
40
PLATE , Replaced By: A1009730911
42
RAIL
999
SEALING CORD600 MM, COLOR NO.: FOR TYPES 100,107,114,115 SEE PASSENGER CAR EQUIPMENT MANUAL,FOR TYPE 116, SEE FOOTN. 95 ORDER BY THE METER
999
NUT RETAINER USED WITH IMITATION LEATHER TRIM, 123 297291 ALSO INSTALLED ON 306113-347407 133 002318 ALSO INSTALLED ON 004116-012658
999
WELT1X900MM,1X920MM
999
PLATE , FROM CHASSIS:114.010 016431 114.015,017 013597 115.010 014485 115.015 011502 115.110,112 031352 115.115 013966
999
COVER , STATE COLOR NUMBER WHEN ORDERING
999
COVER , STATE COLOR NUMBER WHEN ORDERING
999
FOLDING ARMREST , STATE COLOR NUMBER WHEN ORDERING
999
COVER
999
COVER , STATE COLOR NUMBER WHEN ORDERING
999
COVER
999
FOLDING ARMREST
999
SUPPORT , Replaced By: A1159703620, +001A1159132728, +002N007987006176
999
FOLDING ARMREST
999
FOLDING ARMREST
999
GARNISH MOULDING
999
GARNISH MOULDING
999
FOLDING ARMREST COMPLETE,BUT LESS COVER
999
MOUNTING MATERIAL
999
FOLDING ARMREST , Replaced By: A1159702430
999
MOUNTING MATERIAL
999
SCREW , Replaced By: N007988006169
999
SCREW
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
NUT CYLINDER TO BRACKET TO0002902112
999
SCREW
999
NUT BATTERY MOUNTING
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
