Поз.
Артикул
Описание

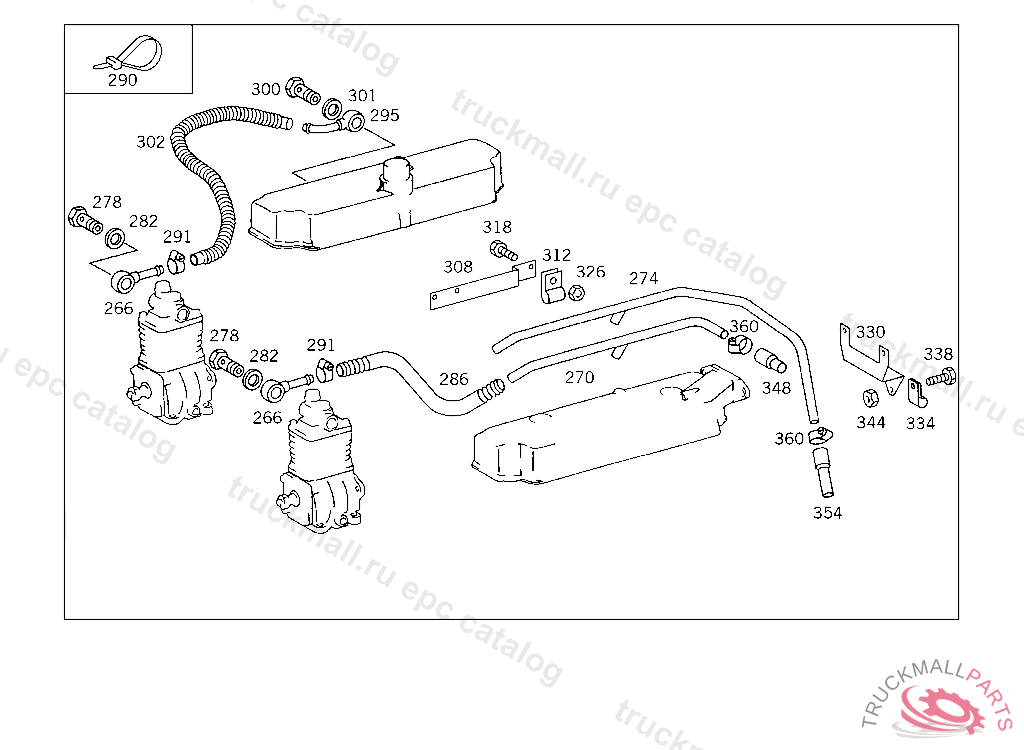

266
V-BELT , Replaced By: A0059975392
266
INTAKE PIPE
270
INTAKE PIPE ,571207 352.900/000/019/400
270
INTAKE PIPE ,571207 352.900/000/019/400
270
INTAKE PIPE , Replaced By: A3521302401
270
INTAKE PIPE
274
INTAKE PIPE
278
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
278
HOLLOW SCREW SUCTION LINE TO OIL PUMP
282
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
282
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
286
HOSE , ORDER BY THE METER
286
HOSE , Replaced By: A4969970082
286
HOSE , Replaced By: A0029979282
286
HOSE FROM AIR CLEANER TO AIR COMPRESSOR
286
HOSE , Replaced By: A0009970152
286
HOSE , Replaced By: A4969970082
286
HOSE , Replaced By: A0009977552
286
HOSE , Replaced By: A0009970152
290
LOOM TIE LINE MOUNTING 280 MM
291
LOOM TIE , Replaced By: N000000000668
291
CLAMP , Replaced By: A0069970490
291
CLAMP PRESSURE REGULATOR
291
CLAMP25-40X13 MM
295
INTAKE PIPE FROM TURBOCHARGER TO AIR COMPRESSOR
295
INTAKE PIPE FROM CYLINDER HEAD COVER TO AIR COMPRESSOR,571206 352.900/000/019/400
295
INTAKE PIPE AIR COMPRESSOR INTAKE PIPE TO CYLINDER HEAD COVER
295
INTAKE PIPE , Replaced By: A3521302301
295
INTAKE PIPE , Replaced By: A3521302301
295
INTAKE PIPE
300
HOLLOW SCREW BREATHER LINE TO CYLINDER HEAD COVER
301
SEAL RINGTO 376 131 74 01
301
SEAL RING LINE CONNECTION
302
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
302
HOSE , Replaced By: N900271015037
308
BRACKET CLAMPED UNDER FUEL FILTER
312
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
318
SCREW CABLE HARNESS MOUNTING
326
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
330
BRACKET AIR INTAKE HOSE
334
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
338
SCREW BRACKET TO EXHAUST PIPE BRACKET
344
NUT
344
NUT , Replaced By: N304032008006
348
HOSE CONNECTION OF SUCTION LINE &CONNECTION
354
HOSE CONNECTION OF SUCTION LINE &CONNECTION
360
CLAMP25-40X13 MM
360
LOOM TIE , Replaced By: N000000000668
360
CLAMP , Replaced By: A0069970490
999
CYLINDER HEAD
999
SEAL RING VALVE
999
HOUSING
999
PISTON RING , Replaced By: N024911075000
999
LOCK
999
CLAMP
999
BREATHER PIPE
999
SHIM
999
COVER
999
COVER
999
EXPANSION PLUG TIMING CASE WITH CONNECTION TO AIRCOMPRESSOR OIL-RETURN LINE
999
BRACKET BREATHER PIPE
999
LINE , Replaced By: A3660700032
999
INTAKE PIPE AIR COMPRESSOR
999
INTAKE PIPE FROM CYLINDER HEAD COVER TO AIR COMPRESSOR
999
OIL LINE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0099979382, +002N915052004011
999
PULLEY WATER PUMP
999
PULLEY
999
WASHER , Replaced By: N000125010532
999
SCREW PROPELLER SHAFT TO COUPLING FLANGE
999
SCREW BRACKET TO CYLINDER HEAD
999
STUD BOLT BRACKET TO TRANSMISSION
999
SEAL RING RELAY VALVE,CONNECTION: "20"
999
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
999
PISTON RING
999
HEXAGON HEAD BOLT. SCREW CLUTCH PRESSURE PLATE TO FLYWHEEL M 8X1,25X60
999
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
999
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
