Поз.
Артикул
Описание

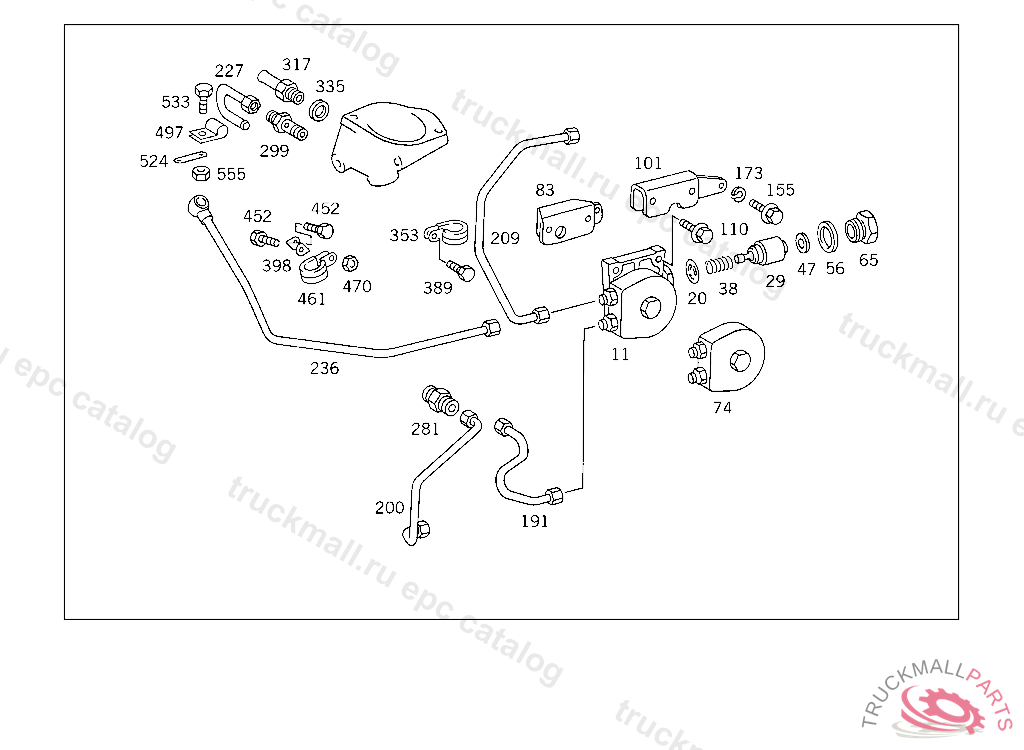

11
PREHEATER , Replaced By: A3660780017, +001A0000700079
20
WASHER
29
THERMOSTAT
38
SPRING
47
WASHER
56
SEAL RING TO PLUG AIR COMPRESSOR CYLINDER HEAD TO 003 131 48 01
65
SCREW
74
HEAT EXCHANGER
83
BRACKET BRACKET TO ENGINE,REAR, TO BE ADAPTED DURING ASSEMBLY
101
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 371443YEAR OF MANUFACTURE 1995, Replaced By: A3640701940
101
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 118047/90, Replaced By: A3640701240
101
BRACKET FUEL PREHEATING
110
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
155
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
173
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
191
LINE FROM CRANKCASE WATER DRAIN TO FUEL HEAT EXCHANGER
200
LINE FROM CRANKCASE WATER DRAIN TO FUEL HEAT EXCHANGER
209
LINE FROM HEAT EXCHANGER TO THERMOSTAT HOUSING
209
LINE FROM HEAT EXCHANGER TO THERMOSTAT HOUSING
227
BREATHER LINE THERMOSTAT HOUSING, UP TO ENGINE 253402 YEAR OF MANUFACTURE 1992
236
LINE FROM HEAT EXCHANGER TO THERMOSTAT HOUSING
236
LINE FROM HEAT EXCHANGER TO THERMOSTAT HOUSING
236
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 118047/90, Replaced By: A3642000852
281
CONNECTOR CYLINDER CRANKCASE WATER DRAIN
281
CONNECTOR CYLINDER CRANKCASE WATER DRAIN
299
FITTING COOLING WATER LINE TO THERMOSTAT
317
FITTING COOLING WATER LINE TO THERMOSTAT
335
SEAL RING DELIVERY LINE
353
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
389
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
398
BRACKET COOLING WATER LINE TO THERMOSTAT, SIMPLE PART-PLEASE HAVE SHOP MADE
452
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
461
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
470
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
497
CLAMP LINE MOUNTING
524
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
524
BRACKET , Replaced By: A3604293140
533
SCREW , Replaced By: N304017006018
533
SCREW COVER PLATE TO COVER PLATE M 6 X 12
555
NUT BALL PIVOT TO LEVER
999
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
999
SCREW CLAMP ON BRACKET
999
SCREW STOP TO BATTERY CASE
999
SEAL RING INJECTION PUMP
999
SEALING RING. SEAL RING ENGINE BREATHING
999
FITTING , Replaced By: A0009907871
999
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
999
BANJO UNION FROM FEED PUMP TO HEAT EXCHANGER
999
BANJO UNION
999
HOSE FROM CRANKCASE WATER DRAIN TO FUEL HEAT EXCHANGER
999
LINE FROM HEAT EXCHANGER TO THERMOSTAT HOUSING, FROM ENGINE 253403 YEAR OF MANUFACTURE 1992
999
LINE FROM CRANKCASE WATER DRAIN TO FUEL HEAT EXCHANGER
999
HOUSING
999
PREHEATER , Replaced By: A3660700079
999
FITTING THERMOSTAT HOUSING BREATHING
999
LINE FROM HEAT EXCHANGER TO THERMOSTAT HOUSING
999
LINE FROM HEAT EXCHANGER TO THERMOSTAT HOUSING
999
LINE HEAT EXCHANGER TO CYLINDER HEAD
999
LINE FROM HEAT EXCHANGER TO THERMOSTAT HOUSING
999
BRACKET FUEL PREHEATING
999
PREHEATER , Replaced By: A3660700079
999
CONNECTOR PIPE SOCKET TO THERMOSTAT HOUSING
999
SEAL RING
999
SEAL RING
999
HOLLOW SCREW
