Поз.
Артикул
Описание

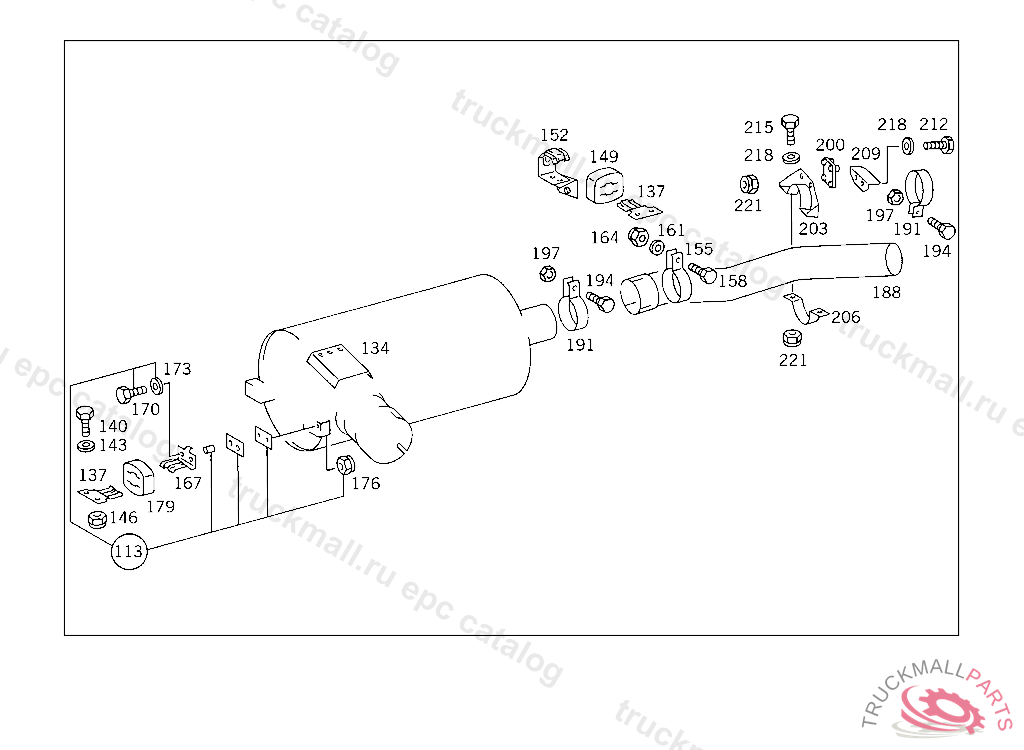

113
SUSPENSION EXHAUST MUFFLER SUSPENSION
134
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
137
CONSOLE EXHAUST MUFFLER TO SUBSTRUCTURE
140
SCREW END PIECE TO EXHAUST PIPE M 10X25
143
WASHER RADIATOR TO RUBBER MOUNTING
143
WASHER , Replaced By: N000125010532
146
NUT , Replaced By: N910113010000
146
NUT STRAP TO BRACKET
149
DAMPING PAD EXHAUST MUFFLER SUSPENSION
152
SUPPORT REAR EXHAUST MUFFLER
155
CLAMP , Replaced By: N071555100501
155
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
158
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
161
WASHER , Replaced By: N000125010532
161
WASHER RADIATOR TO RUBBER MOUNTING
164
NUT STRAP TO BRACKET
164
NUT , Replaced By: N910113010000
167
CONSOLE EXHAUST MUFFLER
170
SCREW , Replaced By: N304017008034
170
SCREW BRACKET TO CROSS CONNECTION STRUT
173
WASHER BRACKET TO CROSS MEMBER
176
NUT , Replaced By: N913004008001
179
DAMPING PAD EXHAUST MUFFLER SUSPENSION
188
REAR EXHAUST PIPE
191
CLAMP , Replaced By: N071555104501
191
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
194
SCREW END PIECE TO EXHAUST PIPE M 10X25
197
NUT BRACKET TO SUPPORT AND TO END PIECE
200
DAMPING PAD , Replaced By: A0004920082
200
DAMPING PAD MOUNTING PARTS
200
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
203
BRACKET EXHAUST PIPE TO SUPPORT
206
BRACKET AT BRACKET
209
PROTECTIVE PLATE REAR EXHAUST PIPE
212
SCREW EXHAUST PIPE TO BRACKET
215
SCREW VALVE TO BRACKET
218
WASHER EXHAUST MUFFLER TO STRAP
218
WASHER , Replaced By: N000125008443
221
NUT , Replaced By: N913004008001
999
EXHAUST PIPE
