Поз.
Артикул
Описание

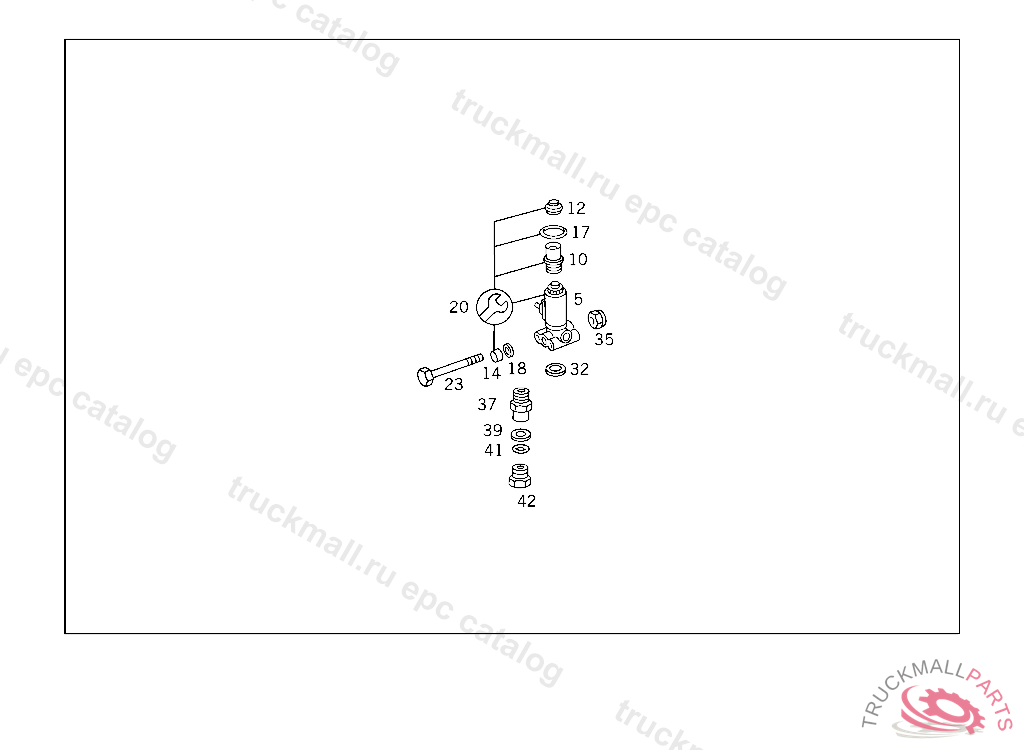

5
VALVE SOLENOID VALVE,5 450429 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
VALVE , Replaced By: A0049975736
5
VALVE (3/2-WAY SOLENOID VALVE) EKS
5
VALVETO 003 997 11 36/12 36
10
VALVE PARTTO 004 997 00 36,5 757289 AUSSERDEM EINGEBAUT IN 5 759173
12
PROTECTIVE CAPWABCO
14
SEAL RING VALVE TO VALVE
17
SEAL RINGWABCO
18
SEAL RINGTO 000 429 24 30
20
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
23
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
23
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
35
NUT , Replaced By: N913004008001
37
FITTING LINE CONNECTION
39
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
41
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
41
SEAL RING 3/2-WAY VALVE
42
SCREW. UNION SCREW , Replaced By: A0009973734
42
SCREW. UNION SCREW LINE CONNECTION
