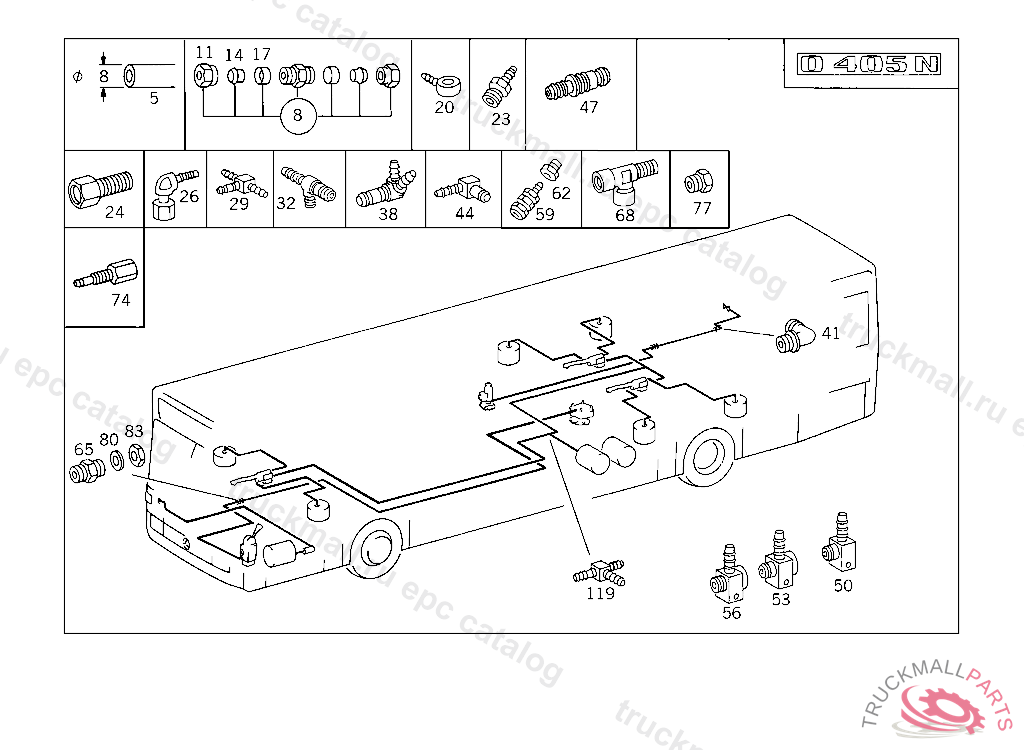

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
5
PLASTIC PIPE AERATION, ORDER BY THE METER
5
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
8
FITTING , Replaced By: A0029905971
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
14
GLAND LINE CONNECTION
17
SLEEVE LINE CONNECTION
20
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
20
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
20
BANJO UNION HEATING CONNECTION,K 169122
20
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
23
FITTING
24
ADAPTER FITTING AT BRACKET
26
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION M 14 / 6 MM
26
ELBOW FITTING. T-FITTING LINE CONNECTION TO ENGINE TO M16
29
T-FITTING , Replaced By: A0059903270
29
T-FITTING HOSE WIDTH, 6/4 MM ,TO M 16
38
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
41
ELBOW FITTING BETWEEN THE LINES,K 130132
41
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
41
ELBOW FITTING , Replaced By: A0049905371
41
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
44
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
44
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
47
CONNECTOR HOSE WIDTH, 6 MM, TO M22
47
CONNECTOR , Replaced By: A0029905478
50
CONNECTOR COMPRESSED AIR LINE TO CLUTCH BOOSTER
53
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO 008 997 90 82
56
CONNECTOR DISTRIBUTOR TO FRAME
56
SEAL RING , Replaced By: A0229973948
56
SEAL RING CONNECTOR 11.8X2 MM
59
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
62
SCREW. UNION SCREW , Replaced By: A0009973734
62
SCREW. UNION SCREW LINE CONNECTION
65
FITTING HYDRAULIC LINE TO BRACKET,K 130132
68
FITTING BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
74
COUPLING SPRING-LOAD-ACCUMULATOR RELEASE/ EMERGENCY-RELEASE PRESSURE
77
SCREW. UNION SCREW , Replaced By: A0009973734
77
SCREW. UNION SCREW LINE CONNECTION
80
WASHER , Replaced By: N000125015019
80
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
83
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
119
T-FITTING , Replaced By: A0059903170
119
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 4MM / 4MM, VOSS 230
119
T-FITTING 3/2-WAY VALVE
119
T-FITTING , Replaced By: A0059903270
119
T-FITTING HOSE WIDTH, 6/4 MM ,TO M 16
