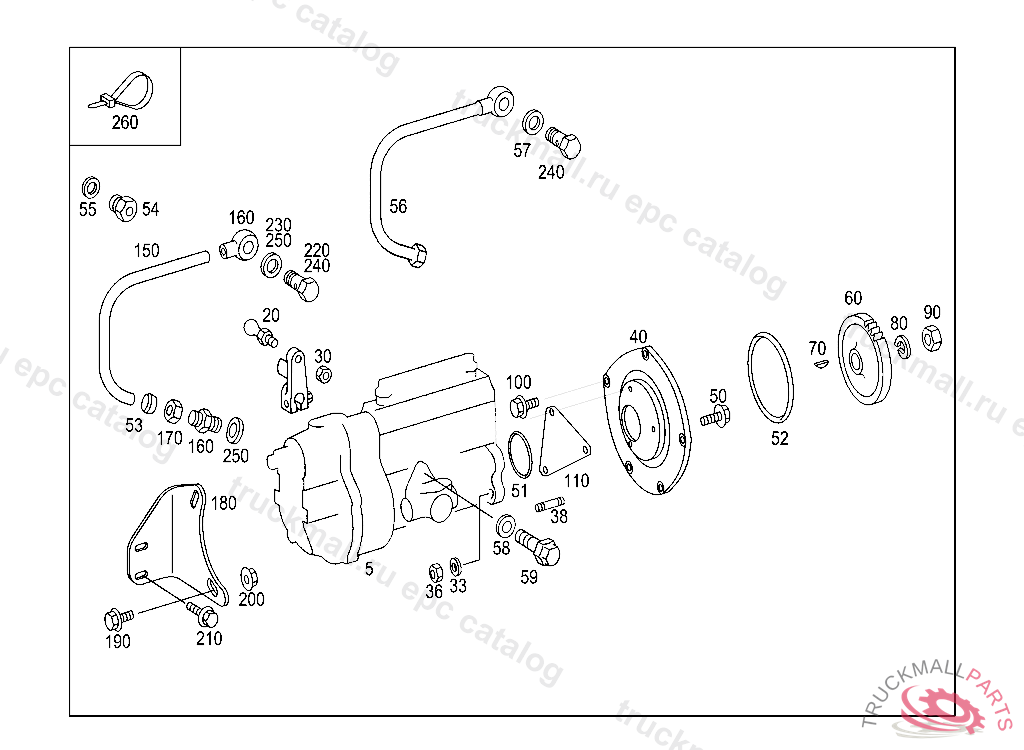

Поз.
Артикул
Описание
5
INJECTION PUMP
20
BALL PIVOT
30
NUT , Replaced By: N913023006001
40
SUPPORT INJECTION PUMP
50
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
60
DRIVE GEAR
70
WOODRUFF KEY
80
LOCK WASHER RAIL TO SUBSTRUCTURE
90
NUT TRAILER COUPLING TO FRAME
100
SCREW BRACKET TO INTAKE MANIFOLD
110
GASKET
150
HOSE , Replaced By: A0089979082
160
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
160
BANJO UNION
180
BRACKET INJECTION PUMP TO CRANKCASE
190
SCREW BRACKET TO CAB REAR PANEL M 8X20
200
HEXAGON NUT. NUT , Replaced By: N913023008002
210
SCREW BRACKET TO CAB REAR PANEL M 8X20
220
BANJO BOLT. HOLLOW SCREW
230
SEAL RING LINE CONNECTION
240
HOLLOW SCREW DELIVERY LINE TO MANIFOLD PRESSURE COMPENSATOR
250
SEAL RING SCREW PLUG
260
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
260
LOOM TIE , Replaced By: A0019978390
999
BALL STUD. BALL PIVOT ROD TO LEVER
999
NUT RELAY TO BRACKET M5
