Поз.
Артикул
Описание

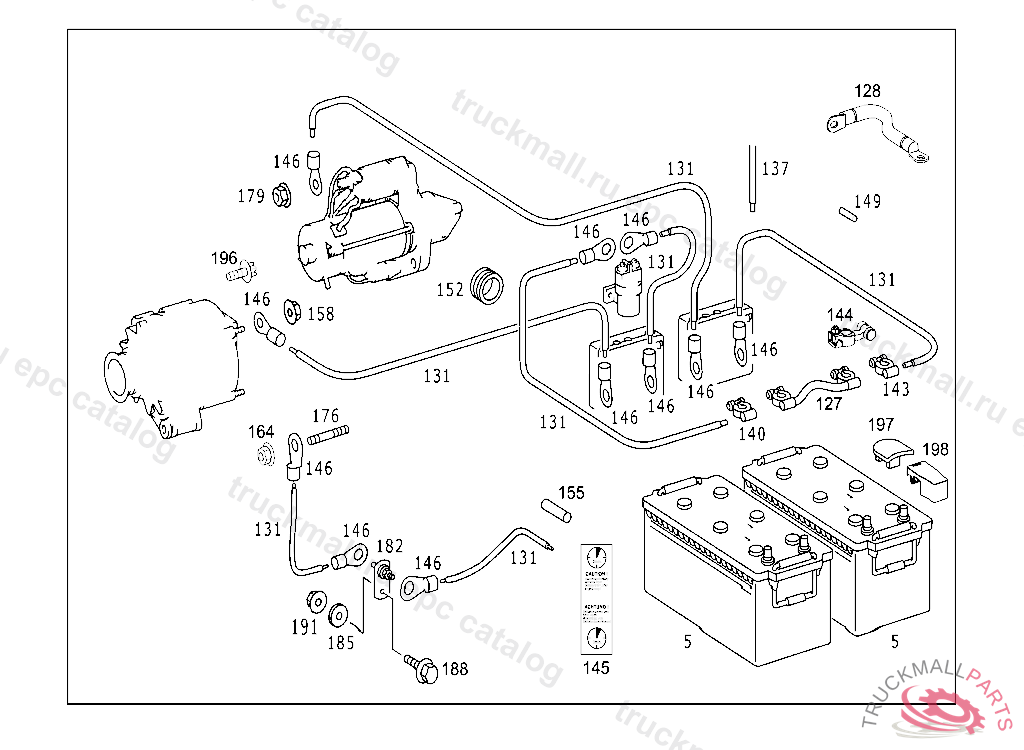

5
BATTERY12V/120 AH
5
BATTERY12V/120AH
5
BATTERY FILLED AND CHARGED 12V/120AH, SUPER HEAVY DUTY TECHNOLOGY, STATE INDEX 26 WHEN ORDERING
5
BATTERY12V/120AH, Replaced By: A0009823908
5
BATTERY12V/115AH, Replaced By: A0035418801
5
BATTERY12V/120AH, Replaced By: A0009821508
127
POSITIVE CABLE BATTERY 50 MM2, 190 MM
127
POSITIVE CABLE BATTERY 50 MM2, 190 MM
128
POSITIVE CABLE FROM RELAY TO POSITIVE HOUSING
131
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
137
ELECTRIC CABLE RUSSET BROWN 16 MM2, ORDER BY THE METER
137
ELECTRIC CABLE RED 16 MM2, ORDER BY THE METER
140
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
143
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
146
CABLE SHOE BATTERY CABLE 10-70 MM
149
GROMMET LINE MOUNTING 10.0 MM
152
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
155
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
158
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
158
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
158
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
158
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
158
NUT RELAY TO BRACKET M5
164
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
176
STUD. SCREW GROUND CONNECTION
179
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
179
NUT. HEXAGON NUT STRAP TO CONSOLE M12X1.5
182
CONNECTOR GROUND CABLE TO BATTERY FRAME
185
WASHER
188
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
191
NUT BRACKET TO FIRE WALL
