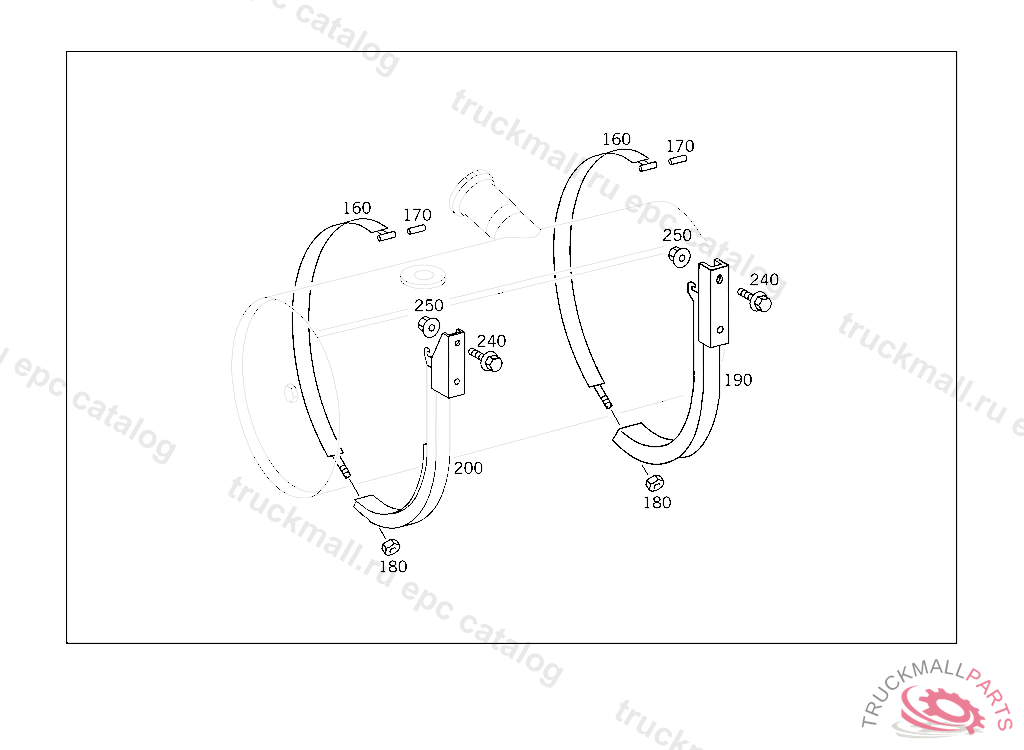

2523 - 2528 - 375.321 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
160
STRAP FUEL TANK
160
STRAP FUEL TANK
170
CLAMPING SCREW STRAP TO SUPPORT
180
NUT STRAP TO SUPPORT
190
SUPPORT REAR TANK
190
SUPPORT FRONT TANK
200
SUPPORT REAR TANK
200
SUPPORT FRONT TANK
240
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
240
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
240
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
250
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
