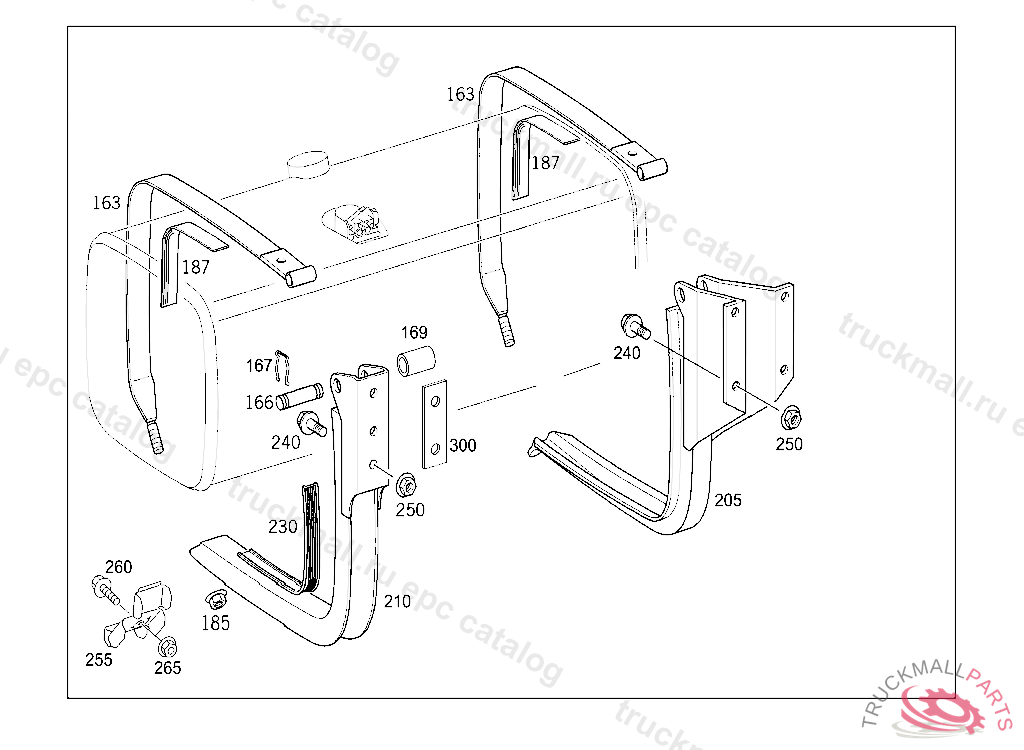

2523 - 2528 - 375.321 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
163
STRAP FUEL TANK
163
STRAP FUEL TANK
166
PIN STRAP TO SUPPORT
166
CLAMPING BOLT STRAP TO SUPPORT
167
CLIP STRAP TO SUPPORT
169
HOSE STRAP TO SUPPORT 60MM
185
NUT STRAP TO SUPPORT M 12X1.5
187
PAD STRAP 61.5MM
187
PAD STRAP 61 MM
210
SUPPORT REAR TANK
210
SUPPORT FRONT TANK
230
PAD BRAKE ANCHOR 53 MM
230
PAD BRAKE ANCHOR 35.9MM
240
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
240
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
240
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
250
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
