Поз.
Артикул
Описание

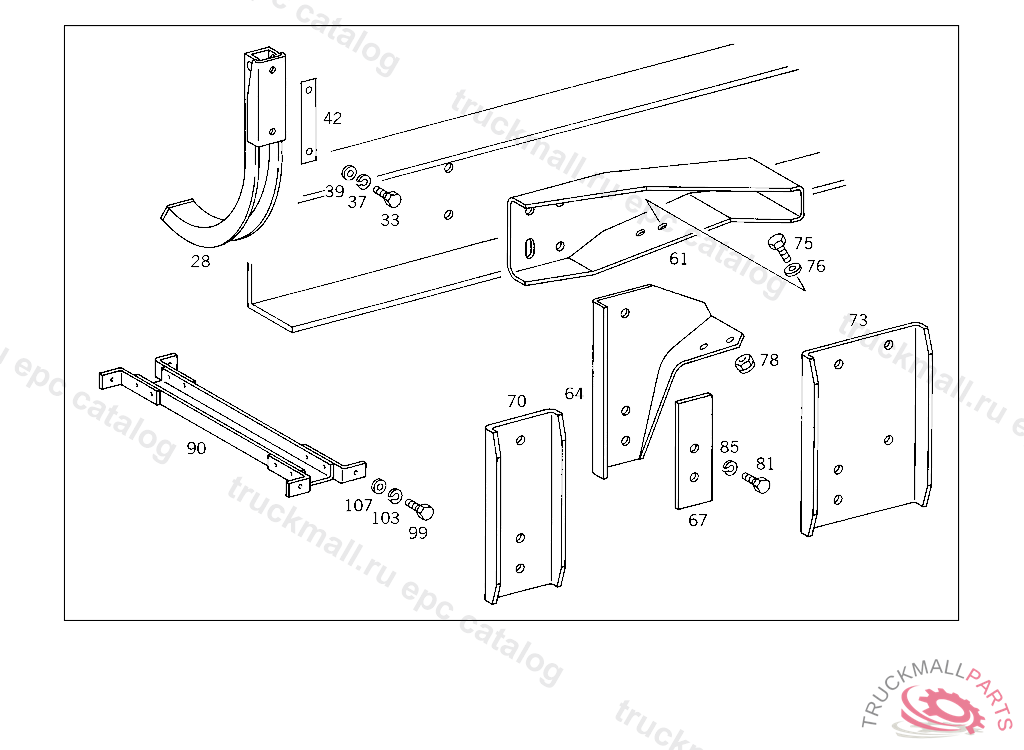

28
SUPPORT FUEL TANK
28
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 931459, Replaced By: A6524701542
28
SUPPORT , Replaced By: A6174704042
33
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
33
SCREW , Replaced By: N308676014020
37
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
39
WASHER BRACKET TO SIDE MEMBER,5 703114
42
SHIM , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 624614, Replaced By: A3834750384
42
SHIM SUPPORT TO SIDE MEMBER
61
REINFORCEMENT AT CROSS MEMBER
64
SHIM AT CROSS MEMBER,4 972491
67
SHIM SUPPORT TO SIDE MEMBER
67
SHIM , Replaced By: A6212850184
67
SHIM FUEL TANK
67
SHIM REINFORCEMENT 173X50X7 MM
70
SHIM , Replaced By: A3834750384
70
SHIM CONSOLE TO SIDE MEMBER
73
SHIM FUEL TANK
73
SHIM FUEL TANK
75
SCREW PIPE CLAMP
75
SCREW SUPPORT TO CROSS MEMBER M 10X28
75
SCREW , Replaced By: N304017008021
76
WASHER , Replaced By: N000125010532
76
WASHER RADIATOR TO RUBBER MOUNTING
78
NUT STRAP TO BRACKET
78
NUT , Replaced By: N910113010000
78
NUT , Replaced By: N913004008001
78
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
81
SCREW BRACKET TO CAB CONSOLE,K 035197
81
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
85
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
90
SUPPORT CONSOLE TO SIDE MEMBER,4 8605904 972492
99
SCREW , Replaced By: N308676014020
99
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
103
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
103
LOCK WASHER SUPPORT TO SIDE MEMBER
107
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
107
WASHER , Replaced By: A4039900040
999
FUEL TANK , Replaced By: A3554700101
999
STRAP ,5 149419, Replaced By: A6204700340, +001N000934012022
999
ELECTRIC CABLE
999
SUPPORT ,4 492432, Replaced By: A3854700442, +001A6204700340, +002N000935012021
999
SUPPORT ,4 829902
999
FUEL TANK , Replaced By: A3834701101, +001N007603014302, +001N007604014106
999
FUEL TANK , Replaced By: A6734701001
999
STRAP ,4 6901025 149419, Replaced By: A6174700440, +001N000934012022
999
STRAP ,4 669107Z5 149419, Replaced By: A6174700340, +001N000934012022
999
WASHER STRAP TO SUPPORT
999
STOP ,969088-4 492432
999
WASHER , Replaced By: A3049970340
999
SENDER UNIT ,4 312465
999
SENDER UNIT FUEL GAUGE,4 316250
999
SENDER UNIT , Replaced By: A0055424117
999
SENDER UNIT ,4 316249, Replaced By: A0045424017, +001A3054760126, +002A3879900078
999
SEAL RING FUEL STRAINER SCREEN
999
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
999
CABLE CONNECTOR BRANCH-OFF TO FUEL GAUGE SENDER UNIT
