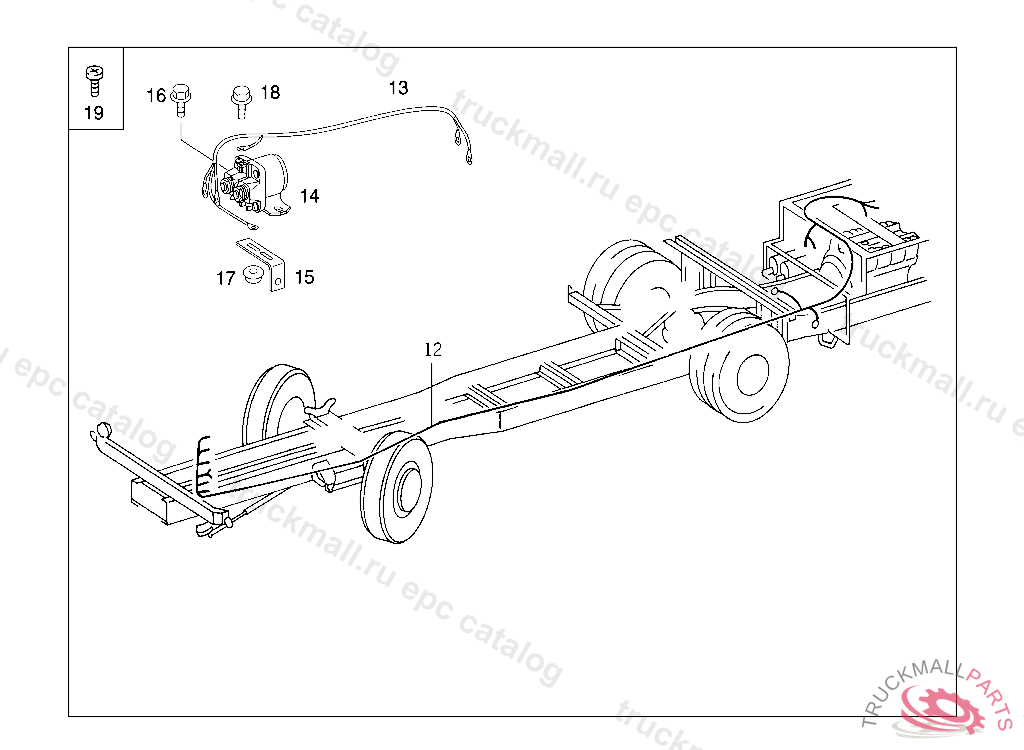

OH 1628 L - 382.073 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

Поз.
Артикул
Описание
12
A3825403108
CABLE HARNESS ,D 124753
12
A3825403208
CABLE HARNESS ,D 124753
12
A3825404605
CABLE HARNESS ,D 177267
12
A3825406608
CABLE HARNESS
12
A3825405009
CABLE HARNESS ,D 124754D 177266
14
A3885457167
CONTACTOR STARTING MOTOR,D 090060
15
A3464295940
BRACKET , Replaced By: A3464296040
16
N910105006004
SCREW , Replaced By: N914146006102
17
N913023006002
NUT BRACKET TO FIRE WALL
18
N914028004100
COMBINATION BOLT ELECTRIC CABLE TO FUSE BOX
999
A0005450485
TERMINAL STOP LIGHT SWITCH
999
A6345450009
SWITCH STOP LIGHT SWITCH,D 383712 PLEASE REFER TO SERVICE INFORMATION NO.: 04/03.
999
A6645457814
SWITCH DECLUTCHING START UNIT
