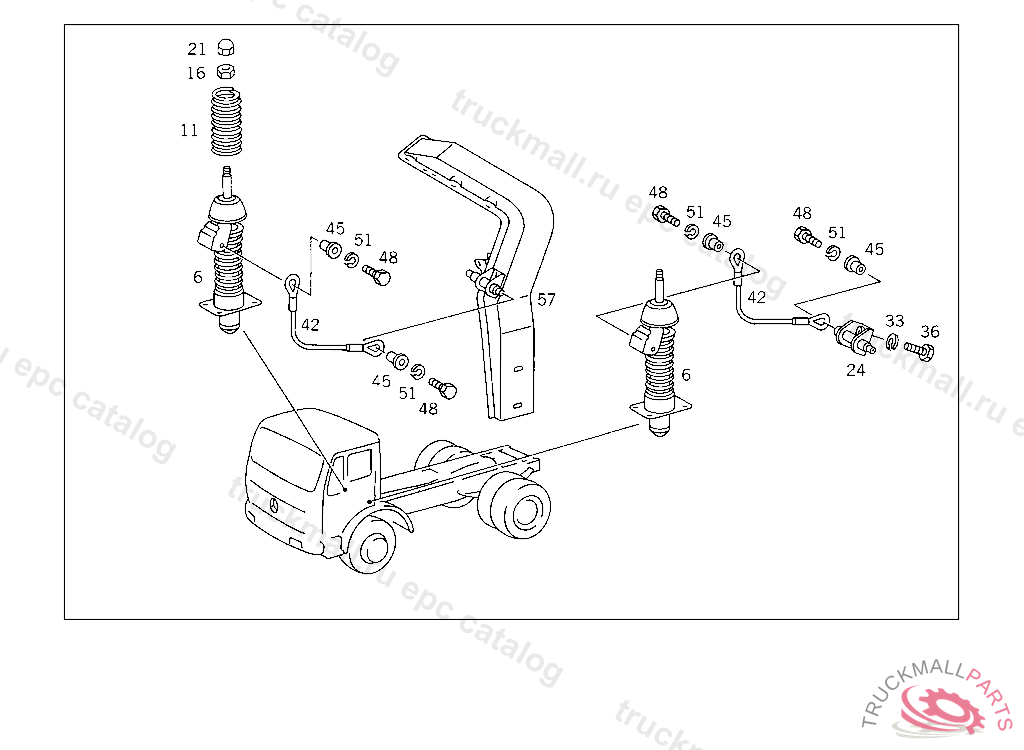

Поз.
Артикул
Описание
6
SHOCK ABSORBER CAB,REAR
6
SHOCK ABSORBER CAB,REAR
11
SPRING
16
NUT BRACKET TO SIDE MEMBER,K 035196
16
NUT , Replaced By: N308673014001
21
CAP NUT SHOCK ABSORBER
24
BRACKET RETAINING ROPE,RIGHT
24
BRACKET RETAINING ROPE,LEFT
33
LOCK WASHER FITTING TO BRACKET
36
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
36
SCREW , Replaced By: N308676012012
42
CABLE
45
BUSHING
48
SCREW REAR EXHAUST PIPE TO MUFFLER
48
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
51
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
57
SUPPORT RESERVOIR
999
FASTENER , Replaced By: A0008902389
