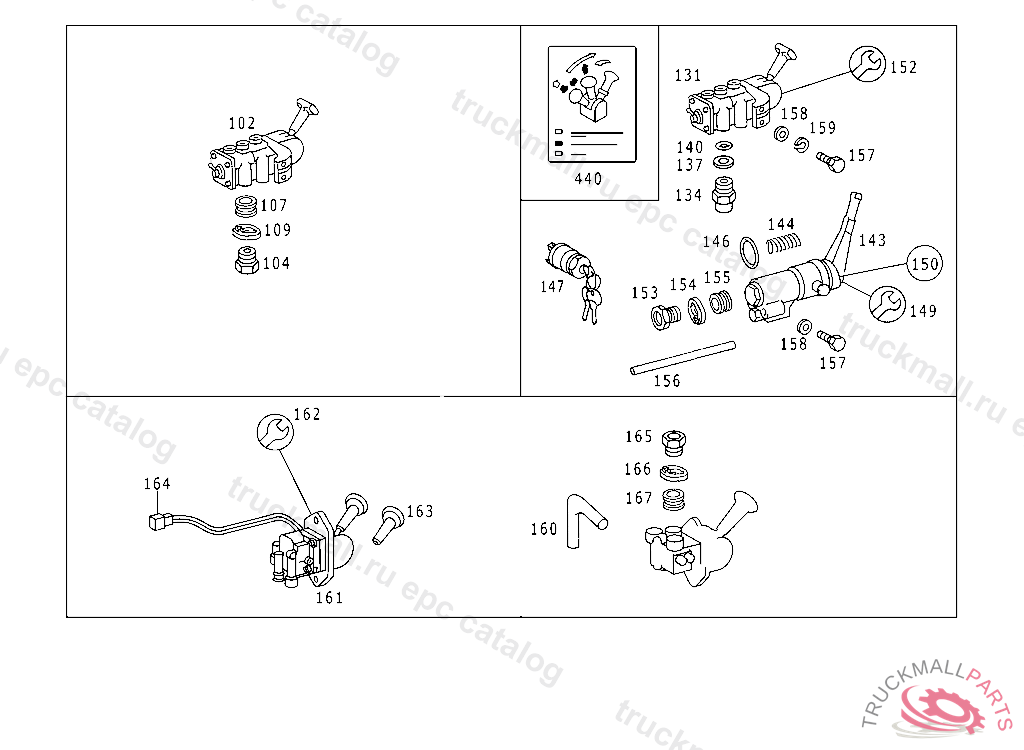

Поз.
Артикул
Описание
102
VALVE (PARKING BRAKE VALVE)
102
VALVE PARKING BRAKE
102
VALVE (PARKING BRAKE VALVE)
104
SCREW. UNION SCREW LINE CONNECTION
107
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
109
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
131
VALVE PARKING BRAKE,TB108828
134
FITTING PARKING BRAKE VALVE
137
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
140
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
143
VALVE (PARKING BRAKE VALVE) WABCO
144
SPRING
146
SEAL RING
147
SWITCH TO 695 430 71 81
149
REPAIR KIT REPAIR KIT TO 695 430 71 81
149
REPAIR KIT REPAIR KIT TO 695 430 71 81
150
PROTECTIVE PLATE PARTS KIT TO 695 430 71 81
150
PROTECTIVE PLATE PARTS KIT TO 695 430 71 81
152
REPAIR KITTO 388 430 77 09,TB108828
152
REPAIR KITTO 388 430 77 09,TB108828
153
SCREW. UNION SCREW , Replaced By: A0009973734
154
LOCK , Replaced By: A0009945448
155
SEAL RING , Replaced By: A0009940747
156
HOSE TRAILER BRAKE VALVE,CONNECTION:
156
HOSE TRAILER BRAKE VALVE,CONNECTION:
157
SCREW PARKING BRAKE VALVE TO INSTRUMENT PANEL,TB108828
157
SCREW PLUG SOCKET TO FRAME
158
WASHER TRAILER PLUG SOCKET TO BRACKET
159
LOCK WASHER RAIL TO BATTERY SUPPORT
160
HOSE WATER SEPARATOR
161
BRAKE VALVE (PARKING BRAKE VALVE)
161
BRAKE VALVE (PARKING BRAKE VALVE)
161
BRAKE VALVE (PARKING BRAKE VALVE)
162
RS PARKING BRAKE VALVETO 693 431 71 05
162
REPAIR KITTO 693 431 71 05, Replaced By: A0004302509
162
REPAIR KITTO 693 431 7205
162
REPAIR KITTO 693 431 7205
163
HANDLETO 693 431 71 05
163
HANDLE PARTS KIT TO 693 431 72 05
164
PLUGTO 693 431 71 05
165
SCREW. UNION SCREW , Replaced By: A0009973734
166
LOCK , Replaced By: A0009945448
167
SEAL RING , Replaced By: A0009940747
440
GUMMED LABEL PARKING BRAKE, NOT USED
999
REPAIR KITTO 003 431 35 05,TB108828
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
REPAIR KIT TRAILER CONTROL VALVE "WABCO"
999
VALVE
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
VALVE (PARKING BRAKE VALVE) WABCO
999
ELECTRIC CABLE PARTS KIT TO A 693 431 72 05
999
TRAILER CONTROL VALVE (TRAILER CONTROL VALVE) "KNORR"
999
BRAKE VALVE (TRAILER CONTROL VALVE) "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
FITTING LINE CONNECTION
999
VALVE (PARKING BRAKE VALVE)
999
VALVE (PARKING BRAKE VALVE)
999
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
999
CONNECTOR9MM / M22X1,5 / VOSS 230, Replaced By: A0019909571, +001A0009940147, +001A0009941448, +001A0009970934
999
PLUG TO PLUG THE FREE CONNECTIONS,K 063043
999
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
999
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
999
PLUG SOCKET SEE GROUP 54,FIG.NO.:
999
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
999
GLAND LINE CONNECTION
999
SCREW-IN FITTING ,D 091465
999
SEAL RING LINE CONNECTION
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RINGTO 006 997 00 72
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
UNION NUT LINE CONNECTION
999
HOLLOW SCREW , Replaced By: N915036010108
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
BANJO UNION HEATING CONNECTION,K 169122
999
SLEEVE LINE CONNECTION
