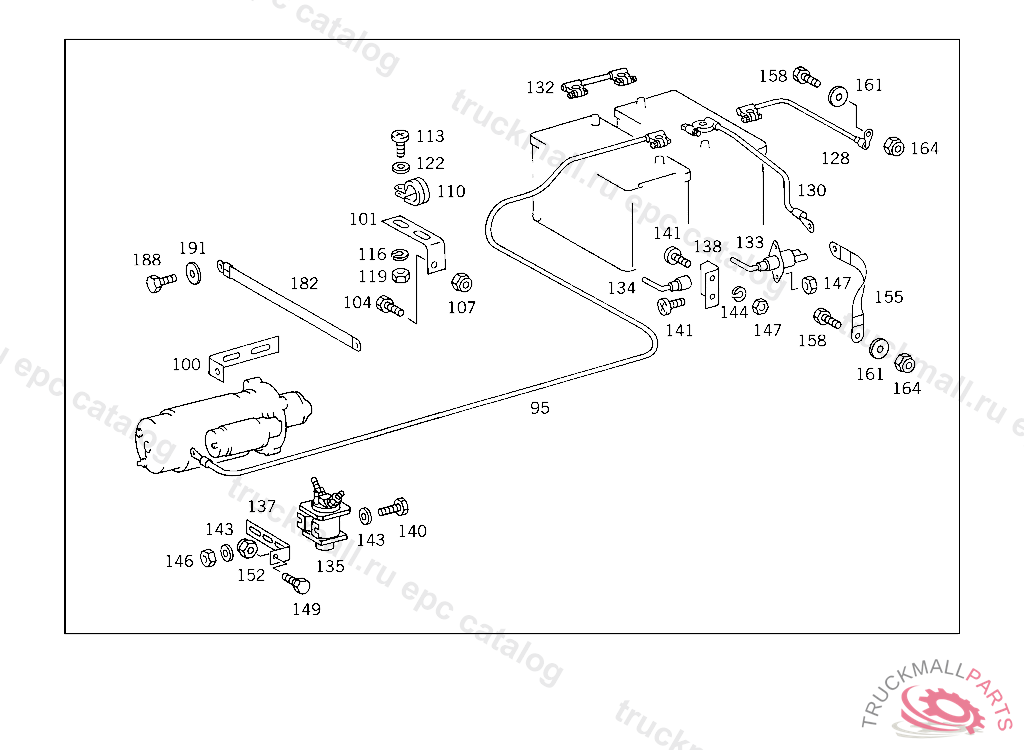

Поз.
Артикул
Описание
95
POSITIVE CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
100
BRACKET FUEL LINE
101
BRACKET , Replaced By: A3464296040
104
SCREW , Replaced By: N304017010040
107
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
110
CLAMP ELECTRIC CABLE TO BRACKET 20/15
110
CLAMP PIPE ON FAN SHROUD
113
SCREW CABLE TO ALTERNATOR
116
LOCK WASHER CABLE TO FUSE BOX
119
NUT
122
WASHER PLUG SOCKET TO BRACKET
128
NEG. CABLE BATTERY NEG. CABLE TO FRAME SIDE MEMBER
132
POSITIVE CABLE FROM BATTERY I TO BATTERY II,D 053999
132
POSITIVE CABLE FROM BATTERY I TO BATTERY II
133
SWITCH BATTERY CUT-OFF
133
SWITCH BATTERY CUT-OFF
134
KEY
135
CONTACTOR , Replaced By: A3885457067
135
CONTACTOR STARTING MOTOR RELAY
135
CONTACTOR STARTING MOTOR,D 090060
137
BRACKET BATTERY CABLE
138
BRACKET SWITCH TO BATTERY SUPPORT
140
SCREW BRACKET MOUNTING
141
SCREW MODULE TO HOUSING
143
WASHER FUSE TO FUSE BOX
144
LOCK WASHER CABLE TO FUSE BOX
146
NUT
147
NUT
149
SCREW ANGLE TO CROSS MEMBER M 10X30
152
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
155
GROUND STRAP FROM STARTING MOTOR TO SIDE MEMBER
158
SCREW ANGLE TO CROSS MEMBER M 10X30
161
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
164
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
182
GROUND STRAP FROM FRAME TO CAB
188
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
191
WASHER GROUND CABLE
999
CABLE SHOE
999
COVER
