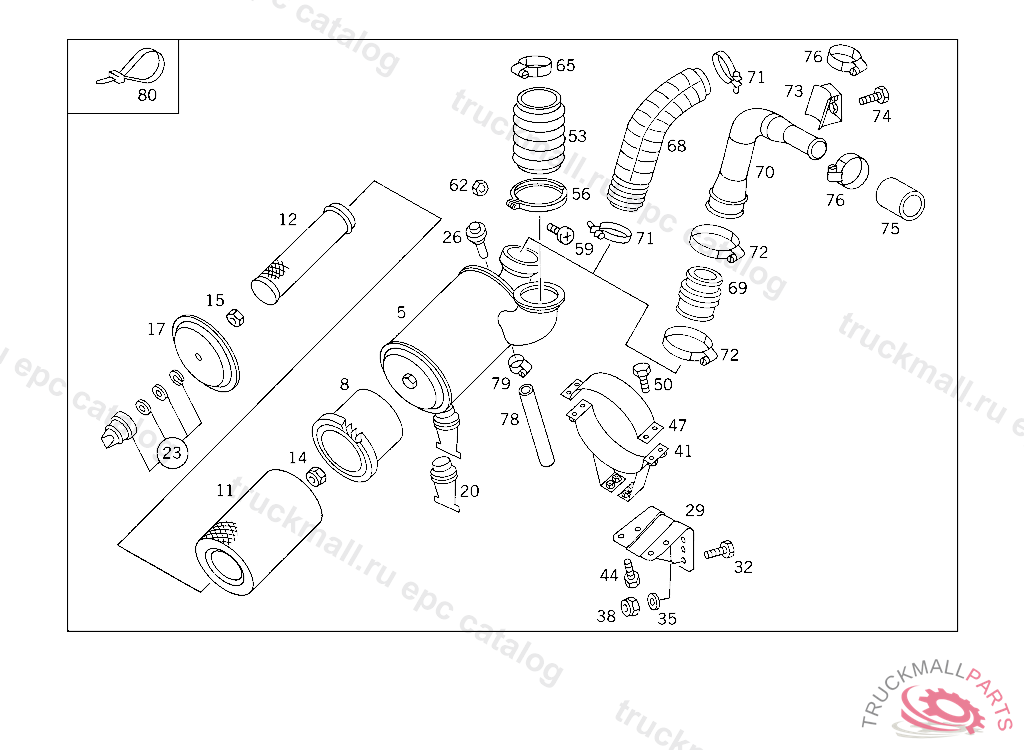

Поз.
Артикул
Описание
5
AIR CLEANER
5
AIR CLEANER
5
AIR CLEANER
8
FILTER BOWL TOP TO 386 090 80 01
11
FILTER ELEMENTTO 394 094 70 01
11
FILTER ELEMENTTO A 376 090 81 04
14
NUT REPAIR KIT TO A 688 094 70 02,71 02,72 02,73 02,
20
VALVETO 376 090 96 01
23
NUT PARTS KIT TO 386 090 81 01
26
SWITCH INCLUDED IN RANGE OF DELIVERY OF: TO 376 090 98 04
29
BRACKET AIR CLEANER,FRONT RIGHT
32
SCREW BRACKET TO SIDE MEMBER
35
WASHER
38
NUT BRACKET TO SIDE MEMBER
41
STRAP
44
SCREW LINES TO BRACKET
47
STRAP AIR CLEANER
50
SCREW , Replaced By: A4609900601
53
BOOT AIR CLEANER
53
BOOT AIR CLEANER
56
CLAMP BELLOWS TO AIR CLEANER
59
SCREW CONTROL UNIT TO BRACKET M 4X12
62
NUT AIR INTAKE PIPE TO AIR INTAKE PIPE,937184
65
CLAMP , Replaced By: N000000000678
65
LOOM TIE
69
HOSE FROM MUFFLER TO AIR INTAKE PIPE
71
CLAMP , Replaced By: N000000000678
71
LOOM TIE
78
HOSE AIR INTAKE PIPE
79
CLAMP HOSE TO AIR CLEANER AND TO AIR COMPRESSOR
79
CLAMP ,B 862667
80
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
999
COVERTO 386 090 88 01
